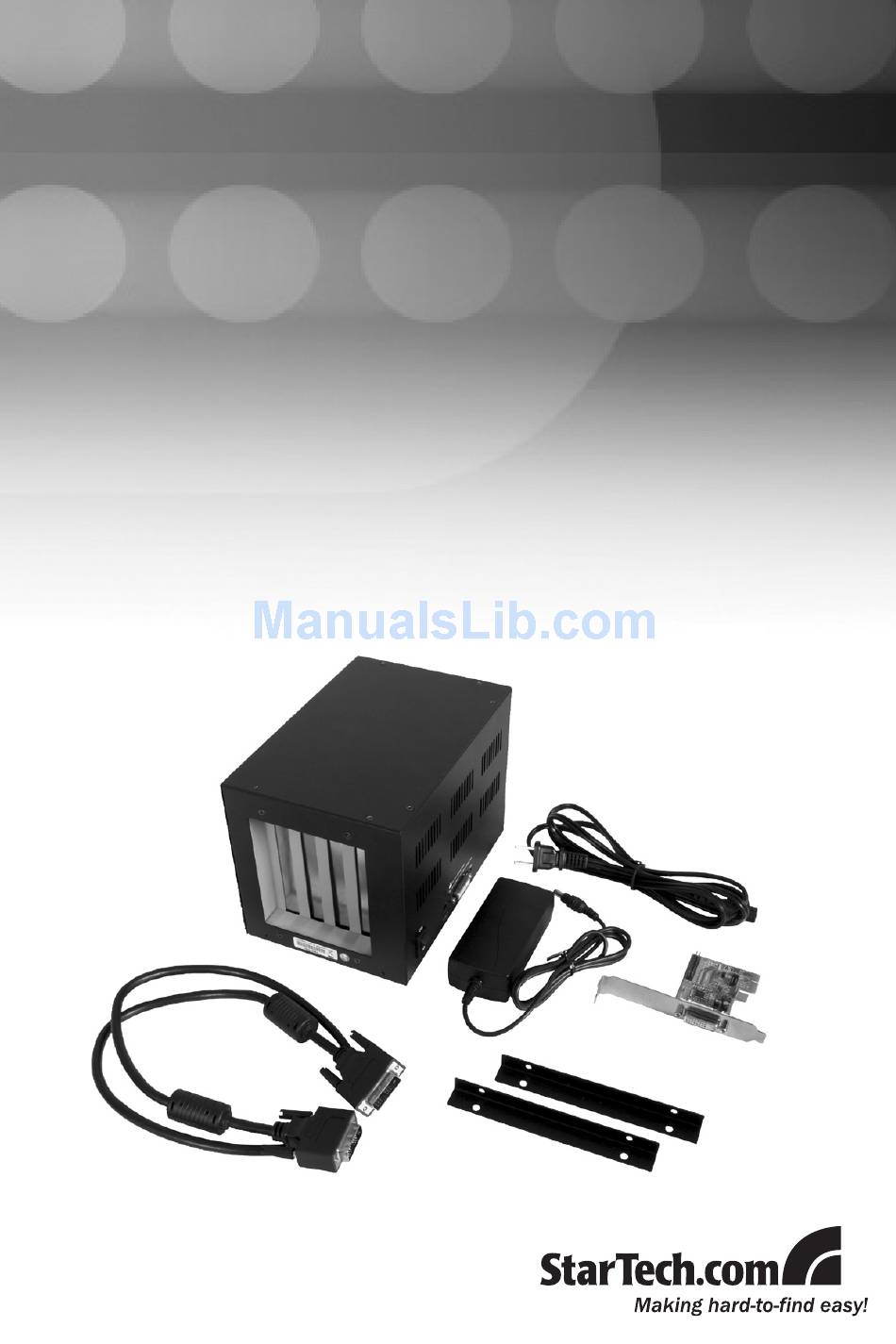

- Page 1 PCI Expansion Bay PEX2PCI4...
- Page 2 Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowl-...
-
Page 3: Table Of Contents
Package Contents ...............1 Installation ..................2 Using the PCI Express Adapter (typical) ........2 Using the ExpressCard Host Adapter Card ........4 Software Installation ..............5 Specifications ................7 EC2PCI (optional)................7 Accessory Products from StarTech.com ........8 Technical Support ................. 9 Warranty Information ..............9... -
Page 4: Introduction
Instruction Manual Introduction Thank you for purchasing a StarTech.com PCI Express to Four Slot PCI Expansion Bay. This product allows you to add PCI expandability to your computer, using an available PCI Express or ExpressCard* slot, helping to bridge the gap between older PCI expansion cards and motherboards with newer interface capabilities. -
Page 5: Installation
Instruction Manual Installation WARNING: PEX2PCI4 uses a DVI interface to connect the the PCI Express and PCI components. When connecting the PCI expansion board to the PCI Express card, please ensure that the DVI port provided by PEX2PCI4 is not confused with a DVI port provided by the computer video card, as this could damage the video card, as well as the PCI Express expansion card and PCI expansion slot board. - Page 6 Instruction Manual Turn OFF the computer power before installation, and remove the chassis cover from the computer. Similarly, ensure the PEX2PCI4 is not powered at this time. Since both the PC system and the Expansion Box are self-powered, you need to follow the correct ON/OFF sequence as follows: Power Off Sequence: Power off your PC system, then the Expansion Power On Sequence: Power on the Expansion Box first, then power on your PC system.
-
Page 7: Using The Expresscard Host Adapter Card
Instruction Manual Turn on the Expansion Box power using the power switch next to the Expansion Cable, then power on the PC system. Once the Expansion Box has successfully been connected to the host computer, proceed to the section titled Software Installation. Using the ExpressCard Host Adapter Card The following diagram is a visual depiction of the instructions on the following page, which account for installation of the PEX2PCI4 using the... -
Page 8: Software Installation
Instruction Manual the correct ON/OFF sequence as follows: Power Off Sequence: Power off your PC system, then the Expansion Power On Sequence: Power on the Expansion Box first, then power on your PC system. Open the top cover of the PEX2PCI4 Expansion Box by removing the screws. - Page 9 Instruction Manual please install the ExpressBooster software supplied with your card. Setup.exe file found on the driver CD. Assuming that E: is Locate the the designation for your CD/DVD-ROM drive, double-click on E:\Utility\ ExpressBooster to launch the setup program. Follow the setup on-screen instructions; ensure that there is a checkmark next to PCI Express Card for Desktops/Servers only (leave the “ExpressCard”...
-
Page 10: Specifications
Instruction Manual Specifications Bus Type Connectors PCI Expansion Box: 1 x DVI D (dual link) Female Connector PCI Express Card: 1 x DVI D (dual link) female connector Form Factor PCI Express (x1) Power Adapter 1 x 12V DC, 3 Amp OS Support Windows 2000/2003/XP/ Vista Regulatory Certifications... -
Page 11: Accessory Products From Startech.com
Instruction Manual Accessory Products from StarTech.com Contact your local StarTech.com dealer or visit www.startech.com for cables or other accessories that will help you get the best performance out of your new product. EC2PCI - ExpressCard Connection Cable For PEX2PCI4 PEX2EC - PCI-Express to ExpressCard Adapter... -
Page 12: Technical Support
