4-Bay 2.5in SATA/SAS Hard Drive Backplane
SATSASBP425
*actual product may vary from photos
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 01/09/2015
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for StarTech.com SATSASBP425
Summary of Contents for StarTech.com SATSASBP425
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 01/09/2015...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 3: Table Of Contents
Table of Contents Product Diagram ..................1 Front View ..............................1 Rear View ..............................1 Introduction ....................2 Packaging Contents ..........................2 System Requirements ..........................2 Installation ....................3 Hardware Installation ..........................3 Hard Drive Installation ................4 Hard Drive Removal ..........................6 How to Use ....................7 Connecting the Hard Drive ........................ -
Page 4: Product Diagram

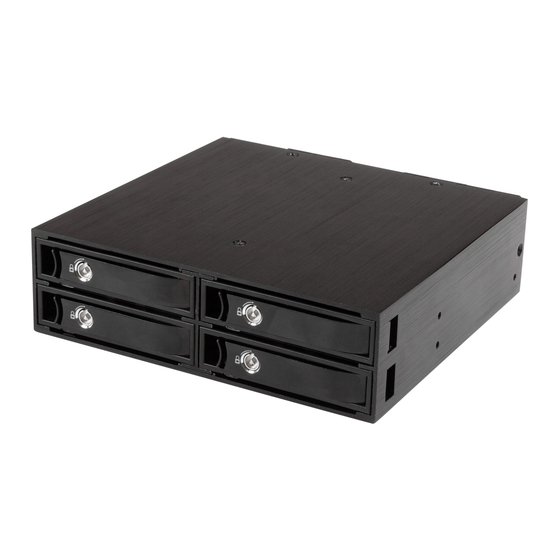

Product Diagram Front View 1. 4x 2.5” Drive bays/trays 2. 4x 2.5” Drive bay key hole 3. 4x Drive Tray Release Latches Rear View 1. 2x Drive power connector ports (LP4) 2. 4x SATA data connector ports 3. 2x Drive cooling fans Instruction Manual... -
Page 5: Introduction
Introduction Packaging Contents • 1x 4-Bay 2.5in SATA/SAS Hard Drive Backplane • 2x Drive bay keys • 4x 2.5” HDD/SSD Drive Trays • 4x SATA cables • 2x SATA to Molex Power Adapters • 16x Drive Mounting Screw Kit • 8x Backplane Mounting Screw Kit •... -
Page 6: Installation
WARNING! Hard drives and storage docks require careful handling, especially when being transported. If you are not careful with your hard disk, lost data may result. Always handle your hard drive and storage device with caution. Be sure that you are properly grounded by wearing an anti-static strap when handling computer components or discharge yourself of any static electricity build-up by touching a large grounded metal surface (such as the computer case) for several seconds. -
Page 7: Hard Drive Installation
Hard Drive Installation 1. Insert either of the included bay keys into the your desired 2.5in Drive bay key holes depending on which tray you intend to install the drive into. And Turn the key clockwise into the unlock position. 2. - Page 8 4. Slide the drive tray with installed hard drive back into the slot and close the door. 5. (Optional) If you would like to lock the drive door for added security, use the key to turn the key counter clockwise into the locked position. Instruction Manual...
-
Page 9: Hard Drive Removal
Hard Drive Removal 1. Insert either of the included bay keys into the “2.5in Drive bay key holes depending on which type of drive you intend to remove. And Turn the key clockwise into the unlock position. 2. Pull the drive door handle to open the drive bay and remove your drive. Note: It is important to eject or unmount the hard drive from your computer system before physically removing the drive. -
Page 10: How To Use
How to Use Connecting the Hard Drive Once the drive has been installed in the drive bay, the drivers will install automatically, and the inserted drive will be accessible as though it were installed within the system. Note: some operating systems may require that the system be scanned for hardware changes from within device manager, for the newly connected drive(s) to be recognized. - Page 11 2. A dialog window should automatically appear, asking you to initialize the drive. Depending on the version of Windows, it will give you the option of either creating an “MBR” or “GPT” disk. GPT (GUID partition) is required for drives larger than 2TB but is not compatible with some older operating systems, while MBR is supported by newer and older operating systems.
-
Page 12: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 13 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
