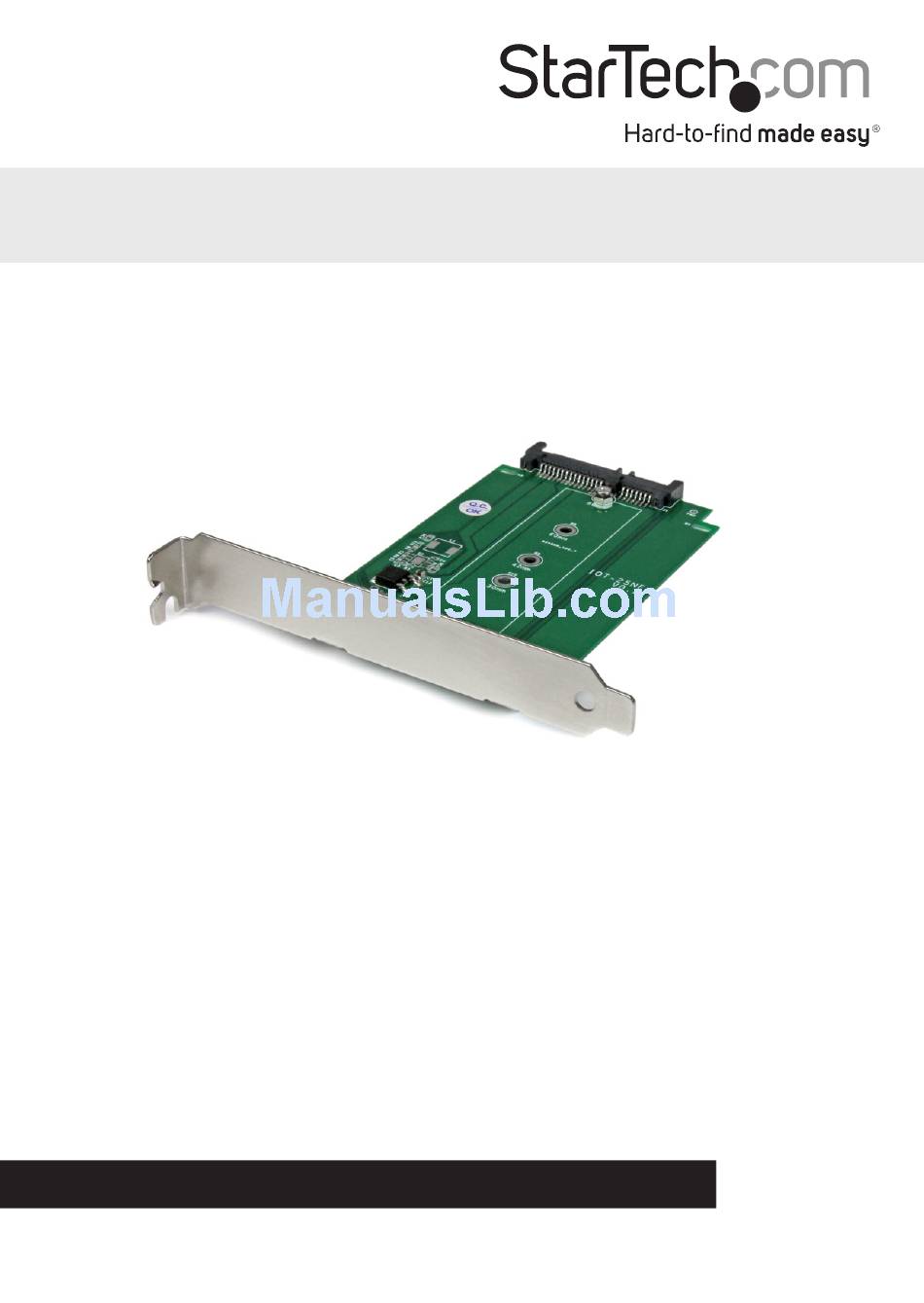

SATA to M.2 NGFF SSD Adapter with
Expansion Slot Mounting
S32M2NGFFPEX
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 11/03/2014
*actual product may vary from photos
Advertisement
Table of Contents
Related Manuals for StarTech.com S32M2NGFFPEX
Summary of Contents for StarTech.com S32M2NGFFPEX
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 11/03/2014...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 3: Table Of Contents
Table of Contents Introduction ....................1 System Requirements ..........................1 What’s in the Box ............................1 Product Diagram ..................2 Front View ..............................2 Rear View ..............................2 M.2 NGFF SSD Installation ..............3 System Installation Preparation ............7 System Installation ................10 Hard Drive Initialization ................11 Technical Support ..................12 Warranty Information ................12 Instruction Manual... -
Page 4: Introduction
Introduction System Requirements • M.2 NGFF SSD Drive • Computer System with: -Available Low profile or full profile Expansion slot (PCI or PCI Express) -Available SATA port on the motherboard -Available SATA Power connector on the power supply What’s in the Box •... -
Page 5: Product Diagram
Product Diagram Front View 1. Mounting Bracket (Full profile pictured) Rear View 1. M.2 NGFF connector 2. SSD Mounting holes 3. SSD standoff and installation screw 4. SATA Power Port 5. SATA Data Port Instruction Manual... -
Page 6: M.2 Ngff Ssd Installation
M.2 NGFF SSD Installation WARNING: SSD Drives and storage adapters require careful handling. If you are not careful with your SSD Drive, lost data may result. Always handle your drive with caution. Be sure that you are properly grounded by wearing an anti-static strap when handling computer components or discharge yourself of any static electricity build-up by touching a large grounded metal surface (such as the computer case) for several seconds. - Page 7 2. (Only required if the drive installation screw and standoff requires relocating) Remove the nut holding the SSD standoff in place on the reverse side using a small 5mm wrench/nut driver, or needle nosed players (not included). 3. (Only required if the drive installation screw and standoff requires relocating) Remove the SSD installation standoff, and reseat it into the drive installation hole that matches your SSD.
- Page 8 SSD installation standoff. 5. Slide the M.2 connector on the SSD into the M.2 receprical connector on the S32M2NGFFPEX. Note: The connector on your M.2 SSD is keyed so the drive will only fit one way. Instruction Manual...
- Page 9 6. Press the drive down toward the SSD standoff, and drive the removed screw through the mounting hole on your SSD drive and into the SSD standoff using the included Philips head screw driver. 7. The SSD has now been installed, and is ready for system installation. Instruction Manual...
-
Page 10: System Installation Preparation
Select the bracket that corresponds with your type of computer system. (See Bracket Installation) The S32M2NGFFPEX can be installed in an available PCI slot, or a PCI Express slot. If you intent to install the adapter into a PCI slot, the PCI standoffs must be used. - Page 11 S32M2NGFFPEX. 3. Drive the screws through the bracket holes on the S32M2NGFFPEX into the mounting holes on your desired bracket using a Philips head screw (not included, included screw driver is too small).
- Page 12 3. Using a Philips head screw driver (not included, included screw driver is too small) Drive the screws through the bracket holes on the S32M2NGFFPEX and into the PCI slot standoffs, that are now installed in the bracket.
-
Page 13: System Installation
1. Open your computer case (refer to the computer case user manual for details), and place the S32M2NGFFPEX with installed M.2 NGFF SSD into an available expansion slot. 2. Using a computer case screw (not included) and the appropriate corresponding screw driver (not included). -
Page 14: Hard Drive Initialization
Hard Drive Initialization If the M.2 NGFF SSD is new or otherwise blank, it may need to be initialized and formatted before use. Follow the steps below in a Windows interface to initialize the drive. 1. From the main Windows desktop, right-click on “My Computer” (“Computer” in Vista/ 7 / 8), then select Manage. -
Page 15: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 16 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
