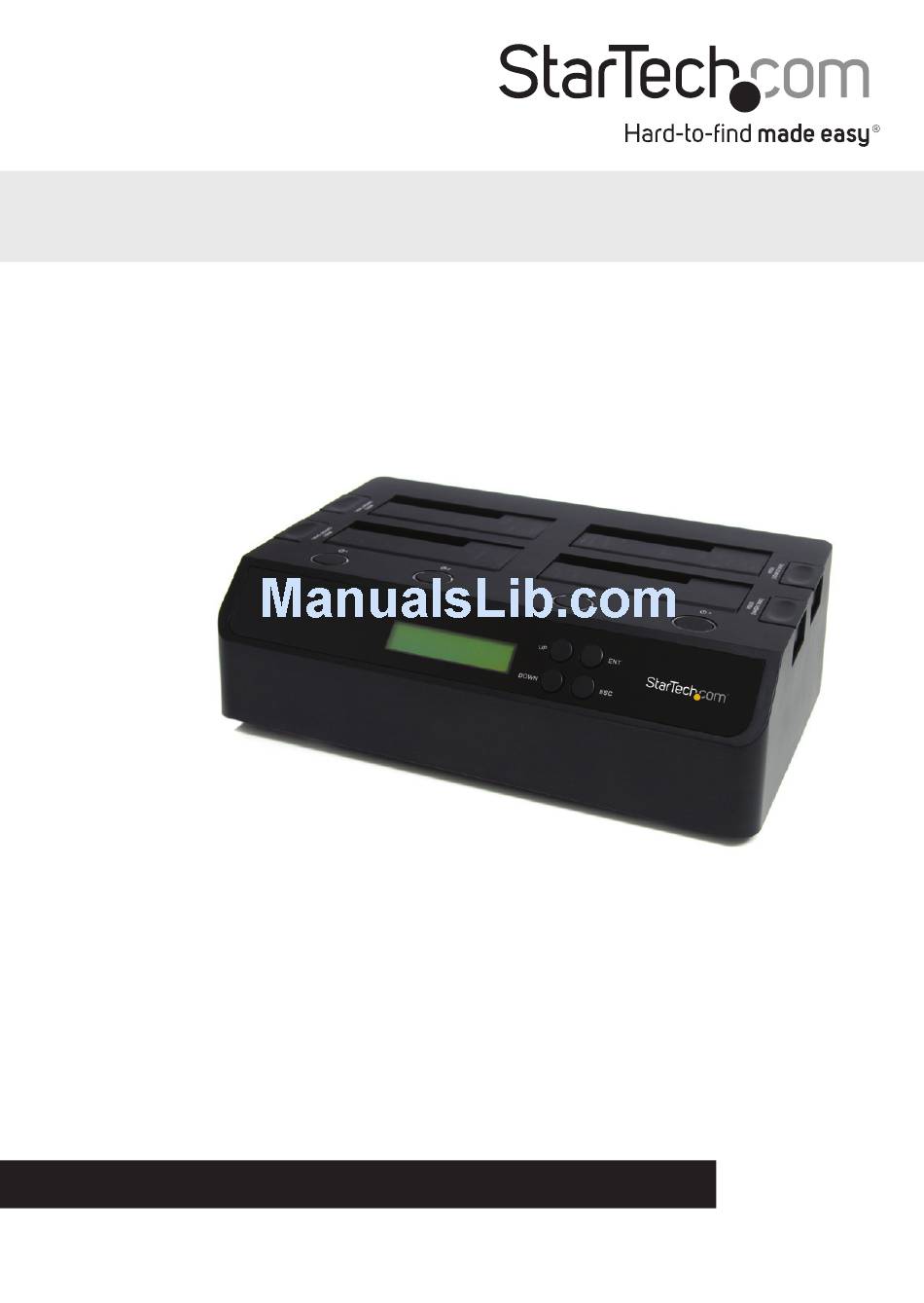

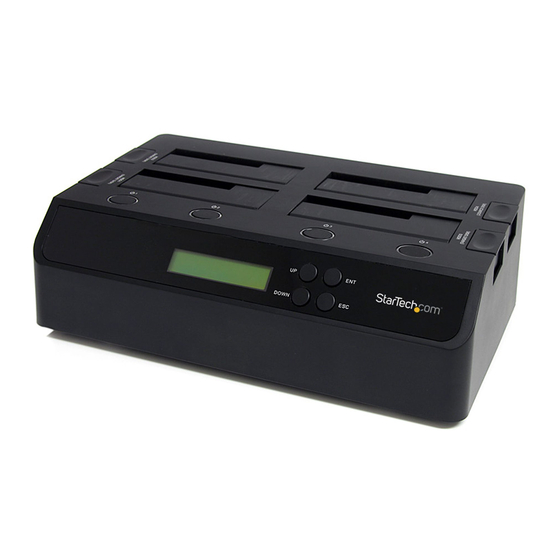

4 Bay 1:3 USB 3.0/eSATA to SATA/IDE
Standalone Hard Drive Duplicator Dock
SATDOCK4U3RE
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 04/05/2011
*actual product may vary from photos
Advertisement
Table of Contents
Related Manuals for StarTech.com SATDOCK4U3RE
Summary of Contents for StarTech.com SATDOCK4U3RE
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 04/05/2011...
-
Page 2: Fcc Compliance Statement
StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby... -
Page 3: Table Of Contents
Table of Contents Introduction ....................1 Packaging Contents ..........................1 System Requirements ..........................1 Front View ..............................2 Rear View ..............................2 Installation ....................3 Hardware Installation (Docking Station/PC Mode) ............... 3 Hardware Installation (Duplicator) ..................... 4 Driver Installation ............................4 How to Use ....................5 Menu Options ............................. -
Page 4: Introduction
Introduction The SATDOCK4U3RE USB 3.0 and eSATA Standalone 1-to-3 Hard Drive Duplicator allows for a single SATA hard drive to be duplicated/cloned on up to three other SATA drives simultaneously. It can also function as a regular 4-bay hard drive docking station by connecting to a host computer system. -
Page 5: Front View
Front View Rear View Instruction Manual... -
Page 6: Installation
Installation WARNING! Hard drives and storage enclosures require careful handling, especially when being transported. If you are not careful with your hard disk, lost data may result. Always handle your hard drive and storage device with caution. Be sure that you are properly grounded by wearing an anti-static strap when handling computer components or discharge yourself of any static electricity build-up by touching a large grounded metal surface (such as the computer case) for several seconds. -
Page 7: Hardware Installation (Duplicator)
Hardware Installation (Duplicator) 1. Connect the external power adapter from the hard drive docking station to an AC power outlet. 2. Insert 2.5” or 3.5” hard drive(s) into the top loading drive bay(s). The drive containing the data to copy (Source) needs to be inserted into the “Source” bay (HDD4). Make sure that the SATA connectors on the hard drives are facing the same corner of the drive bay that has the 2.5in cutout in the door. -
Page 8: How To Use
How to Use Menu Options 1. Copy HDD Perform a 1:1 sector clone from the Source disk to the Destination disks. Each disk sector on the Source disk will be copied, regardless if it contains data or not. If using a Destination disk larger than the Source, any extra space will be untouched and left unallocated. -
Page 9: Duplicator (Copy) Mode
5. Setup 5-1. Auto Compare Automatically runs the Compare HDD function after copying. OFF by default. 5-2. Button Sound Turn audio feedback (beeping) ON/OFF. OFF by default. 5-3. Device Info Lists information about the Source/Destination disks. 6. PC Mode Returns the Duplicator to Docking Station mode. 7. -
Page 10: Specifications
Specifications Hard Drive Bays SuperSpeed USB 3.0 Host Interface SATA revision 2.x Chipset ID JMicron JMB394 + JMS539 1 x USB 3.0 type B female External Connectors 1 x eSATA female* 1 x DIN (4-pin) Power female LEDs 4 x Power/Activity Fans 2 x 60mm Insertion Rating... -
Page 11: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 12 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
