Summary of Contents for StarTech.com SATSASBAY3BK

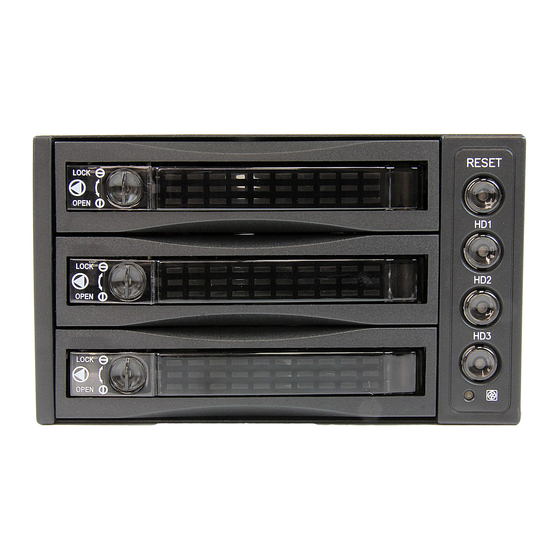

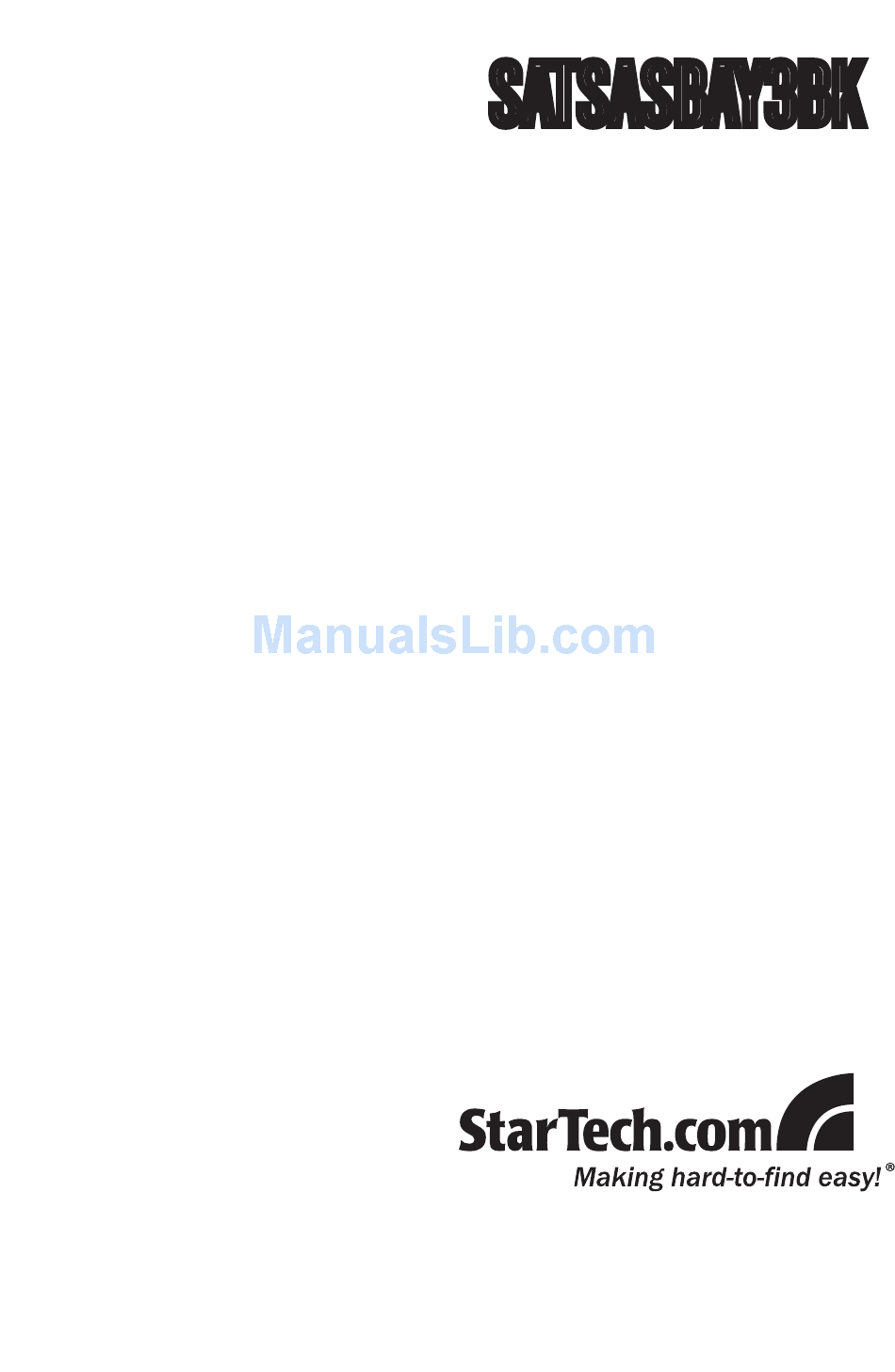

- Page 1 SATSASBAY3BK Instruction Manual SATA and SAS Hard Drive Backplane 3 Drive 3.5” Removable SATA/SAS Mobile Rack Backplane...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an en- dorsement of the product(s) to which this manual applies by the third-party company in question.
-
Page 3: Table Of Contents
Table of Contents Introduction ..............1 Packaging Contents..............1 System Requirements ..............1 Installation ............... 2 Hardware Installation ..............3 Driver Installation .................4 Using Your Backplane ............. 4 Specifications ..............5 Technical Support ............6 Warranty Information ............6... -
Page 4: Introduction
Introduction Packaging Contents • 1 x SATSASBAY3BK backplane • 3 x 7-pin SATA cables • 1 x Screw Kit • 1 x Instruction Manual System Requirements • 2 adjacent 5.25” front bays • 3 available SATA/SAS ports on the hard drive controller •... -
Page 5: Installation
Installation Rear View LP4 molex power 7-pin SATA/SAS 7+15 pin Fan Speed SATA/SAS switch Front View Reset button Power LED/ Button Fan LED Lock and Tray Release... -
Page 6: Hardware Installation
(HDD) ports on the back of the backplane to your SATA or SAS controller. NOTE: Some SAS controller cards use an SFF-8484 or SFF-8087 connector. A special breakout cable to 7-pin SATA connectors would be required to plug into the backplane (ie. StarTech.com ID: SAS84SS450). -
Page 7: Driver Installation
either the 15-pin SATA or 4-pin LP4 To power the backplane, use molex connectors from your power supply. If you use the LP4 molex connectors, the power will automatically be converted to SATA power. Both types of power connectors do not need to be plugged Driver Installation No driver installation is required for any operating system, as this backplane is only a passthrough for the hard drives, so it is not seen by... -
Page 8: Specifications
Specifications SATA 3.0Gb/s Bus Interface SAS 3.0Gb/s 3 x 7-pin SATA/SAS Rear Connectors 2 x LP4 molex power 2 x 15-pin SATA power 3 x Hard Drive Power/Activity LEDs 1 x Reset 1 x Fan Status Fans 1 x 80mm (ball bearing) Maximum Data Transfer Rate 3.0 Gbps 3.5”... -
Page 9: Technical Support
Technical Support StarTech.com’s lifetime technical support is an integral part of our com- mit-ment to provide industry-leading solutions. If you ever need help with your product, visit www.startech.com/support and access our com- prehensive selection of online tools, documentation, and downloads. - Page 10 StarTech.com has been making “hard-to-find easy” since 1985, providing high quality solutions to a diverse IT and A/V customer base that spans many channels, including government, education and industrial facilities to name just a few. We offer an unmatched selection of computer parts, cables, A/V products, KVM and Serv-...
