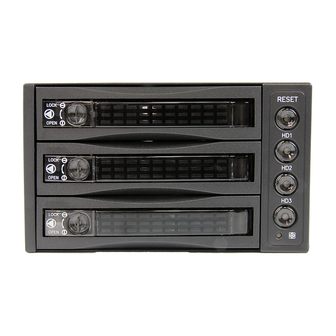

- Page 1 S S A A T T A A B B A A C C K K P P L L A A N N E E Serial ATA Backplane SATABAY3 SATABAY3BK SATABAY4 Instruction Guide SATABAY4BK * SATABAY3 shown * Actual product may vary from photo The Professionals’ Source For Hard-to-Find Computer Parts...
- Page 3 Table of Contents Introduction ............2 Installation .
- Page 4 Introduction Thank you for purchasing a StarTech.com Serial ATA backplane. The perfect solution for building hot-swappable Serial ATA RAID arrays, these backplanes can support up to three (SATABAY3, SATABAY3BK) or four (SATABAY4, SATABAY4BK) Serial ATA 150 3.5” inch drives, each in their own independent removable drive drawer. An 8 cm rear fan ensures plenty of air movement over the drives to maintain ideal operating temperatures.
-
Page 5: Using Your Backplane
Installation 1. Remove one of the drive trays by pressing on the left side of the drive tray. This will cause the tray’s arm to swing out. Hold the arm and pull the tray out. 2. Place the hard drive into the tray. Line up the holes in the bottom of the tray with the holes in the bottom of your drive. -
Page 6: Technical Specifications
Technical Specifications SATABAY3 SATABAY4 SATABAY3BK SATABAY4BK HD Compatibility 3.5” Serial ATA 150 HD Supported Connectors 3 x 7-pin SATA 4 x 7-pin SATA 2 x 15-pin SATA 2 x 15-pin SATA 2 x 4-pin LP4 2 x 4-pin LP4 Drive Connection... -
Page 7: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 8 Revised: March 1, 2004...
