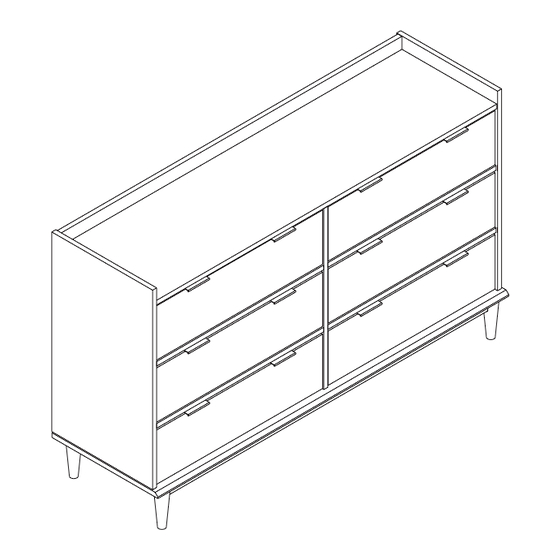

Item: LEEBD-T
Assembly Instructions
Please visit our website for the most current instructions, assembly tips, to report damage
or request parts. www.walkeredison.com
Copyright © 2018, by Walker Edison Furniture Co., LLC,
Copyright © 2018, by W
alker Edison Furniture Co., LLC, All rights reserved.
Revised 05/2024-V2
All rights reserved.
P.1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Lee LEEBD-T and is the answer not in the manual?

Questions and answers

Summary of Contents for Walker Edison Lee LEEBD-T

  • Page 1 Please visit our website for the most current instructions, assembly tips, to report damage or request parts. www.walkeredison.com Revised 05/2024-V2 Copyright © 2018, by W Copyright © 2018, by Walker Edison Furniture Co., LLC, alker Edison Furniture Co., LLC, All rights reserved. All rights reserved.
  • Page 2 A phillips head screwdriver, hammer and tape measure is required for the assembly of this product.
  • Page 3: Parts List

    Parts List The side drawer with WARNING LABEL, should be mou ted in highest drawer. Description Description Part # Part # Top panel 0 pc Front rail 0 pc Left side panel 0 pc Division 0 pc Right side panel 0 pc Top rail 0 pc...
  • Page 4: Hardware List

    Hardware List 57 pcs Ø8*30mm Wood dowel 12 pcs Ø8*40mm Wood dowel 36 pcs Ø10*20mm Wood dowel 24 pcs Ø3,0*12mm Screw 05 pcs Ø3,5*20mm Screw 36 pcs Screw Ø4,0*25mm 29 pcs Ø4,0*30mm Screw 27 pcs Ø4,0*40mm Screw 12 pcs Handle 43 pcs Ø8,0*31mm Cam bolt...
  • Page 5 Step 1 Attention to the dowel size: Ø10*20mm Insert ood dowel ( ) into part Ø10*20mm Step 2 Insert wood dowel (A) into part s 1, 2 3, 14, 15, 16, 23, 24 and 36. Ø8*30mm...
  • Page 6 Step 3 Secure parts 17 to part 2, 3 and 15 with screw (F) and head screwdriver. Ø4,0*25mm...
  • Page 7 Step 4 1 - Ensure cam bolt is installed straight and not at an angle. 2 -Tighten cam bolt until shoulder on cam bolt is flush. Do not over-tigh- ten. Screw cam bolts (K) into parts 1, 2, 3, 8 and 15 with a head screwdriver.
  • Page 8 Step 5 Secure part 16 to part 1 with screw (G) and head screwdriver. Ø4,0*30mm Step 6 Align the opening in cam lock to the cam bolt and press into opening. Using a screwdriver, rotate the cam lock until it engages with the cam bolt and locks in place (anywhere between 90-180 degrees).
  • Page 9 Step 7 Secure part 14 to part 15. Insert cam locks (L) into part 14, and tighten with a head screwdriver. Ø15*11mm Step 8 Secure part 1, 14 and 16 to part 2. Insert cam locks (L) into part 1, 14, 16, and tighten with a head screwdriver.
  • Page 10 Step 9 Secure part 1 and 14 to part 3. Insert cam locks (L) into part 1, 14, 16, and tighten with a head screwdriver. Ø15*11mm Step 10 Ø7,0*50mm P.10...
  • Page 11 Step 11 S ecure part 4 to parts 2, 3 and 15 with screw (H) and phillips head s crewdriver. Ø4,0*40mm Step 12 Secure part 24 to parts 36, with screw (H) and phillips head screwdriver. Ø4,0*40mm P.11...
  • Page 12 Step 13 Secure parts 23 to parts 36, with screw (H) and phillips head screwdriver. Ø4,0*40mm Step 14 Secure part 23 to parts 36, with screw (H) and phillips head screwdriver. Ø4,0*40mm P.12...
  • Page 13 Step 15 Secure parts 23 and 24 to part 4 with screw (H) and head screwdriver. Ø4,0*40mm Step 16 above with screw (E) and phillips head screwdriver. Ø3,5*20mm P.13...
  • Page 14 Name and address of Step 17 the supplier and date of production. Ø8,0*8mm Step 18 Secure part 5 and 6 to part 8. Secure part 5 and 7 to part 8. Insert cam locks (L) into parts 5, 6, 7, and tighten with a head screwdriver.
  • Page 15 Step 19 Insert part 9 between the grooves of parts 5, 6 and 7. Secure part 10 to part 5, 6 and 7 with screw (G) and phillips Ø4,0*30mm head screwdriver. Step 20 Ø3,0*12mm Secure handle (J) with screw (D) and phillips head screwdriver, in the pre-drilled holes on the drawer front.
  • Page 16 Step 21 Insert ood dowel ( ) into part to be the stop of the drawer. Ø8*30mm Step 22 The assembled drawer with this warning must be placed on top of the unit. Insert wood dowel (B) on the inside of all drawers, with the drawer inside the unit, after having passed the wood dowel that is in the drawer slide.
  • Page 17 Step 23 WARNING Serious or fatal injuries can occur from furniture tipping over. To prevent the furniture from tipping over we recommend that it is permanently fixed to the wall. Wall anchor and hardware are included with this product. Please make sure hardware is suitable for your walls before installing, as different wall materials may require different types of anchors.
  • Page 18 Step 24 114 lbs 52 Kgs 25 lbs 11 Kg Assembly Complete! P.18...
