2. Installation and Operation

The following are different types of online UPS models: those with isolation transformers and those without
isolation transformers.
Model
6KVA FM
6KVA FMI
10KVA FM
10KVA FMI

2-1. Unpacking and Inspection

Unpack the package and check its contents. The shipping package includes:
One UPS
•
One RS-232 cable (option)
•
One USB cable
•
One battery cable
•
NOTE: Before installation, carefully inspect the unit to ensure that nothing inside the package is damaged during
transportation. Do not turn on the unit. If you notice any damage or if any parts are missing, please notify the
carrier and dealer immediately. Additionally, keep the original package in a safe place for future use.

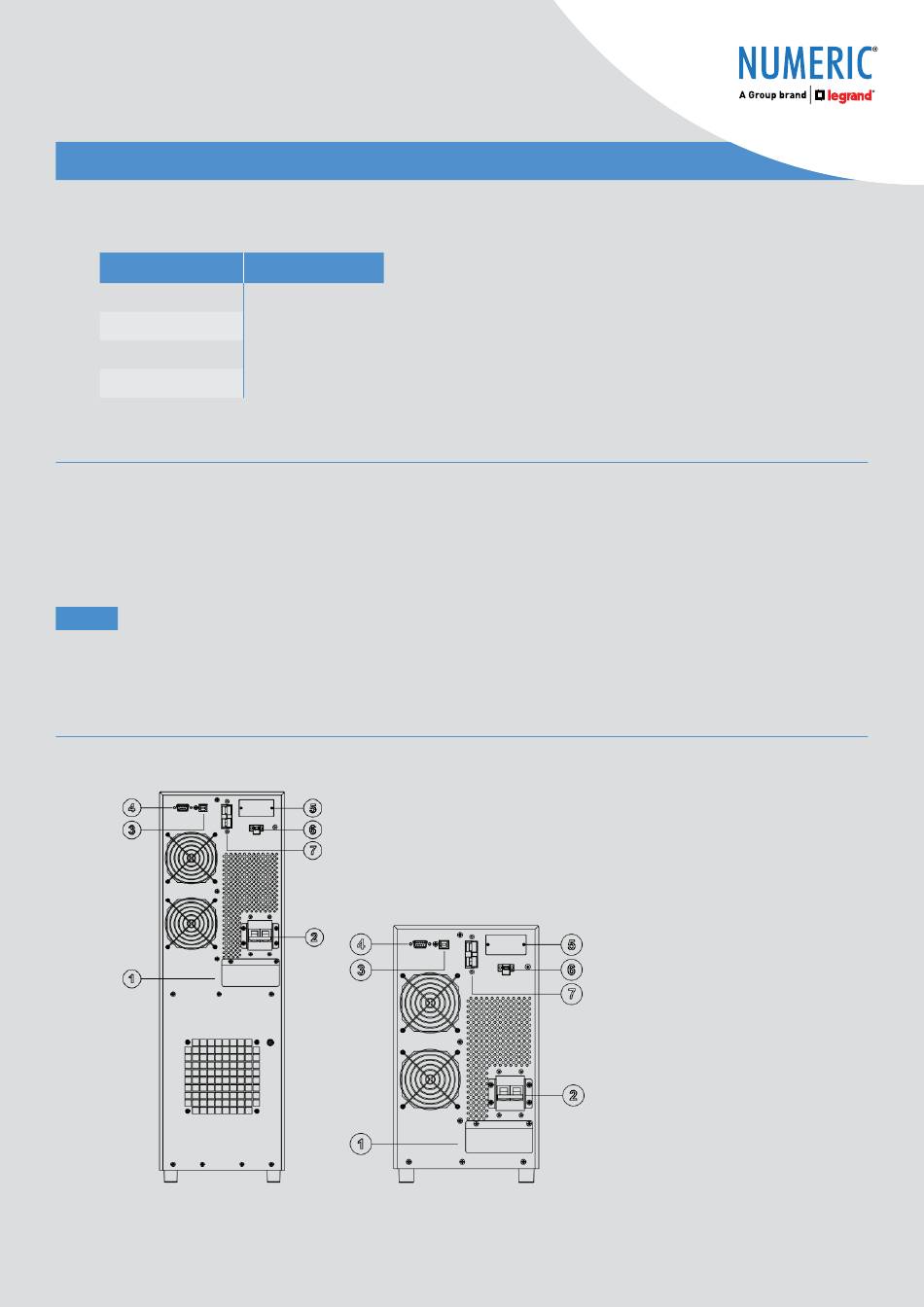

2-2. Rear Panel View

6KVA FMI/10KVA FMI
Type
Standard model
6KVA FM/10KVA FM
(1) AC Input/Output terminal
(2) Input circuit breaker
(3) USB communication port
(4) RS-232 communication port
(5) SNMP Intelligent slot
(6) Emergency power off function
connector (EPO connector)
(7) External battery connection
