2. Installation and Operation

There are several models for Onfiniti 5-10 kVA. Please refer to the following model table.
Model
5/6 kVA FM - Standard
5/6 kVA FM - Standard+1 charger
5/6 kVA FM - Standard+2 charger
5/6 kVA FM - Standard+3 charger
5/6 kVA FMI - Standard
5/6 kVA FMI - Standard+1 charger
5/6 kVA FMI - Standard+2 charger
5/6 kVA FMI - Standard+3 charger

2-1 Unpacking and Inspection

Unpack the package and check the package contents. The shipping package contains:
• One UPS
• One user manual
• One monitoring software CD
• One RS-232 cable (optional)
• One USB cable
• One battery cable (optional)
Note: Before installation, please inspect the unit. Be sure that nothing inside the package is damaged during
transportation. If there is any damage or missing parts, do not turn on the unit, notify the carrier and dealer
immediately. Please keep the original package in a safe place for future use.
3
Model
7.5/10 kVA FM - Standard
7.5/10 kVA FM - Standard+1 charger
7.5/10 kVA FM - Standard+2 charger
7.5/10 kVA FM - Standard+3 charger
7.5/10 kVA FMI - Sstandard
7.5/10 kVA FMI - Standard+1 charger
7.5/10 kVA FMI - Standard+2 charger
7.5/10 kVA FMI - Standard+3 charger

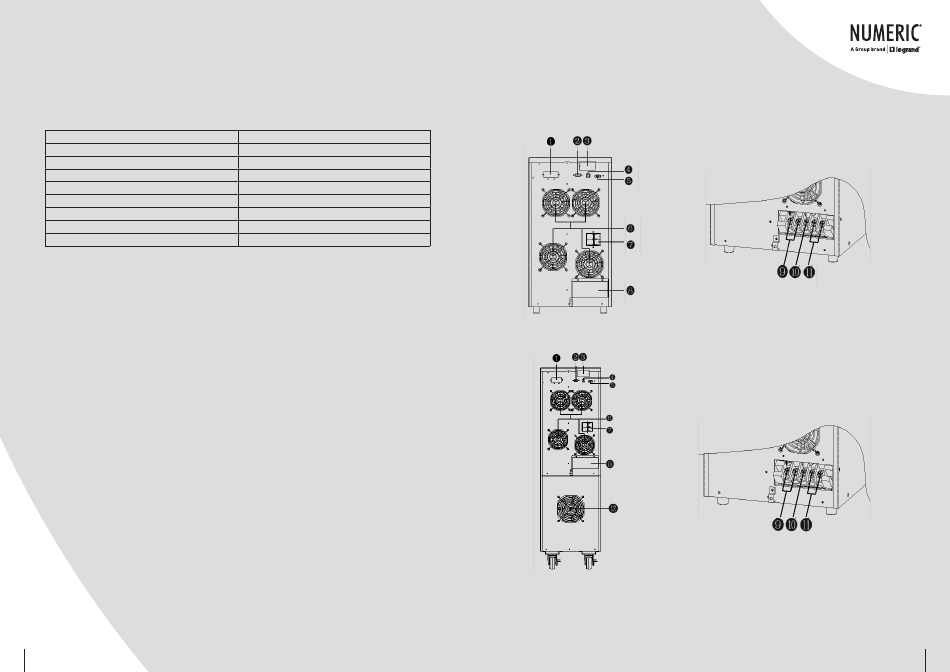

2-2. Rear Panel View

Diagram 1: 5/6 kVA FM Rear Panel
Diagram 3: 5/6 kVA FMI Rear Panel
Diagram 2: 5/6 kVA FM Input/Output Terminal
Diagram 4: 5/6 kVA FMI Input/Output Terminal
4
