LM/TM-4015DP
POS Monitor User Manual

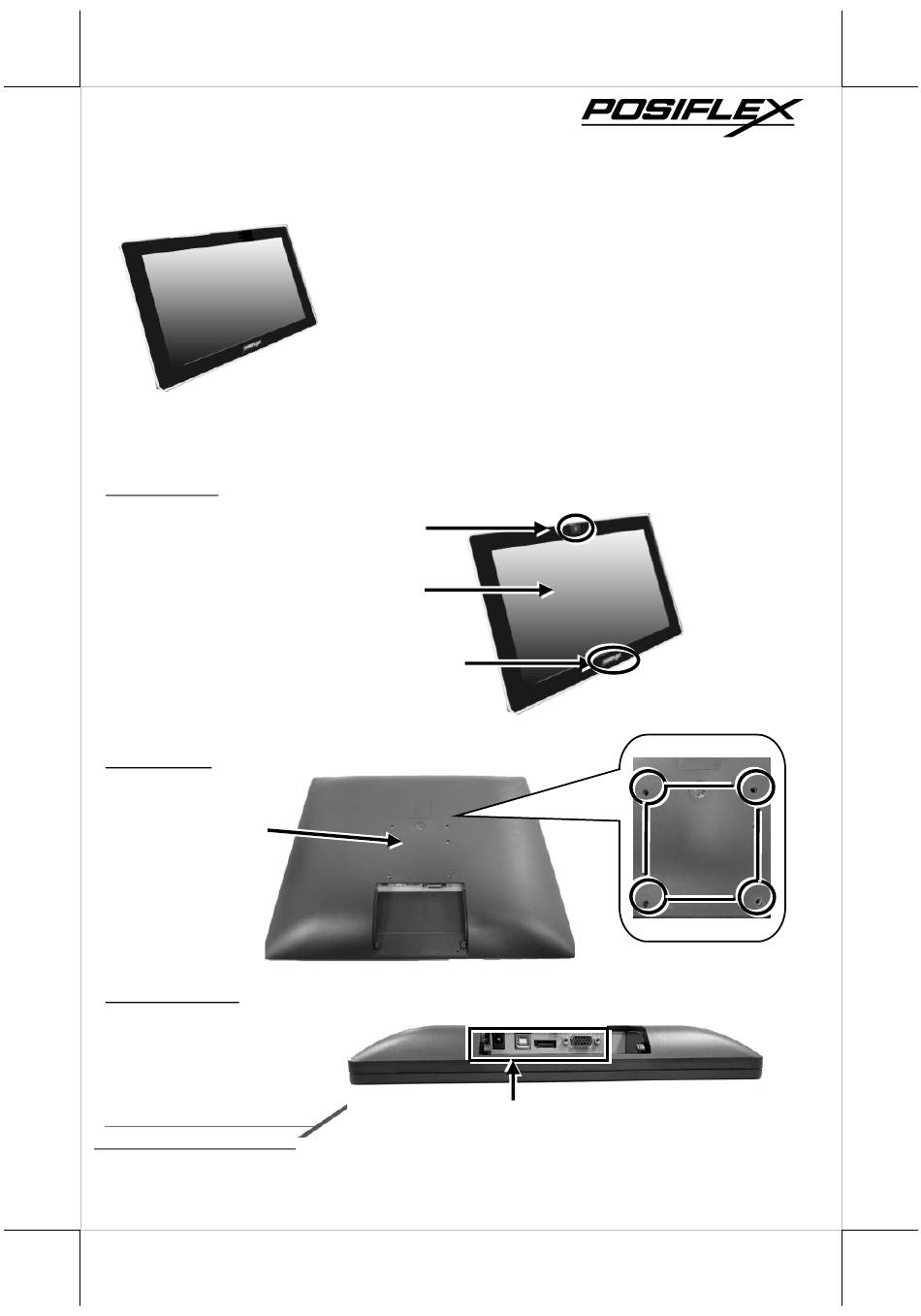

Views of LM/TM-4015DP
Front View
Camera (Optional)
LM-4015DP LCD Panel
TM-4015DP P-CAP Touch Panel
Rear View
VESA-Mount
Screw Holes
(VESA 75x75)
Bottom View
19640904020 Ver. B0
http://www.posiflex.com
Package Contents
POS Monitor ............................(x1)
Power Cable..............................(x1)
DP Cable.................................(x1)
USB (Type B) Cable....................(x1)
(For touch monitor and camera only)
Mounting Kits ............................(x1)
User Manual..............................(x1)
LED indicator
1
I/O Ports
Advertisement
Related Manuals for POSIFLEX LM-4015DP
Summary of Contents for POSIFLEX LM-4015DP
- Page 1 (For touch monitor and camera only) Mounting Kits ………………..…...(x1) User Manual………………………...(x1) Views of LM/TM-4015DP Front View Camera (Optional) LM-4015DP LCD Panel TM-4015DP P-CAP Touch Panel LED indicator Rear View VESA-Mount Screw Holes (VESA 75x75) Bottom View 19640904020 Ver. B0 I/O Ports http://www.posiflex.com...
- Page 2 Introduction to the I/O Ports DC-IN Power Jack DP Port VGA Port USB (Type-B) Port Connecting your Monitor to a RT-series POS Terminal Before connecting your POS monitor to a RT-series POS terminal, please enable the power supply from the POS terminal to your POS monitor by setting up the jumper of the POS terminal.
- Page 3 USB (Type B) Cable (For touch monitor and camera only) Connect to POS Monitor Connect to POS Terminal Identifying your Monitor as Secondary Touchscreen Monitor in Extended Mode In the following section, the related descriptions will be offered to help you set up TM series as the extended monitor when you attempt to extend the desktop across multiple monitors For TM-4015DP Model with P-CAP Touchscreen...
-
Page 4: Power Led Indicator
Please refer to the below chart to accurately interpret the of the indicators status to facilitate your troubleshooting. Status Description ON, solid blue System power ON ON, solid green System Standby System power OFF Installing Drivers Please visit Posiflex official website to download and install the related drivers. http://www.posiflex.com/en-global/Download/download) -
Page 5: Specification
37.9 35.1 37.9 800 x 600 48.1 46.9 1024 x 768 48.4 Specification TM-4015DP LM-4015DP Display LCD Panel 15" TFT LCD Resolution 1024 (H) x 768 (V) Active Area 304.128mm (H) x 228.096mm (V) Pixel Arrangement R.G.B. Vertical Stripe Viewing Angle... - Page 6 Mechanical Dimension 368 x 292 x 34.5 mm Weight 24.5 Kg ※ The product information and specifications are subject to change without prior notice. To get the detailed information on LM/TM-401XDP, please check this model from Posiflex Global Website (http://www.posiflex.com/en-global/Download/download).
