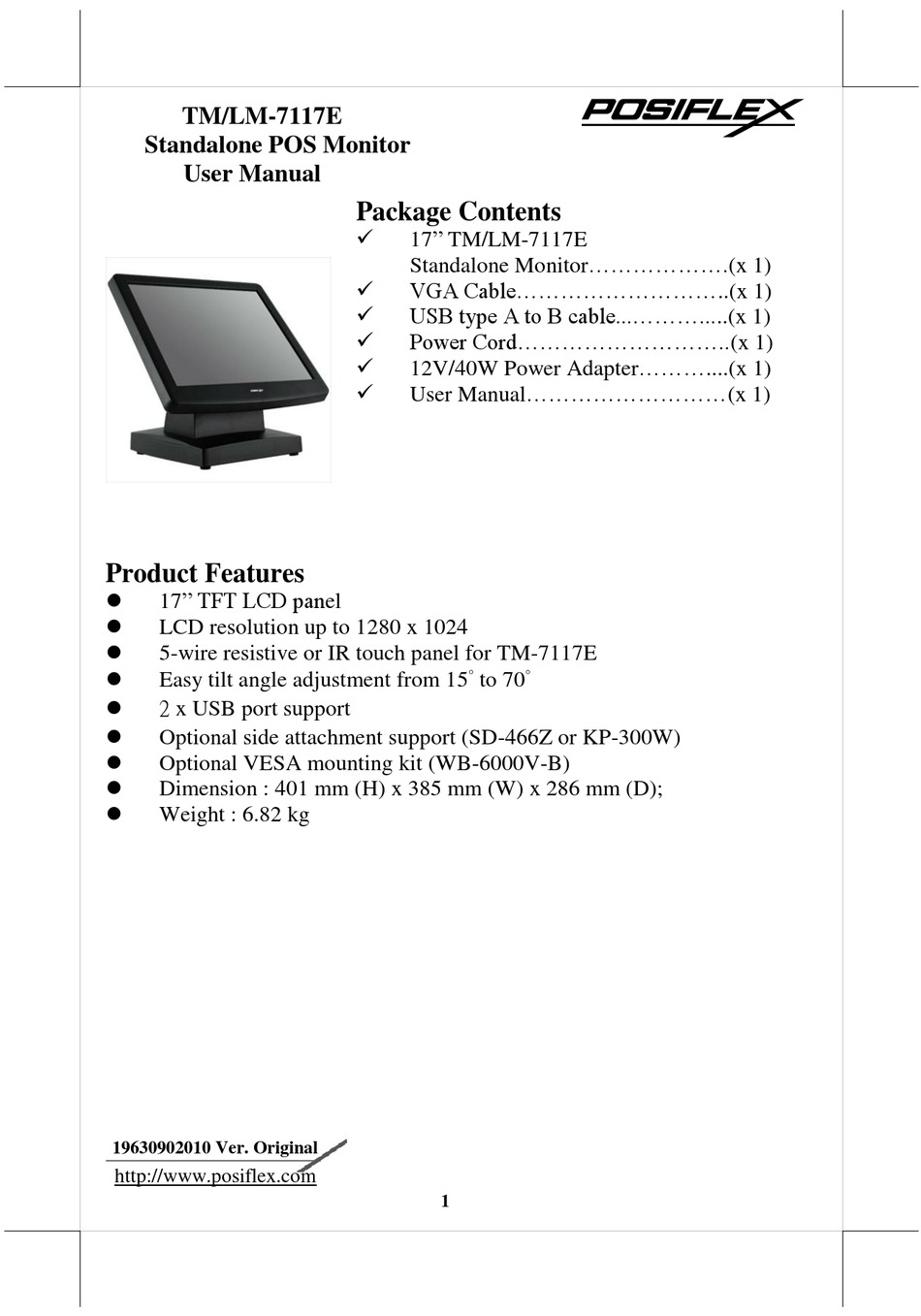

TM/LM-7117E
Standalone POS Monitor
User Manual
Product Features
17" TFT LCD panel
LCD resolution up to 1280 x 1024
5-wire resistive or IR touch panel for TM-7117E
Easy tilt angle adjustment from 15˚ to 70˚
2 x USB port support
Optional side attachment support (SD-466Z or KP-300W)
Optional VESA mounting kit (WB-6000V-B)
Dimension : 401 mm (H) x 385 mm (W) x 286 mm (D);
Weight : 6.82 kg
19630902010 Ver. Original
http://www.posiflex.com
Package Contents
17" TM/LM-7117E
Standalone Monitor...................(x 1)
VGA Cable.............................(x 1)
USB type A to B cable.................(x 1)
Power Cord.............................(x 1)
12V/40W Power Adapter.............(x 1)
User Manual...........................(x 1)
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the TM-7117E and is the answer not in the manual?

Questions and answers

Related Manuals for POSIFLEX TM-7117E

Summary of Contents for POSIFLEX TM-7117E

  • Page 1 Product Features  17” TFT LCD panel  LCD resolution up to 1280 x 1024  5-wire resistive or IR touch panel for TM-7117E  Easy tilt angle adjustment from 15˚ to 70˚  2 x USB port support ...
  • Page 2 Views of the TM/LM-7117E Front View 17” LM-7117E LCD Panel 17” TM-7117E Resistive or IR Touch Panel LED Indicator Gen 5 Base Rear View Side Mount Cover Release Button Cable Cover Cable Exit Bottom View Rubber Feet with Fixing Screw...
  • Page 3 Left-Side View Tilt Adjustment Lever Right-Side View OSD Control Button OSD button EXT button ＋ button － button Power button I/O Ports USB (Type B) Port VGA Port USB (Type A) DC-IN Power Jack Port...
  • Page 4 Positioning your monitor for a Perfect Viewing Angle Follow the below steps to adjust the viewing angle for TM/LM-7117E with Gen5 base stand using the tilt adjustment lever. After pushing down the tilt adjustment lever on the right side of the stand, tilt the screen up or back to your desired angle.
  • Page 5 Take power adaptor, VGA and USB cables, Cable groove and then neatly thread the cables along the cable groove first, and then snap it into the cable holder as shown in the figure. Cable holder Pass the cables through the cable passage. Place Gen5 base in upright position and make Cable passage sure the cables can be pulled out of the cable...

  • Page 6: Power Led Indicator

    For TM series or LM series with side attachment, please connect the monitor to the terminal using USB type A to B cable to enable touch function for your monitor. Grab Type-B connector of USB cable, and then insert it into Type-B USB port of your monitor Properly attach Type-A connector of USB cable to your POS terminal.
  • Page 7 For TM-7117E Model with Resistive or IR Touchscreen For TM-7117E users, please follow the below instructions to complete installation of The Dual Touch Manager, a tool designed to allow your monitor to work as a secondary touchscreen monitor in extended mode.
  • Page 8 Click on the Download tab, and then Drivers & Utility. Click Setup icon of USB Dual Touch Manager to install the USB Dual Touch Manager. Follow the instructions to complete the manager installation. After the installation is finished, restart your terminal.

  • Page 9: Using The Osd Menu

    Setting up Display Resolution for Your Monitor The below chart defines the list of recommended display settings for TM/LM-7117E. Improper display configuration will prevent the monitor from properly displaying the image and lead to a warning message of “out of range” prompted on the screen.
  • Page 10 Icon Description While OSD menu is activated:  to select the specific menu option OSD button While OSD menu is deactivated:  to activate the OSD menu While OSD menu is activated:  to exit from the current configuration EXT button While OSD menu is activated: ...

  • Page 11: Auto Adjustment

    OSD Options Please refer to the following table for further explanation of the accessible items. OSD Menu Options Sub-menu items & Description  Backlight Picture Press the “＋” button to increase backlight intensity; Press the “－” button to decrease backlight intensity.

  • Page 12: Specifications

    401 x 385 x 286 (W x D x H in mm) Weight 6.82 (N.W. in kg) ※ The product information and specifications are subject to change without prior notice. To get the detailed information on TM/LM-7117E, please check this model from Posiflex Global Website (http://www.posiflex.com/en-global/Download/download).
