LM/TM-3010E+XT-xx15+Gen9 Base
Configuration
Quick Installation Guide
For XT-xx15 POS Terminal (15-inch) + LM/TM-3010E + Gen9 Base
Configuration
There is a special cable routing solution for XT-xx15 POS terminal (15-inch) +
LM/TM-3010E + Gen9 base configuration.
Please refer to Gen9 base user manual to find the instruction of how to install
XT-series POS terminal to the Gen9 base.
1.

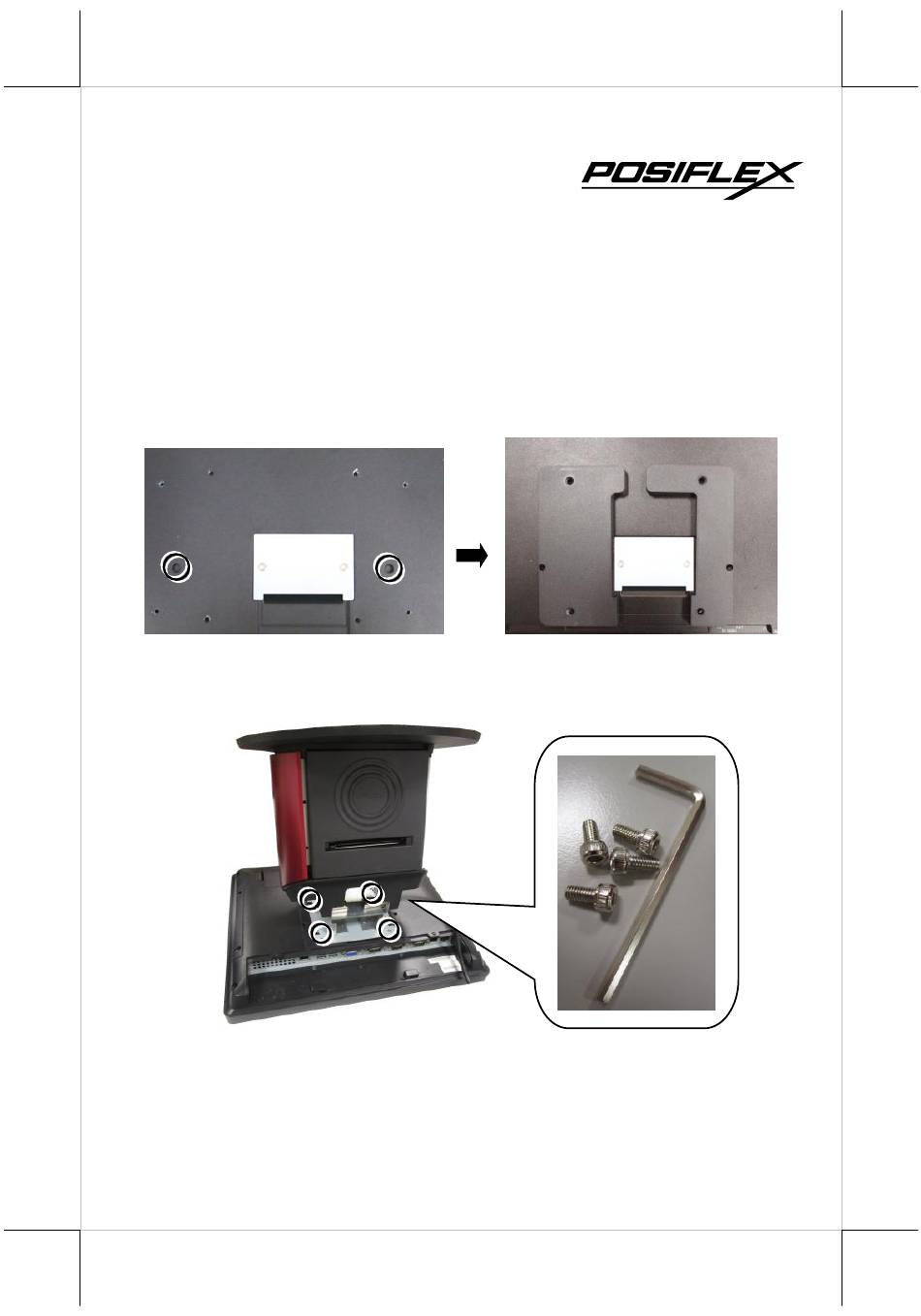

Put the two plastic spacers onto the rear cover of the XT-xx15 POS
terminal life the below picture.
2.
Fix the XT-xx15 POS terminal with plastic spacers to the VESA 100x100
mounting bracket with four hex socket head screws. You can find the
Allen Wrench in the package of the main system.
1
Advertisement
Related Manuals for POSIFLEX XT 15 Series
Summary of Contents for POSIFLEX XT 15 Series
- Page 1 LM/TM-3010E+XT-xx15+Gen9 Base Configuration Quick Installation Guide For XT-xx15 POS Terminal (15-inch) + LM/TM-3010E + Gen9 Base Configuration There is a special cable routing solution for XT-xx15 POS terminal (15-inch) + LM/TM-3010E + Gen9 base configuration. Please refer to Gen9 base user manual to find the instruction of how to install XT-series POS terminal to the Gen9 base.
- Page 2 Put the hinge cover to the rear side of the XT-xx15 POS terminal with both hands. Make sure the VGA cable and USB cable (Only for TM- 3010E model. If it’snt’, please skip this part.) pass through the cable passage like the below picture. Lift the LM/TM-3010E monitor and then align the four fixing screw hole on its mounting bracket with the hole pattern at the rear of the XT-xx15 POS terminal as shown in the below pictures.
