SIMPLIHOME brooklyn + max WyndenHall AXCDRP-164D-TK Manual

Draper / tierney / baxter mid century 4 door sideboard buffet
Hide thumbs

Advertisement

Quick Links

Download this manual

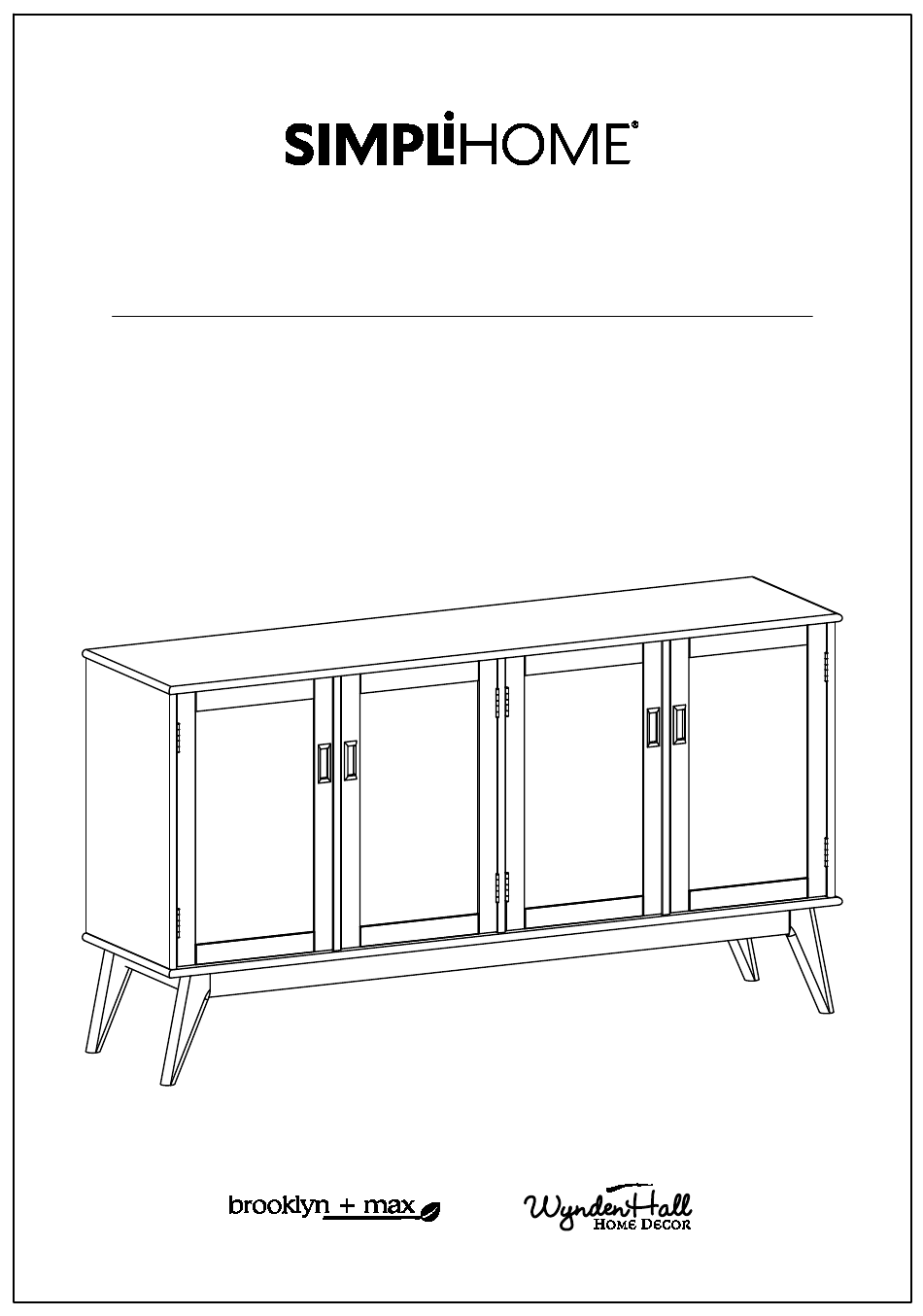

Draper / Tierney / Baxter
Mid Century 4 Door Sideboard Buffet
Model # AXCDRP-164D-TK
TM
TM
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the brooklyn + max WyndenHall AXCDRP-164D-TK and is the answer not in the manual?

Questions and answers

Related Manuals for SIMPLIHOME brooklyn + max WyndenHall AXCDRP-164D-TK

Summary of Contents for SIMPLIHOME brooklyn + max WyndenHall AXCDRP-164D-TK

  • Page 1 Draper / Tierney / Baxter Mid Century 4 Door Sideboard Buffet Model # AXCDRP-164D-TK...
  • Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
  • Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
  • Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.

  • Page 5: Safety Information

    IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint provided with the product.

  • Page 6: Care And Maintenance

    Care & Maintenance This furniture is designed for indoor use. Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. Making matters worse, it expands and contracts unequally along different grain directions.
  • Page 7 Pre-Assembly Information Model # AXCDRP-164D-TK Part Description LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 BOTTOM SHELF DIVIDER MIDDLE DIVIDER QTY 1 QTY 2 QTY 1 Warning Label CABINET SHELF LEFT BACK PANEL RIGHT BACK PANEL QTY 4 QTY 1 QTY 1 MIDDLE BACK PANEL...
  • Page 8 Pre-Assembly Information Model # AXCDRP-164D-TK Hardware Description WOOD DOWEL ALLEN KEY SCREW M6 X 30mm ALLEN KEY Ø8 X 30mm QTY 30 QTY 1 QTY 14 SHELF SUPPORT MAGNET AND PLATE QTY 24 QTY 8 SETS QTY 4 SETS PHILLIPS SCREW PHILLIPS SCREW PHILLIPS SCREW ROUND HEAD M3 X 15mm...
  • Page 9 Components - Key Diagram Model # AXCDRP-164D-TK...
  • Page 10 Assembly Model # AXCDRP-164D-TK Step 1 1. Insert Wood Dowels 1 into guide holes on Sides AL , AR and Dividers D , E . 2. Use rubber mallet to tap Dowels 1 into bottom of holes securely. 1/3 length of Dowels should be exposed.
  • Page 11 Assembly Model # AXCDRP-164D-TK Step 2 1. Align Wood Dowels with guide holes and attach Dividers D , E to Bottom Shelf C . 2. Use nine Allen Key Screws 2 to attach Bottom Shelf C through guide holes. 3. Use Allen Key 3 to tighten Screws. Do not over-tighten.
  • Page 12 Assembly Model # AXCDRP-164D-TK Step 3 1. Align Wood Dowels with guide holes and attach Sides AL , AR to Bottom Shelf C . 2. Use six Allen Key Screws 1 to attach Bottom Shelf C through guide holes. 3. Use Allen Key 3 to tighten Screws. Do not over-tighten.
  • Page 13 Assembly Model # AXCDRP-164D-TK Step 4 1. Align Wood Dowels with guide holes and attach Top B to Sides AL , AR and Dividers D , E . 2. Use three Allen Key Screws 2 to attach each Sides AL , AR through guide holes. 3.
  • Page 14 Assembly Model # AXCDRP-164D-TK Step 5 1. Attach Legs J1 , J2 to Bottom Shelf C using eight sets Allen Key Bolts, Lock washers and Washers 5 through guide holes (two sets on each Leg). 2. Use Allen Key 3 to tighten Bolts. Do not over-tighten.
  • Page 15 Assembly Model # AXCDRP-164D-TK Step 6 Note: Warning Label 1. Use Phillips Screws Round Head 9 to attach Back Panels GL , GR , H through guide holes from Back Panels to the back of Sideboard . 2. Use Phillips screwdriver to tighten screws. Do not over-tighten.
  • Page 16 Assembly Model # AXCDRP-164D-TK Step 7 First Step Last Step ( after adjust the door )
  • Page 17 Assembly Model # AXCDRP-164D-TK Step 8 1. Attach Magnet Plates 6 to top corner of Doors IL , IR using Phillips Screws 7 into pre-drilled holes on Doors IL , IR . 2. Attach Magnets 6 using Phillips Screws 7 into pre-drilled holes on Dividers D , E . 3.
  • Page 18 Assembly Model # AXCDRP-164D-TK Step 9 shelf support shelf level 1 anti - tipping shelf level 2 shelf level 3 1. Use four Shelf Supports 4 for each Cabinet Shelf F in desired location. 2. Two Shelf Supports 4 may be used on back top of each Cabinet Shelf F as a tipping restraint.
  • Page 19 Furniture Tip Over Restraint Assembly WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. Step 10 NOTE: The screwdriver is not included in the hardware pack.
  • Page 20 Furniture Anti-Tipping Restraint Instructions Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
