Summary of Contents for SIMPLIHOME ANDOVER

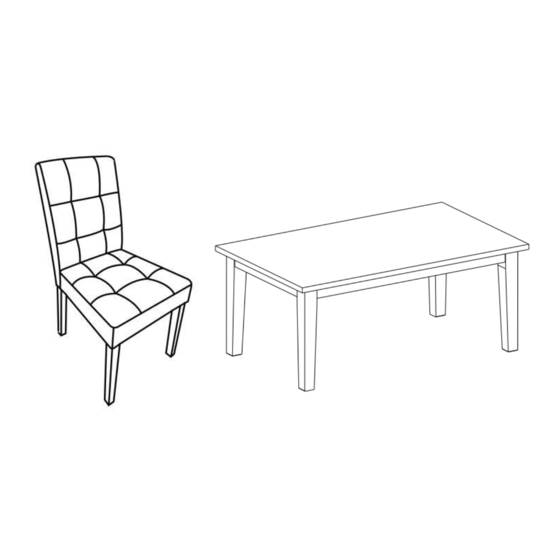

- Page 1 ANDOVER / JEFFERSON / VERONA ANDOVER 7 PC DINING SET MODEL # AXCDS7AN-SGL...
- Page 2 Questions, problems, assembly help, missing parts? No need to return the product, we will gladly help and ship your replacement parts free of charge Please call Customer Service at 1-866-518-0120 ext. 262 Monday to Friday between 9 am – 4 pm EST or go to www.simpli-home.com/parts request...
-
Page 3: Safety Information
IMPORTANT: Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. SAFETY INFORMATION Identify all the parts and hardware. Do not discard of the packaging until you have checked that you have all of the parts and hardware required. Hardware package may have spare parts. - Page 4 CARE and MAINTENANCE …cont’d Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. Making matters worse, it expands and contracts unequally along different grain directions.
- Page 5 EASTWOOD / COLBURN / HALSTEAD RECTANGULAR DINING TABLE MODEL # 3AXCDNT-003...
- Page 10 ANDOVER / JEFFERSON / VERONA DINING CHAIR MODEL # AXCDCHR-004-SGL...
-
Page 11: Pre-Assembly Information
PRE-ASSEMBLY INFORMATION PARTS DESCRIPTION CHAIR BACK FRONT LEG SEAT QTY 1 QTY 2 QTY 1 NEED HELP? For help with assembly or if you are missing a part, Please call customer service at 1-866-518-0120 ext. 262 (9 am to 4 pm EST) -
Page 12: Hardware Description
PRE-ASSEMBLY INFORMATION HARDWARE DESCRIPTION ALLEN KEY SCREW ALLEN KEY SCREW ALLEN KEY SCREW M8 x 50 MM M8 x 60 MM M8 x 90 MM QTY 1 QTY 4 QTY 4 ALLEN KEY LOCK WASHER FLAT WASHER 5 MM Ø13 MM Ø22 MM QTY 1 QTY 9... - Page 13 ASSEMBLY STEP 1 Align Seat (B) into pre-drilled holes on Chair Back (A). Attach Seat (B) to Chair Back (A) using Allen Key Screw (1) and one Washer each of (4) and (6). Use Allen Key (5) to tighten. Do not over-tighten.
- Page 14 ASSEMBLY STEP 2 Secure Seat (B) to Chair Back (A) using Allen Keys Screws (3) and four Washers each of (4) and (6). Use Allen Key (5) to tighten. Do not over-tighten.
- Page 15 ASSEMBLY STEP 3 Attach Front Legs (C) to Seat (B) using Allen Keys Screws (2) and four Washers each of (4) and (6). Use Allen Key (5) to tighten. Do not over-tighten.
- Page 16 ASSEMBLY STEP 4 Place Chair on a flat level surface to ensure it is level. If it is uneven, adjust either the Seat (B) or Front Legs (C). Ensure the Chair is level and then fully tighten all bolts.
- Page 17 ASSEMBLY STEP 5 Use the zipper to close the fabric on the bottom of the Chair.
-
Page 18: Warranty
WARRANTY Thank you for purchasing a Simpli Home – Wyndenhall – Brooklyn + Max product. These products have been made to demanding, high-quality standards and are guaranteed for domestic use against manufacturing faults for a period of 12 months from the date of purchase. This warranty does not affect your statutory rights.
