SIMPLIHOME brooklyn + max WyndenHall AXCDRP-42C-TK Manual

Draper / tierney / baxter 42w 9 cube storage with drawers
Hide thumbs

Advertisement

Quick Links

Download this manual
Draper / Tierney / Baxter
42W 9 Cube Storage with Drawers
Model # AXCDRP-42C-TK
TM
TM
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the brooklyn + max WyndenHall AXCDRP-42C-TK and is the answer not in the manual?

Questions and answers

Related Manuals for SIMPLIHOME brooklyn + max WyndenHall AXCDRP-42C-TK

Summary of Contents for SIMPLIHOME brooklyn + max WyndenHall AXCDRP-42C-TK

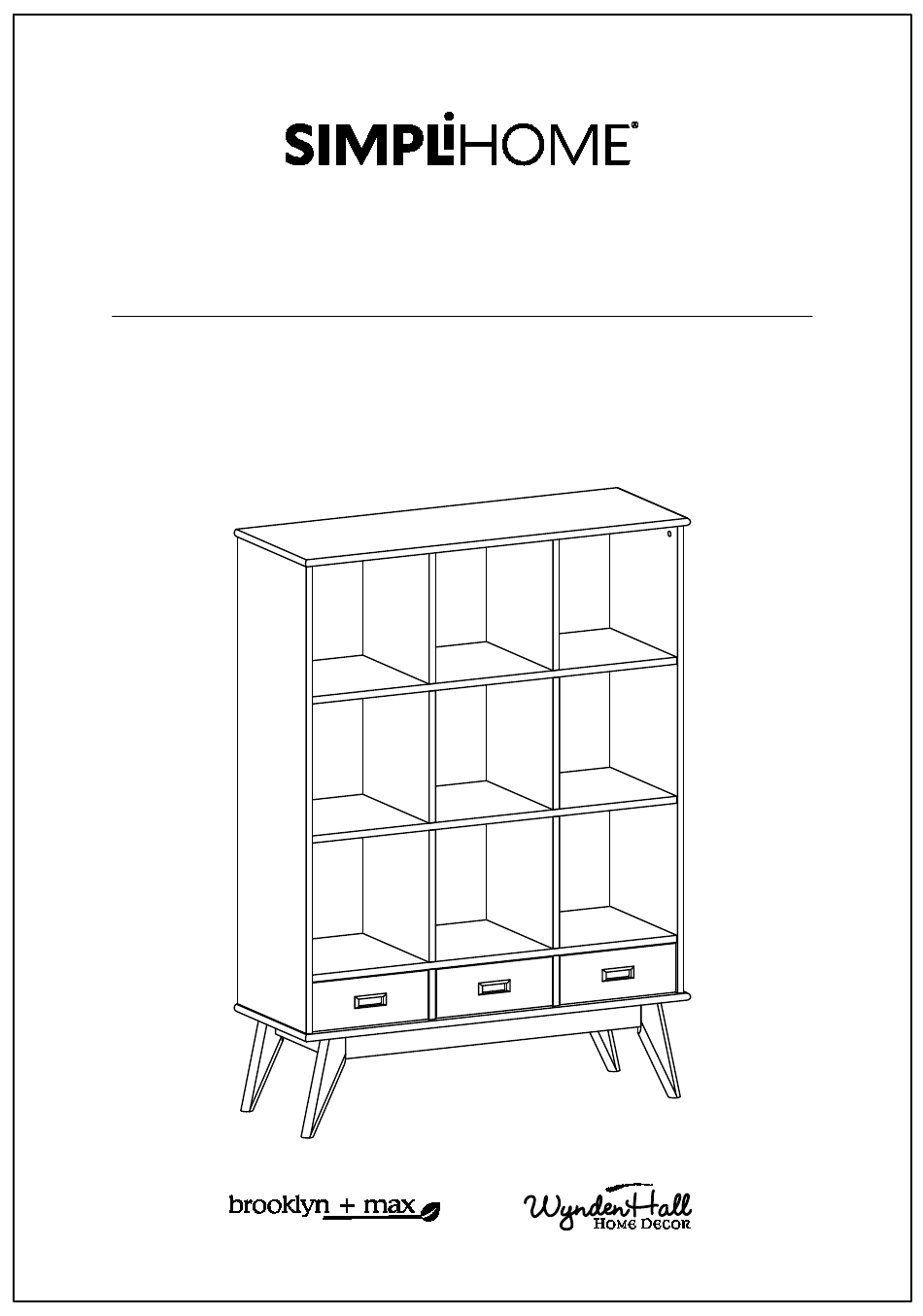

  • Page 1 Draper / Tierney / Baxter 42W 9 Cube Storage with Drawers Model # AXCDRP-42C-TK...
  • Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
  • Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
  • Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.

  • Page 5: Safety Information

    IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint provided with the product.

  • Page 6: Care And Maintenance

    Care & Maintenance This furniture is designed for indoor use. Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. Making matters worse, it expands and contracts unequally along different grain directions.
  • Page 7 Pre-Assembly Information Model # AXCDRP-42C-TK Part Description LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 BOTTOM SHELF CABINET SHELF DIVIDER QTY 1 QTY 3 QTY 6 SMALL DIVIDER LEFT BACK PANEL RIGHT BACK PANEL QTY 2 QTY 1 QTY 1...

  • Page 8: Drawer Bottom

    Pre-Assembly Information Model # AXCDRP-42C-TK Part Description MIDDLE BACK PANEL QTY 1 QTY 2 QTY 2 DRAWER FRONT LEFT DRAWER SIDE RIGHT DRAWER SIDE QTY 3 QTY 3 QTY 3 DRAWER BACK DRAWER BOTTOM QTY 3 QTY 3...
  • Page 9 Pre-Assembly Information Model # AXCDRP-42C-TK Hardware Description WOOD DOWEL ALLEN KEY SCREW Ø8 X 30mm M6 X 30mm ALLEN KEY QTY 4 QTY 34 QTY 1 CAM LOCK PIN PHILLIPS SCREW ROUND HEAD CAM LOCK M4 X 15mm QTY 52 SETS QTY 8 SETS QTY 32 M4 X 25mm - QTY 2...
  • Page 10 Components - Key Diagram Model # AXCDRP-42C-TK...
  • Page 11 Assembly Model # AXCDRP-42C-TK Step 1 1. Attach four Cam Lock Pins 5 into pre-drilled holes on back of Drawer Front I . 2. Use Phillips screwdriver to secure Cam Lock Pins. Do not over-tighten. Step 2 JL , JR to Drawer Front I . JL , JR .
  • Page 12 Assembly Model # AXCDRP-42C-TK Step 3 Step 4 1. Align Drawer Back K with Drawer Bottom L and press firmly into slot. 2. Attach Drawer Back using two Allen Key Screws 2 through guide holes on each Drawer Side JL , JR . 3.
  • Page 13 Assembly Model # AXCDRP-42C-TK Step 5 1. Attach ten Cam Lock Pins 5 into pre-drilled holes at Top A . 2. Attach four Cam Lock Pins 5 into pre-drilled holes at each Cabinet Shelf D . 3. Use Phillips screwdriver to secure Cam Lock Pins. Do not over-tighten.
  • Page 14 Assembly Model # AXCDRP-42C-TK Step 6 1. Attach nine Cam Lock Pins 5 into pre-drilled holes at each Side BL , BR . 2. Use Phillips screwdriver to secure Cam Lock Pins. Do not over-tighten. 3. Insert two Wood Dowels 1 into guide holes on each Side BL , BR . 4.
  • Page 15 Assembly Model # AXCDRP-42C-TK Step 7 1. Align Wood Dowels with guide holes and attach two Dividers E to the first Cabinet Shelf D . 2. Use four Allen Key Screws 2 to attach Cabinet Shelf D through guide holes. 3.
  • Page 16 Assembly Model # AXCDRP-42C-TK Step 8 1. Align Cam Lock Pins with guide holes and attach two Dividers E to Cabinet Shelf D . 2. Insert two Cam Locks 5 into guide holes on each Divider E . 3. Use Phillips screwdriver to secure Cam Locks. Do not over-tighten.
  • Page 17 Assembly Model # AXCDRP-42C-TK Step 9 1. Repeat Step 7 for the second Cabinet Shelf D .
  • Page 18 Assembly Model # AXCDRP-42C-TK Step 10 1. Repeat Step 8 for the other Dividers E .
  • Page 19 Assembly Model # AXCDRP-42C-TK Step 11 1. Repeat Step 7 for the third Cabinet Shelf D .
  • Page 20 Assembly Model # AXCDRP-42C-TK Step 12 1. Align Cam Lock Pins with guide holes and attach two Small Dividers F to Cabinet Shelf D . 2. Insert two Cam Locks 5 into guide holes on each Small Divider F . 3.
  • Page 21 Assembly Model # AXCDRP-42C-TK Step 13 1. Align Cam Lock Pins with guide holes and attach Left Side BL to Cabinet Shelves D . 2. Insert three Cam Locks 5 into guide holes on each Cabinet Shelf D . 3. Use Phillips screwdriver to secure Cam Locks. Do not over-tighten.
  • Page 22 Assembly Model # AXCDRP-42C-TK Step 14 1. Repeat Step 13 for the Right Side BR .
  • Page 23 Assembly Model # AXCDRP-42C-TK Step 15 1. Align Wood Dowels with guide holes and attach Bottom Shelf C to Sides BL , BR and Small Dividers F . 2. Use ten Allen Key Screws 2 to attach Bottom Shelf C through guide holes. 3.
  • Page 24 Assembly Model # AXCDRP-42C-TK Step 16 1. Attach Legs H1 , H2 to Bottom Shelf C using eight sets Allen Key Bolts, Lock washers and Washers 4 through guide holes (two sets on each Leg). 2. Use Allen Key 3 to tighten Bolts. Do not over-tighten.
  • Page 25 Assembly Model # AXCDRP-42C-TK Step 17 1. Align Cam Lock Pins with guide holes and attach Top A to Sides BL , BR and Dividers E . 2. Insert Cam Locks 5 into guide holes on Sides BL , BR and Dividers E . 3.
  • Page 26 Assembly Model # AXCDRP-42C-TK Note: Step 18 Warning Label 1. Use Phillips Screws Round Head 6 to attach Back Panels GL ,GR , G through guide holes from Back Panels to the back of cube storage. 2. Use Phillips screwdriver to tighten screws. Do not over-tighten.
  • Page 27 Assembly Model # AXCDRP-42C-TK Step 19 1. Insert Plastic Caps 7 into holes Cam Locks on Sides BL , BR and Dividers E . 2. Insert assembly drawer into glides on assembly bookcase.
  • Page 28 Furniture Tip Over Restraint Assembly WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. NOTE: The screwdriver is not Step 20 included in the hardware pack.
  • Page 29 Furniture Anti-Tipping Restraint Instructions Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
