SIMPLIHOME brooklyn + max WyndenHall AXCDRP-74-TK Manual

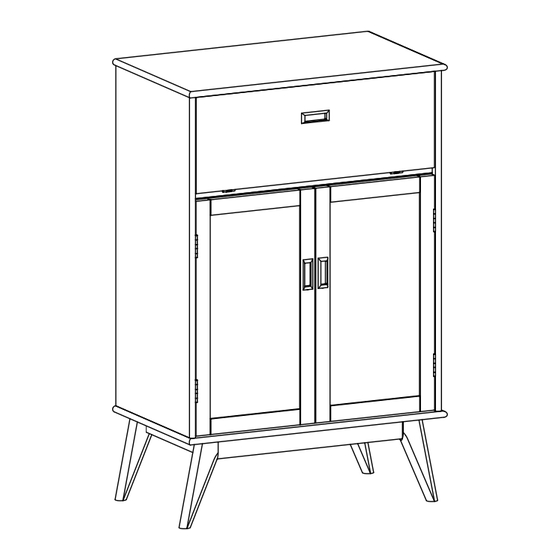

Draper / tierney / baxter mid century bar cabinet
Hide thumbs

Advertisement

Quick Links

Download this manual
Draper / Tierney / Baxter
Mid Century Bar Cabinet
Model # AXCDRP-74-TK
TM
TM
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the brooklyn + max WyndenHall AXCDRP-74-TK and is the answer not in the manual?

Questions and answers

Related Manuals for SIMPLIHOME brooklyn + max WyndenHall AXCDRP-74-TK

Summary of Contents for SIMPLIHOME brooklyn + max WyndenHall AXCDRP-74-TK

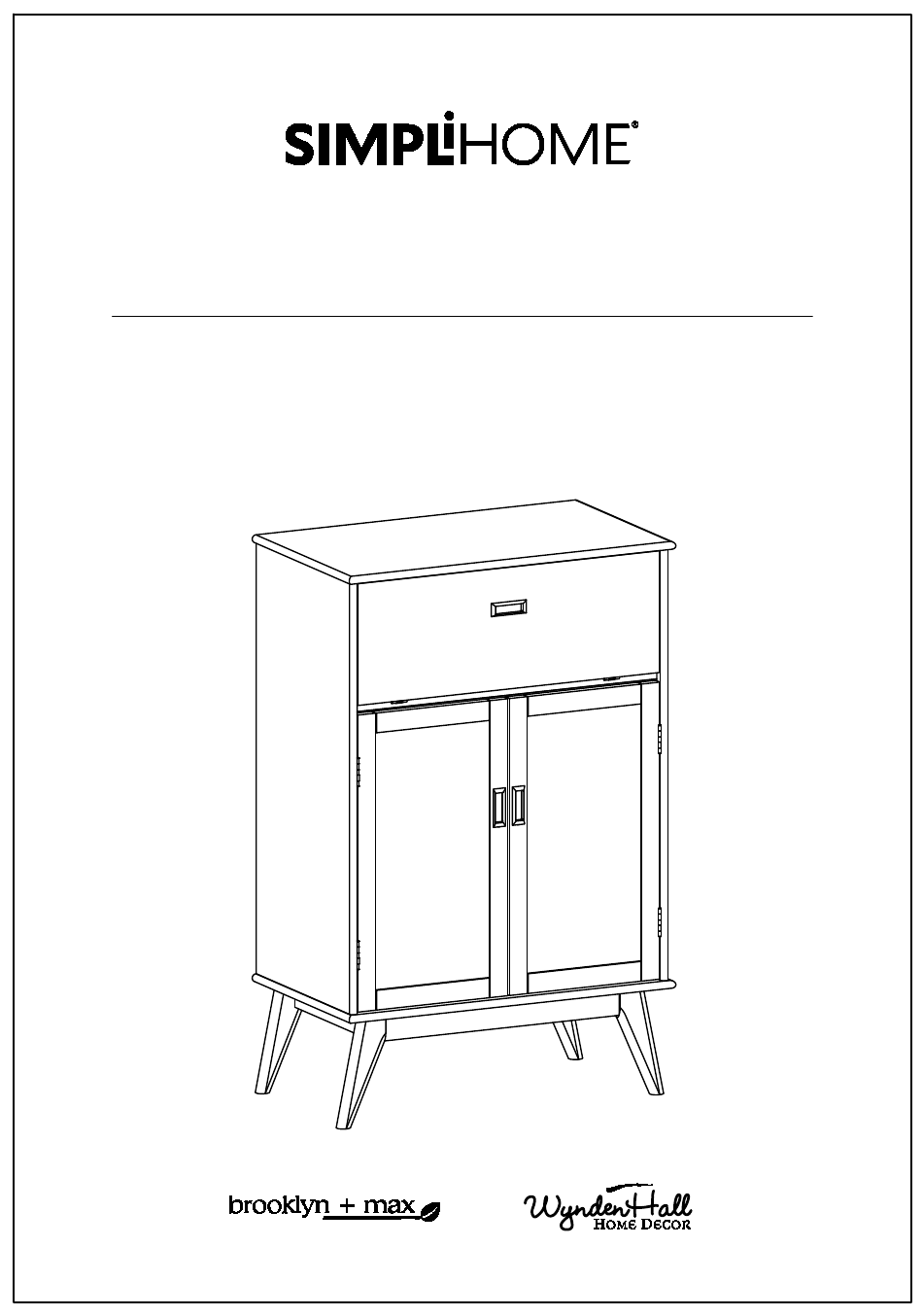

  • Page 1 Draper / Tierney / Baxter Mid Century Bar Cabinet Model # AXCDRP-74-TK...
  • Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
  • Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
  • Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.

  • Page 5: Safety Information

    IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint provided with the product.

  • Page 6: Care And Maintenance

    Care & Maintenance This furniture is designed for indoor use. Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. Making matters worse, it expands and contracts unequally along different grain directions.
  • Page 7 Pre-Assembly Information Model # AXCDRP-74-TK Part Description LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 BOTTOM SHELF CUP FRAME FIX SHELF QTY 1 QTY 1 QTY 1 CABINET SHELF WINE FRAME FLIP DOWN DOOR QTY 1 QTY 1 QTY 1...
  • Page 8 Pre-Assembly Information Model # AXCDRP-74-TK Part Description LEFT DOOR METAL FRAME RIGHT DOOR QTY 1 QTY 2 QTY 1 Warning Label LEFT BACK PANEL RIGHT BACK PANEL BOTTLE HOLDER QTY 1 QTY 1 QTY 2 JOINING STRIP LEG (L&R Same) LEG (L&R Same) QTY 1 QTY 1...
  • Page 9 Pre-Assembly Information Model # AXCDRP-74-TK Hardware Description CAM LOCK PIN ALLEN KEY SCREW ALLEN KEY PLASTIC CAP CAM LOCK M6 X 30mm QTY 1 QTY 6 QTY 14 SETS QTY 12 PHILLIPS SCREW WOOD DOWEL PHILLIPS SCREW ROUND HEAD SHELF SUPPORT Ø8 X 30mm M3 X 12mm M4 X 15mm...
  • Page 10 Components - Key Diagram Model # AXCDRP-74-TK...
  • Page 11 Assembly Model # AXCDRP-74-TK Step 1 1. Attach Cam Lock Pins 2 into pre-drilled holes at Sides BL , BR and Door IL , IR . 2. Use Phillips screwdriver to secure Cam Lock Pins. Do not over-tighten. 3. Insert Wood Dowels 5 into guide holes on Sides BL , BR , Wine Frame H and Botlle Holders K .
  • Page 12 Assembly Model # AXCDRP-74-TK Step 2 1. Align Cam Lock Pins and Wood Dowels with guide holes and attach Bottle Holder K to Left Door IL . 2. Insert two Cam Locks 2 into guide holes on Bottle Holder K . 3.
  • Page 13 Assembly Model # AXCDRP-74-TK Step 3 1. Attach Hinges 10 to Cup Frame D using Phillips Screws 10 into pre-drilled holes on Cup Frame D . 2. Use Phillips Screwdriver to tighten screws. Do not over-tighten. Step 4 1. Align Cam Lock Pins with guide holes and attach Cup Frame D to Left Side BL . 2.
  • Page 14 Assembly Model # AXCDRP-74-TK Step 5 1. Align Cam Lock Pins with guide holes and attach Fix Shelf E to Left Side BL . 2. Insert two Cam Locks 2 into guided holes on Fix Shelf E . 3. Use Phillips screwdriver to secure Cam Locks. Do not over-tighten. 4.
  • Page 15 Assembly Model # AXCDRP-74-TK Step 6 Repeat Step 4 - 5 for Right Side BR .
  • Page 16 Assembly Model # AXCDRP-74-TK Step 7 1. Align Wood Dowels with guide holes and attach Sides BL , BR to Bottom Shelf C . 2. Use six Allen Key Screws 1 to attach Bottom Shelf C through guide holes. 3. Use Allen Key 3 to tighten Screws. Do not over-tighten.
  • Page 17 Assembly Model # AXCDRP-74-TK Step 8 1. Align Wood Dowels with guide holes and attach Top A to Sides BL , BR . 2. Use three Allen Key Screws 1 to attach each Sides BL , BR through guide holes. 3.
  • Page 18 Assembly Model # AXCDRP-74-TK Step 9 1. Attach Legs N1, N2 to Bottom Shelf C using eight sets Allen Key Bolts, Lock washers and Washers 13 through guide holes (two sets on each Leg). 2. Use Allen Key 3 to tighten Bolts. Do not over-tighten.
  • Page 19 Assembly Model # AXCDRP-74-TK Note: Step 10 Warning Label 1. Attach Right Back panel LR to back frame by using nine Phillips Screws 6 . 2. Insert Left Back Panel LL into the slot of Joining Strip M . 3. Insert the entire set of step 2 into side edge of Right Back Panel LR and attach both panels LL , LR with screws 6 .
  • Page 20 Assembly Model # AXCDRP-74-TK Step 11 1. Insert Plastic Caps 4 into holes Cam Locks on Cup Frame D . 3. Attach Latch 11 to Flip Down Door F using Phillips Screws 11 into pre-drilled holes. 4. Attach Latch 11 to Left Side BL using Phillips Screws 11 into pre-drilled holes. 5.
  • Page 21 Assembly Model # AXCDRP-74-TK Step 12 1. Attach Lid Support 12 into pre-drilled holes of Sides BL , BR and Flip Down Door F using Phillips Screws Round Head 12 . 2. Use phillips screwdriver to tighten Screws. Do not over-tighten.
  • Page 22 Assembly Model # AXCDRP-74-TK Step 13 First Step Last Step ( after adjust the door ) 2. Attach Magnet Plates 9 to bottom corner of Doors IL , IR using Phillips Screws 9 into pre-drilled holes on Doors IL , IR . 3.
  • Page 23 Assembly Model # AXCDRP-74-TK Step 14 shelf support anti - tipping shelf level 1 shelf level 2 shelf level 3 1. Use four Shelf Supports 8 for each Cabinet Shelf G in desired location. 2. Two Shelf Supports 8 may be used on back top of each Cabinet Shelf G as a tipping restraint.
  • Page 24 Furniture Tip Over Restraint Assembly WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. Step 15 NOTE: The screwdriver is not included in the hardware pack.
  • Page 25 Furniture Anti-Tipping Restraint Instructions Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
