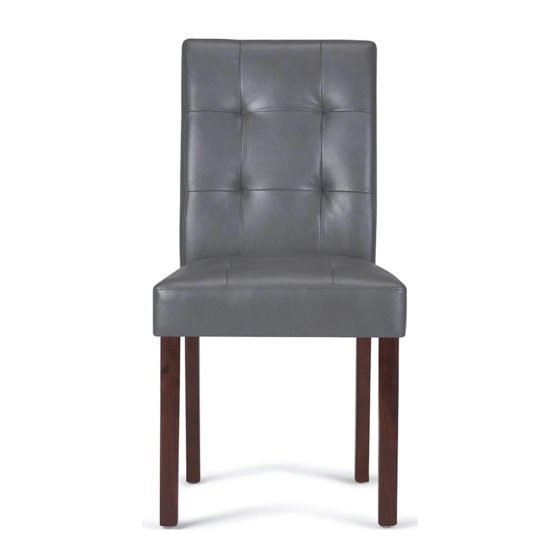

- Page 1 ANDOVER / JEFFERSON / VERONA DINING CHAIR MODEL # AXCDCHR-004-SGL...
- Page 2 PRE-ASSEMBLY INFORMATION PARTS DESCRIPTION CHAIR BACK FRONT LEG SEAT QTY 1 QTY 2 QTY 1 NEED HELP? For help with assembly or if you are missing a part, Please call customer service at 1-866-518-0120 ext. 262 (9 am to 4 pm EST)
- Page 3 PRE-ASSEMBLY INFORMATION HARDWARE DESCRIPTION ALLEN KEY SCREW ALLEN KEY SCREW ALLEN KEY SCREW M8 x 50 MM M8 x 60 MM M8 x 90 MM QTY 1 QTY 4 QTY 4 ALLEN KEY LOCK WASHER FLAT WASHER 5 MM Ø13 MM Ø22 MM QTY 1 QTY 9...
- Page 4 ASSEMBLY STEP 1 Align Seat (B) into pre-drilled holes on Chair Back (A). Attach Seat (B) to Chair Back (A) using Allen Key Screw (1) and one Washer each of (4) and (6). Use Allen Key (5) to tighten. Do not over-tighten.
- Page 5 ASSEMBLY STEP 2 Secure Seat (B) to Chair Back (A) using Allen Keys Screws (3) and four Washers each of (4) and (6). Use Allen Key (5) to tighten. Do not over-tighten.
- Page 6 ASSEMBLY STEP 3 Attach Front Legs (C) to Seat (B) using Allen Keys Screws (2) and four Washers each of (4) and (6). Use Allen Key (5) to tighten. Do not over-tighten.
- Page 7 ASSEMBLY STEP 4 Place Chair on a flat level surface to ensure it is level. If it is uneven, adjust either the Seat (B) or Front Legs (C). Ensure the Chair is level and then fully tighten all bolts.
- Page 8 ASSEMBLY STEP 5 Use the zipper to close the fabric on the bottom of the Chair.
