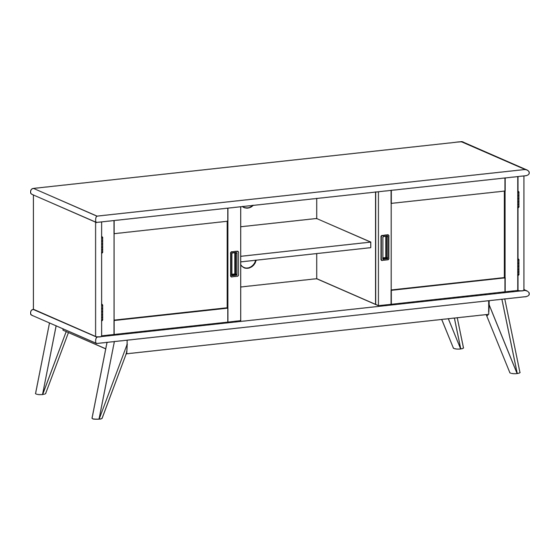

- Page 1 Draper / Baxter / Tierney Mid Century Low TV Media Stand Model # AXCDRP-07BL...
- Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
- Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
- Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.
-
Page 5: Safety Information
IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint provided with the product. -
Page 6: Care And Maintenance
Care & Maintenance This furniture is designed for indoor use. Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. Making matters worse, it expands and contracts unequally along different grain directions. -
Page 7: Maximum Load 25 Lbs
WARNING The maximum diagonal CRT television screen size is 25 inch to 27 inch (63.50 cm to 68.58 cm). For use with televisions weighing 220 lbs or less. Using larger or heavier televisions may cause instability or tip over which can lead to serious injury or even death. -
Page 8: Bottom Shelf
Pre-Assembly Information Model # AXCDRP-07BL Part Description LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 LEFT DIVIDER RIGHT DIVIDER BOTTOM SHELF QTY 1 QTY 1 QTY 1 DOOR (L&R Same) CABINET SHELF CABINET SHELF QTY 2 QTY 2 QTY 1 Warning Label LEG (L&R Same) - Page 9 Pre-Assembly Information Model # AXCDRP-07BL Hardware Description ALLEN KEY SCREW M6 X 30mm ALLEN KEY QTY 24 QTY 1 PHILLIPS SCREW PHILLIPS SCREW ROUND HEAD SHELF SUPPORT M4 X 15mm M3 X 12mm QTY 18 QTY 18 QTY 12 PHILLIPS SCREW MAGNET AND PLATE M3 X 15mm QTY 2 SETS...
- Page 10 Components - Key Diagram Model # AXCDRP-07BL...
- Page 11 Assembly Model # AXCDRP-07BL Step 1 1. Attach 2 Sides AL , AR and 2 Dividers DL , DR to Bottom Shelf C using 12 Allen Key Screws 1 through guide holes (3 screws on each Side and Divider ). 2.
- Page 12 Assembly Model # AXCDRP-07BL Step 3 1. Attach Top B to 2 Sides AL , AR and 2 Dividers DL , DR using 12 Allen Key Screws 1 through guide holes ( 3 screws on each Side and Divider ). 2.
- Page 13 Assembly Model # AXCDRP-07BL Step 4 Warning Label 1. Use Phillips Screws Round Head 5 to attach Back Panel I through guide holes from Back Panels to back of TV Stand. 2. Use Phillips screwdriver to tighten screws. Do not over-tighten.
- Page 14 Assembly Model # AXCDRP-07BL Step 5 First Step Last Step ( after adjust the door )
- Page 15 Assembly Model # AXCDRP-07BL Step 6 shelf level 1 shelf support anti - tipping shelf level 2 shelf level 3 1. Use 4 Shelf Supports 4 for each Shelf part E and F in desired location. 2. 2 Shelf Supports 4 may be used on back top of each Cabinet Shelf E and F as a tipping restraint.
- Page 16 Furniture Tip Over Restraint Assembly WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. Step 7 NOTE: The screwdriver is not included in the hardware pack.
- Page 17 Furniture Anti-Tipping Restraint Instructions Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
