SIMPLIHOME brooklyn + max WyndenHall AXCDRP-17-TK Manual

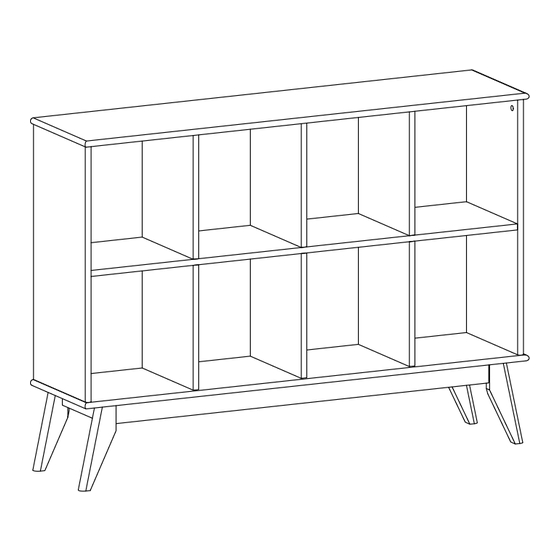

Draper / tierney / baxter mid century 8 cube storage sofa table
Hide thumbs

Advertisement

Quick Links

Download this manual

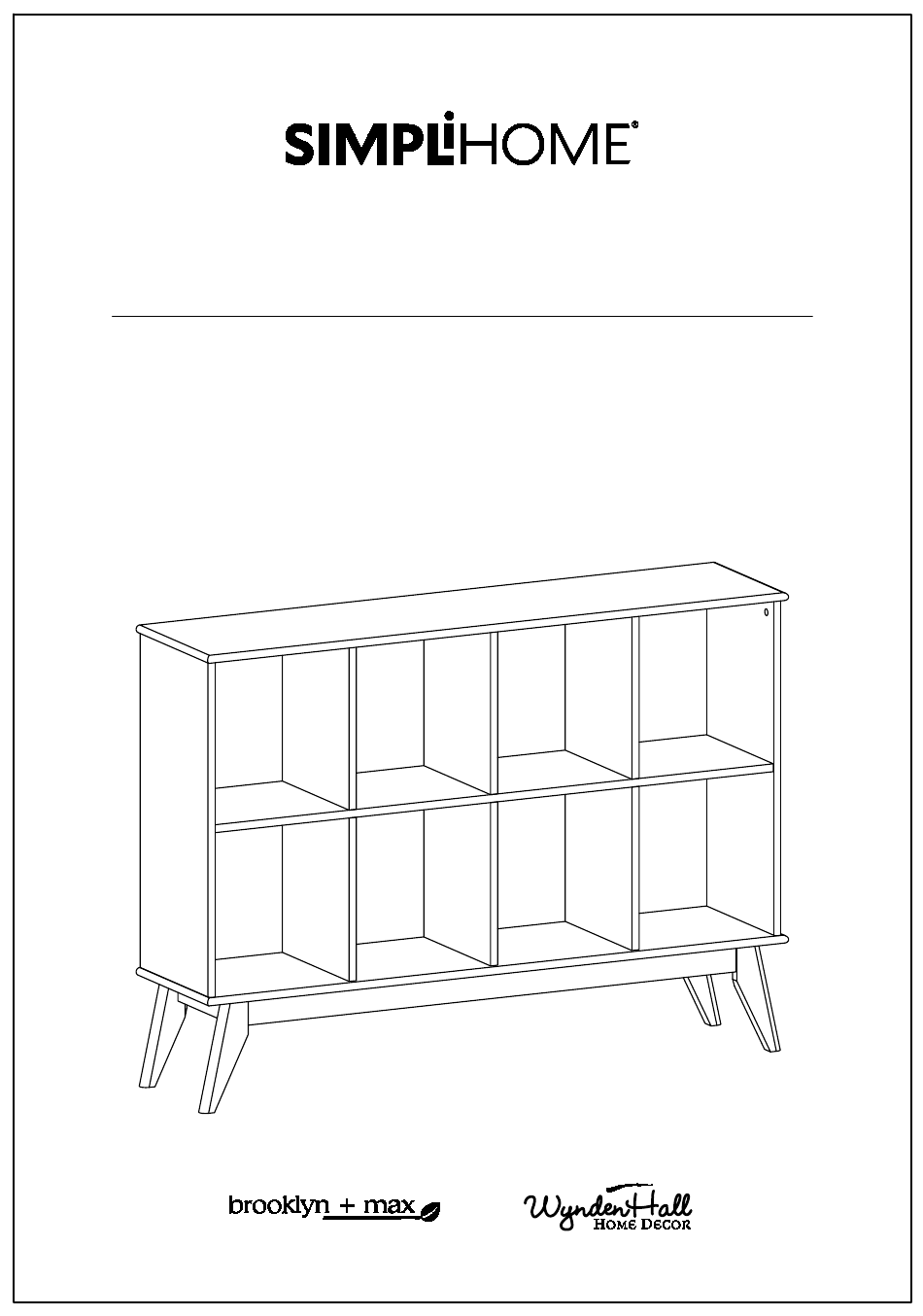

Draper / Tierney / Baxter
Mid Century 8 Cube Storage Sofa Table
Model # AXCDRP-17-TK
TM
TM
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the brooklyn + max WyndenHall AXCDRP-17-TK and is the answer not in the manual?

Questions and answers

Related Manuals for SIMPLIHOME brooklyn + max WyndenHall AXCDRP-17-TK

Summary of Contents for SIMPLIHOME brooklyn + max WyndenHall AXCDRP-17-TK

  • Page 1 Draper / Tierney / Baxter Mid Century 8 Cube Storage Sofa Table Model # AXCDRP-17-TK...
  • Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
  • Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
  • Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.

  • Page 5: Safety Information

    IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint provided with the product.

  • Page 6: Care And Maintenance

    Care & Maintenance This furniture is designed for indoor use. Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. Making matters worse, it expands and contracts unequally along different grain directions.
  • Page 7 Pre-Assembly Information Model # AXCDRP-17-TK Part Description LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 DIVIDER MIDDLE SHELF BOTTOM SHELF QTY 6 QTY 1 QTY 1 Warning Label RIGHT BACK PANEL MIDDLE BACK PANEL LEFT BACK PANEL QTY 1 QTY 2 QTY 1 LEG (L&R Same)
  • Page 8 Pre-Assembly Information Model # AXCDRP-17-TK Hardware Description CAM LOCK PIN ALLEN KEY SCREW CAM LOCK M6 X 30mm ALLEN KEY QTY 24 SETS QTY 1 QTY 18 WOOD DOWEL PHILLIPS SCREW Ø8 X 30mm ROUND HEAD QTY 4 M4 X 15mm QTY 8 SETS QTY 40 Required -...
  • Page 9 Components - Key Diagram Model # AXCDRP-17-TK...
  • Page 10 Assembly Model # AXCDRP-17-TK Step 1 1. Attach Cam Lock Pins 2 into pre-drilled holes on Sides BL , BR , Top A and Shelf D . 2. Use Phillips screwdriver to secure Cam Lock Pins. Do not over-tighten. 3. Insert two Wood Dowel 5 into guide holes on each Side BL , BR . 4.
  • Page 11 Assembly Model # AXCDRP-17-TK Step 2 1. Align Wood Dowels with guide holes and 2. attach three Dividers E to Middle Shelf D . 3. Use six Allen Key Screws 1 to attach Middle Shelf D through guide holes. 4. Use Allen Key 3 to tighten Screws. Do not over-tighten.
  • Page 12 Assembly Model # AXCDRP-17-TK Step 3 1. Align Cam Lock Pins with guide holes and attach three Dividers E to Middle Shelf D . 2. Insert two Cam Locks 2 into guide holes on each Divider E . 3. Use flathead screwdriver to secure Cam Locks. Do not over-tighten.
  • Page 13 Assembly Model # AXCDRP-17-TK Step 4 1. Align Cam Lock Pins with guide holes and attach Sides BL , BR to Middle Shelf D . 2. Insert six Cam Locks 2 into guide holes on Middle Shelf D . 3. Use flathead screwdriver to secure Cam Locks. Do not over-tighten.
  • Page 14 Assembly Model # AXCDRP-17-TK Step 5 1. Align Wood Dowels with guide holes and attach Sides BL , BR and Dividers E to Bottom Shelf C . 2. Use twelve Allen Key Screws 1 to attach Bottom Shelf C through guide holes. 3.
  • Page 15 Assembly Model # AXCDRP-17-TK Step 6 1. Attach Legs H1 , H2 to Bottom Shelf C using eight sets Allen Key Bolts, Lock washers and Washers 4 through guide holes (two sets on each Leg). 2. Use Allen Key 3 to tighten Bolts. Do not over-tighten.
  • Page 16 Assembly Model # AXCDRP-17-TK Step 7 1. Align Cam Lock Pins with guide holes and attach Top A to Sides BL , BR and Dividers E . 2. Insert Cam Locks 2 into guide holes on Sides BL , BR and Dividers E . 3.
  • Page 17 Assembly Model # AXCDRP-17-TK Step 8 Note: Warning Label 1. Use Phillips Screws Round Head 6 to attach Back Panels FL , FR , G through guide holes from Back Panels to the back of bookcase . 2. Use Phillips screwdriver to tighten screws. Do not over-tighten.
  • Page 18 Assembly Model # AXCDRP-17-TK Step 9 1. Insert Plastic Caps 7 into holes Cam Locks on Dividers E .
  • Page 19 Furniture Tip Over Restraint Assembly WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. Step 10 NOTE: The screwdriver is not included in the hardware pack.
  • Page 20 Furniture Anti-Tipping Restraint Instructions Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
