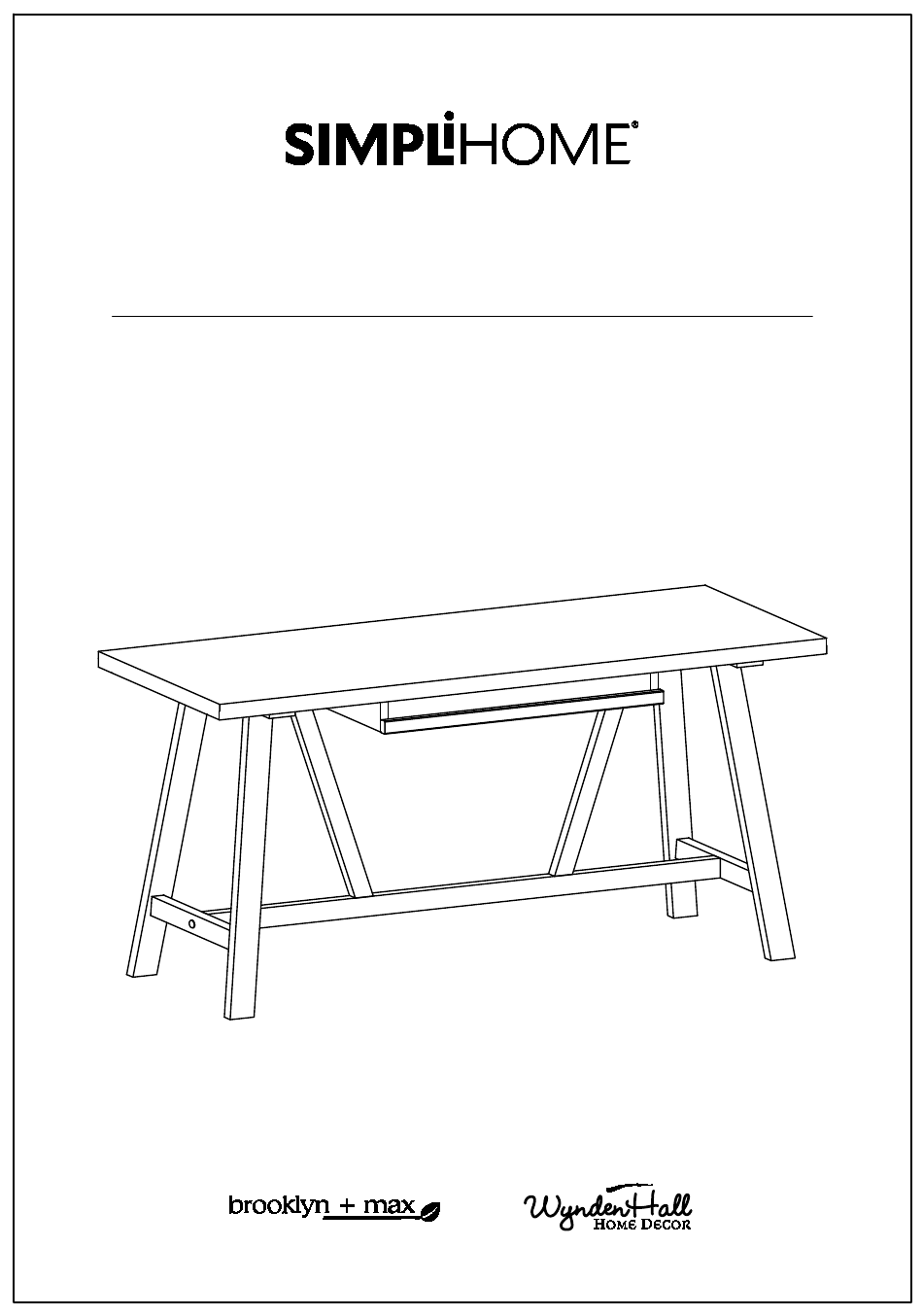

- Page 1 Dylan / Stewart / Everly Desk Model # AXCDLN-08RNAB...
- Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
- Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
- Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.
- Page 5 IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information Identify all the parts and hardware. Do not discard of the packaging until you have checked that you have all of the parts and hardware required. Hardware package may have spare parts.
-
Page 6: Care And Maintenance
Care & Maintenance This furniture is designed for indoor use. Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. Making matters worse, it expands and contracts unequally along different grain directions. - Page 7 Pre-Assembly Information Model # AXCDLN-08RNAB Part Description LEG (L&R Same) QTY 1 QTY 2 SUPPORT BAR (L&R Same) LEG CONNECTOR QTY 2 QTY 1 LEFT DIVIDER RIGHT DIVIDER QTY 1 QTY 1 BACK PANEL KEYBOARD QTY 1 QTY 1...
- Page 8 Pre-Assembly Information Model # AXCDLN-08RNAB Hardware Description ALLEN KEY BOLT: M8 X 30 mm - QTY 14 ALLEN KEY SCREW M7 X 60 mm WASHER: Ø19/Ø12 X 1 mm - QTY 14 QTY 4 QTY 14 SETS ALLEN KEY SCREW M6 X 50 mm ALLEN KEY QTY 4...
- Page 9 Components - Key Diagram Model # AXCDLN-08RNAB...
- Page 10 Assembly Model # AXCDLN-08RNAB Step 1 1. Attach Back Panel G to Dividers EL , ER using Allen Key Bolts 7 . 2. Use Allen Key 4 to tighten Bolts. Do not over-tighten. Step 2 1. Attach Dividers EL , ER to Top A using 8 Allen Key Screws 6 ( 4 Screws on each Side ) .
- Page 11 Assembly Model # AXCDLN-08RNAB Step 3 1. Attach Legs B to Top A using fourteen sets Allen Key Bolts and Washers 1 ( seven sets Bolts and Washers for each Leg ). 2. Use Allen Key 4 to tighten Bolts. Do not over-tighten.
- Page 12 Assembly Model # AXCDLN-08RNAB Step 4 1. Attach Support Bars C to Top A using Allen Key Screws 3 . 2. Use Allen Key 4 to tighten Screws. Do not over-tighten.
- Page 13 Assembly Model # AXCDLN-08RNAB Step 5 1. Align and insert wood dowels on Support Bars C into pre-drilled holes of Leg Connector D using Allen Key Screws 2 connect Leg Connector D to Support Bars C . 2. Align Leg Connector D to Legs B using Allen Key Screws 2 connect Leg Connector D to Legs B .
- Page 14 Assembly Model # AXCDLN-08RNAB Step 6 1. Insert Bolt Caps 5 into exposed bolt holes on Legs B . 2. Use rubber mallet to tap Bolt Caps 5 into drilled holes securely. 3. Insert Keyboard F into glides on assembled desk.
