SIMPLIHOME brooklyn + max WyndenHall AXCDRP-47-TK Manual

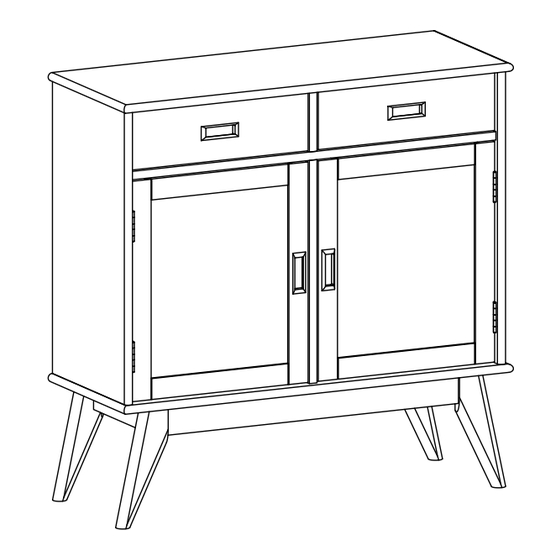

Draper / tierney / baxter mid century entryway storage cabinet
Hide thumbs

Advertisement

Quick Links

Download this manual

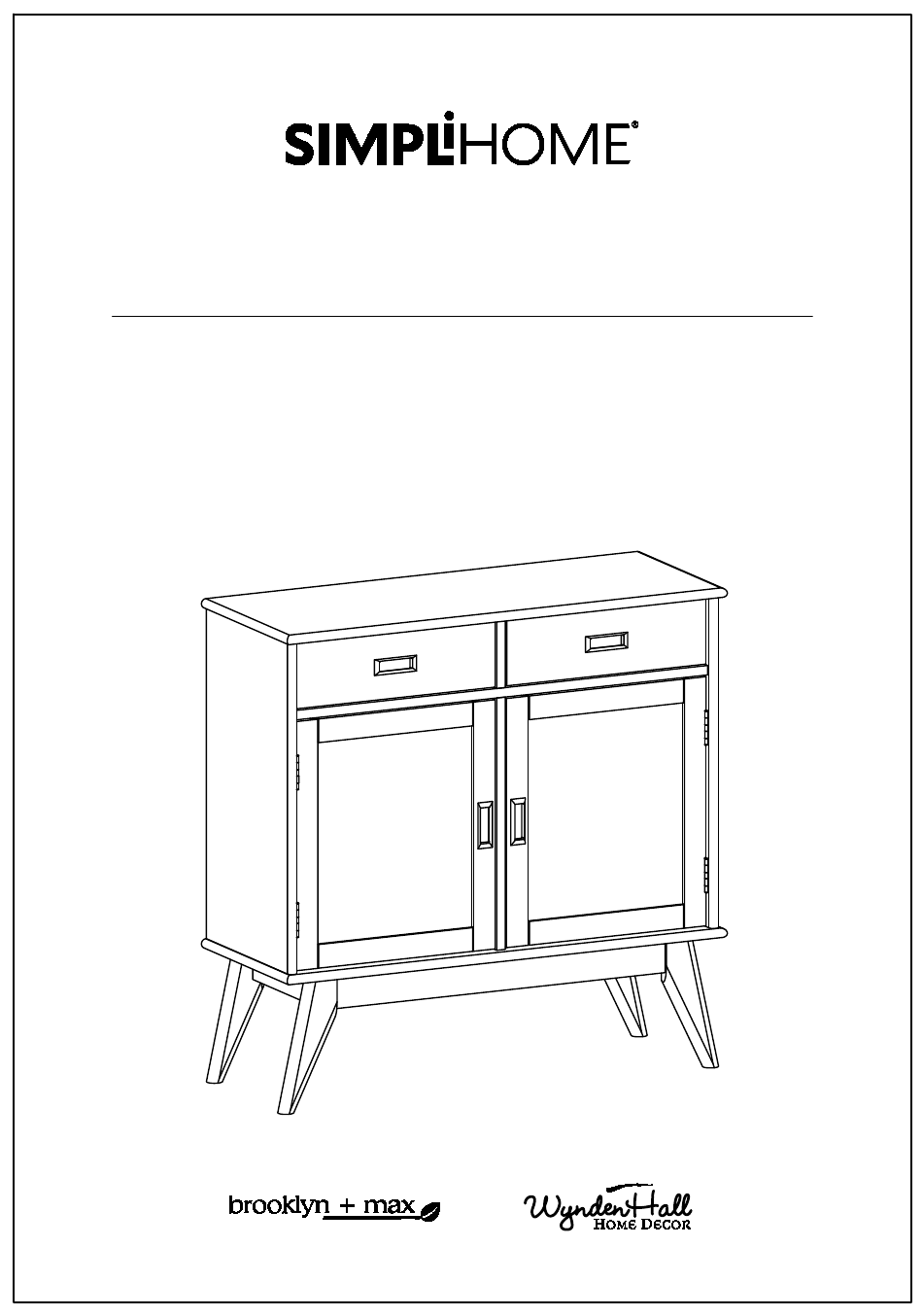

Draper / Tierney / Baxter
Mid Century Entryway Storage Cabinet
Model # AXCDRP-47-TK
TM
TM
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the brooklyn + max WyndenHall AXCDRP-47-TK and is the answer not in the manual?

Questions and answers

Related Manuals for SIMPLIHOME brooklyn + max WyndenHall AXCDRP-47-TK

Summary of Contents for SIMPLIHOME brooklyn + max WyndenHall AXCDRP-47-TK

  • Page 1 Draper / Tierney / Baxter Mid Century Entryway Storage Cabinet Model # AXCDRP-47-TK...
  • Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
  • Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
  • Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.

  • Page 5: Safety Information

    IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint provided with the product.

  • Page 6: Care And Maintenance

    Care & Maintenance This furniture is designed for indoor use. Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. Making matters worse, it expands and contracts unequally along different grain directions.
  • Page 7 Pre-Assembly Information Model # AXCDRP-47-TK Part Description RIGHT SIDE LEFT SIDE QTY 1 QTY 1 QTY 1 BOTTOM SHELF LARGE DIVIDER SMALL DIVIDER QTY 1 QTY 1 QTY 1 Warning Label MIDDLE FRAME LEFT BACK PANEL RIGHT BACK PANEL QTY 1 QTY 1 QTY 1...
  • Page 8 Pre-Assembly Information Model # AXCDRP-47-TK Part Description CABINET SHELF DOOR LEG (L&R Same) QTY 2 QTY 2 QTY 2 LEFT DRAWER SIDE LEG (L&R Same) DRAWER FRONT QTY 2 QTY 2 QTY 2 RIGHT DRAWER SIDE DRAWER BACK DRAWER BOTTOM QTY 2 QTY 2 QTY 2...
  • Page 9 Pre-Assembly Information Model # AXCDRP-47-TK Hardware Description CAM LOCK PIN WOOD DOWEL ALLEN KEY SCREW CAM LOCK M6 X 30mm Ø8 X 30mm QTY 10 SETS QTY 26 QTY 14 PHILLIPS SCREW ALLEN KEY M3 X 15mm MAGNET AND PLATE QTY 1 QTY 8 QTY 2 SETS...
  • Page 10 Components - Key Diagram Model # AXCDRP-47-TK...
  • Page 11 Assembly Model # AXCDRP-47-TK Step 1 1. Attach four Cam Lock Pins 2 into pre-drilled holes on back of Drawer Front K . 2. Use Phillips screwdriver to secure Cam Lock Pins. Do not over-tighten. Step 2 1. Align Cam Lock Pins with guide holes and attach Drawer Sides LL , LR to Drawer Front K .
  • Page 12 Assembly Model # AXCDRP-47-TK Step 3 1. Slide Drawer Bottom N firmly into slots on Drawer Sides LL , LR and Drawer Front K . 2. Align Drawer Back M with Drawer Bottom N and press firmly into slot . 3.
  • Page 13 Assembly Model # AXCDRP-47-TK Step 4 1. Attach two Cam Lock Pins 2 into pre-drilled holes at Middle Frame F . 2. Use Phillips screwdriver to secure Cam Lock Pins. Do not over-tighten. 3. Insert Dowels 3 into guide holes on Middle Frame F , Sides BL , BR and Dividers C , D .
  • Page 14 Assembly Model # AXCDRP-47-TK Step 5 1. Align Wood Dowels with guide holes and attach Divider D to Middle Frame F . 2. Use two Allen Key Screws 1 to attach Middle Frame F through guide holes from Middle Frame F to pre-drilled holes of Divider D . 3.
  • Page 15 Assembly Model # AXCDRP-47-TK Step 6 1. Align Cam Lock Pins with guide holes on Divider C and attach Middle Frame F to Divider C . 2. Insert two Cam Locks 2 into guide holes on Divider C . 3. Use Phillips screwdriver to secure Cam Locks.
  • Page 16 Assembly Model # AXCDRP-47-TK Step 7 1. Align Wood Dowels with guide holes and attach Sides BL , BR to Middle Frame F .
  • Page 17 Assembly Model # AXCDRP-47-TK Step 8 1. Align Wood Dowels with guide holes and attach Sides BL , BR and Divider C to Bottom Shelf E . 2. Use eight Allen Key Screws 1 to attach Bottom Shelf E through guide holes. 3.
  • Page 18 Assembly Model # AXCDRP-47-TK Step 9 1. Attach Legs J1 , J2 to Bottom Shelf E using eight sets Allen Key Bolts, Lock washers and Washers 9 through guide holes (two sets on each Leg). 2. Use Allen Key 4 to tighten Bolts. Do not over-tighten.
  • Page 19 Assembly Model # AXCDRP-47-TK Step 10 1. Align Wood Dowels with guide holes and attach Top B to Sides AL , AR and Dividers D , E . 2. Use three Allen Key Screws 1 to attach each Sides AL , AR through guide holes. 3.
  • Page 20 Assembly Model # AXCDRP-47-TK Step 11 Note: Warning Label 1. Use Phillips Screws Round Head 8 to attach Back Panels GL , GR through guide holes from Back Panels to the back of Sideboard . 2. Use Phillips screwdriver to tighten screws. Do not over-tighten.
  • Page 21 Assembly Model # AXCDRP-47-TK Step 12 First Step Last Step ( after adjust the door )
  • Page 22 Assembly Model # AXCDRP-47-TK Step 13 1. Attach Magnet Plates 5 to top corner of Doors I using Phillips Screws 6 into pre-drilled holes on Doors I . 2. Attach Magnets 5 using Phillips Screws 6 into pre-drilled holes on Divider C . 3.
  • Page 23 Assembly Model # AXCDRP-47-TK Step 14 shelf level 1 shelf level 2 shelf support anti - tipping shelf level 3 1. Use four Shelf Supports 10 for each Cabinet Shelf H in desired location. 2. Two Shelf Supports 10 may be used on back top of each Cabinet Shelf H as a tipping restraint.
  • Page 24 Assembly Model # AXCDRP-47-TK Step 15 1. Insert assembled drawers into glides on assembled cabinet.
  • Page 25 Furniture Tip Over Restraint Assembly WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. Step 16 NOTE: The screwdriver is not included in the hardware pack.
  • Page 26 Furniture Anti-Tipping Restraint Instructions Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
