SIMPLIHOME brooklyn + max WyndenHall AXCDRP41-BL Assembly Instructions Manual

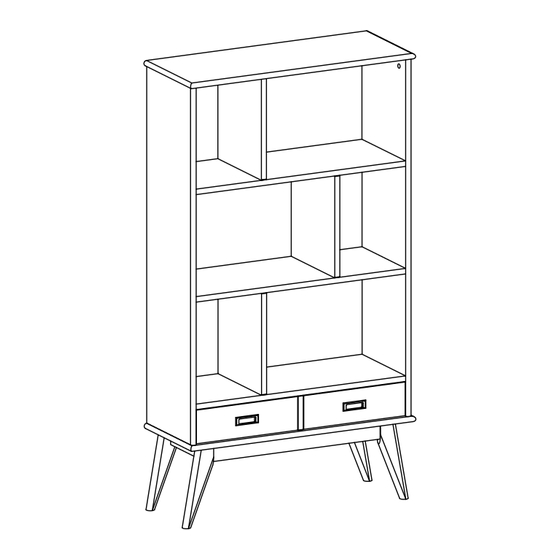

Draper / tierney / baxter mid century wide bookcase and storage unit
Hide thumbs

Advertisement

Table of Contents

Draper / Tierney / Baxter
Mid Century Wide Bookcase and Storage Unit
Model # AXCDRP41-BL
TM
TM
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the brooklyn + max WyndenHall AXCDRP41-BL and is the answer not in the manual?

Questions and answers

Related Manuals for SIMPLIHOME brooklyn + max WyndenHall AXCDRP41-BL

Summary of Contents for SIMPLIHOME brooklyn + max WyndenHall AXCDRP41-BL

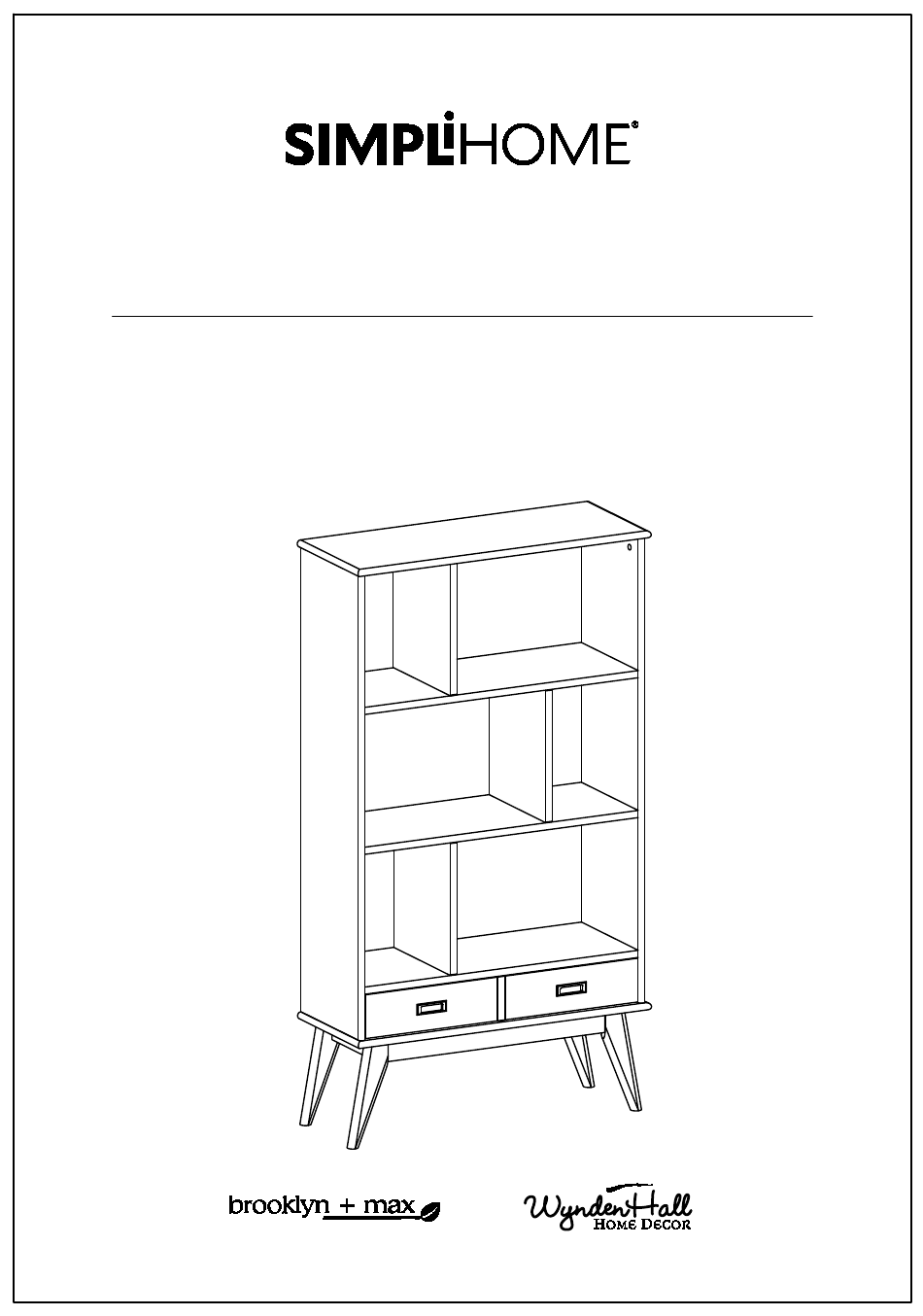

  • Page 1 Draper / Tierney / Baxter Mid Century Wide Bookcase and Storage Unit Model # AXCDRP41-BL...
  • Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
  • Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
  • Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.

  • Page 5: Safety Information

    IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint provided with the product.

  • Page 6: Care And Maintenance

    Care & Maintenance This furniture is designed for indoor use. Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. Making matters worse, it expands and contracts unequally along different grain directions.

  • Page 7: Bottom Shelf

    Pre-Assembly Information Model # AXCDRP41-BL Part Description LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 CABINET SHELF BOTTOM SHELF DIVIDER QTY 1 QTY 1 QTY 3 Warning Label TOP BACK PANEL MIDDLE BACK PANEL CABINET SHELF QTY 1 QTY 2 QTY 2...

  • Page 8: Drawer Bottom

    Pre-Assembly Information Model # AXCDRP41-BL Part Description BOTTOM BACK PANEL LEG (L&R Same) LEG (L&R Same) QTY 1 QTY 2 QTY 2 DRAWER FRONT LEFT DRAWER SIDE RIGHT DRAWER SIDE QTY 2 QTY 2 QTY 2 SMALL DIVIDER DRAWER BACK DRAWER BOTTOM QTY 1 QTY 2...
  • Page 9 Pre-Assembly Information Model # AXCDRP41-BL Hardware Description ALLEN KEY SCREW M6 X 30mm ALLEN KEY QTY 1 QTY 32 PHILLIPS SCREW CAM LOCK PIN ROUND HEAD PLASTIC CAP CAM LOCK M4 X 15mm QTY 15 QTY 38 SETS QTY 26 Required - Flathead screwdriver Phillips screwdriver...
  • Page 10 Components - Key Diagram Model # AXCDRP41-BL...
  • Page 11 Assembly Model # AXCDRP41-BL Step 1 1. Attach four Cam Lock Pins 4 into pre-drilled holes at the back of Drawer Front I . 2. Align Cam Lock Pins with Drawer Sides's guide holes before attach the Cam Lock Pins into Drawer Sides JL , JR . 3.
  • Page 12 Assembly Model # AXCDRP41-BL Step 3 1. Align Drawer Back K with Drawer Bottom L and press firmly into slot. 2. Attach Drawer Back K using two Allen Key Screws 1 through guide holes on each Drawer Side JL , JR . 3.
  • Page 13 Assembly Model # AXCDRP41-BL Step 4 1. Attach Divider D to Cabinet Shelf F using three Allen Key Screws 1 through guide holes from the Shelf F to pre-drilled holes of Divider D . 2. Use Allen Key 3 to tighten Screws. Do not over-tighten. 3.
  • Page 14 Assembly Model # AXCDRP41-BL Step 5 1. Attach Cabinet Shelf F to Divider D using three Allen Key Screws 1 through guide holes from the Shelf F to pre-drilled holes of Divider D . 2. Use Allen Key 3 to tighten Screws. Do not over-tighten.
  • Page 15 Assembly Model # AXCDRP41-BL Step 6 1. Attach three Cam Lock Pins 4 into pre-drilled holes at underneath of Cabinet Shelf F . 2. Align Cam Lock Pins with guide holes and attach Divider D . 3. Insert three Cam Locks 4 into guide holes on Divider D . 4.
  • Page 16 Assembly Model # AXCDRP41-BL Step 7 1. Attach Cabinet Shelf E to Divider D using three Allen Key Screws 1 through guide holes from the Shelf E to pre-drilled holes of Divider D . 2. Use Allen Key 3 to tighten Screws. Do not over-tighten.
  • Page 17 Assembly Model # AXCDRP41-BL Step 8 1. Attach three Cam Lock Pins 4 into pre-drilled holes at the underneath of Cabinet Shelf E . 2. Align Cam Lock Pins with guide holes from M and attach Small Divider M to Cabinet Shelf E .
  • Page 18 Assembly Model # AXCDRP41-BL Step 9 1. Attach twelve Cam Lock Pins 4 into pre-drilled holes on inside of Sides AL , AR (six Cam Lock Pins on each Side). 2. Align Cam Lock Pins with guide holes and attach Cabinet Shelf F . 3.
  • Page 19 Assembly Model # AXCDRP41-BL Step 10 1. Attach Bottom Shelf C to Sides AL , AR and Small Divider M using nine Allen Key Screws 1 through guide holes from the Shelf C to pre-drilled holes of Sides AL , AR and Small Divider M (three Screws on each Side and Small Divider) . 2.
  • Page 20 Assembly Model # AXCDRP41-BL Step 11 1. Attach Legs H1 , H2 to Bottom Shelf C using eight sets Allen Key Bolts, Lock washers and Washers 2 through guide holes (two sets on each Leg). 2. Use Allen Key 3 to tighten Bolts. Do not over-tighten.
  • Page 21 Assembly Model # AXCDRP41-BL Step 12 1. Attach nine Cam Lock Pins 4 into pre-drilled holes at underneath of Top B . 2. Align Cam Lock Pins with guide holes from AL , AR , D and attach Divider D and Sides AL , AR to Top B .
  • Page 22 Assembly Model # AXCDRP41-BL Step 13 NOTE: The screwdriver is not included in the hardware pack. Warning Label 1. Use twenty one Phillips Screws Round Head 5 to attach Back Panels G1 , G2 , G3 through guide holes from Back Panels to the back of bookcase . 2.
  • Page 23 Assembly Model # AXCDRP41-BL Step 14 1. Insert fifteen Plastic Caps 6 into holes Cam Locks on Sides AL , AR and Dividers D . 2. Insert assembly drawer into glides on assembly bookcase.
  • Page 24 Furniture Tip Over Restraint Assembly WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. Step 15 NOTE: The screwdriver is not included in the hardware pack.
  • Page 25 Furniture Anti-Tipping Restraint Instructions Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
