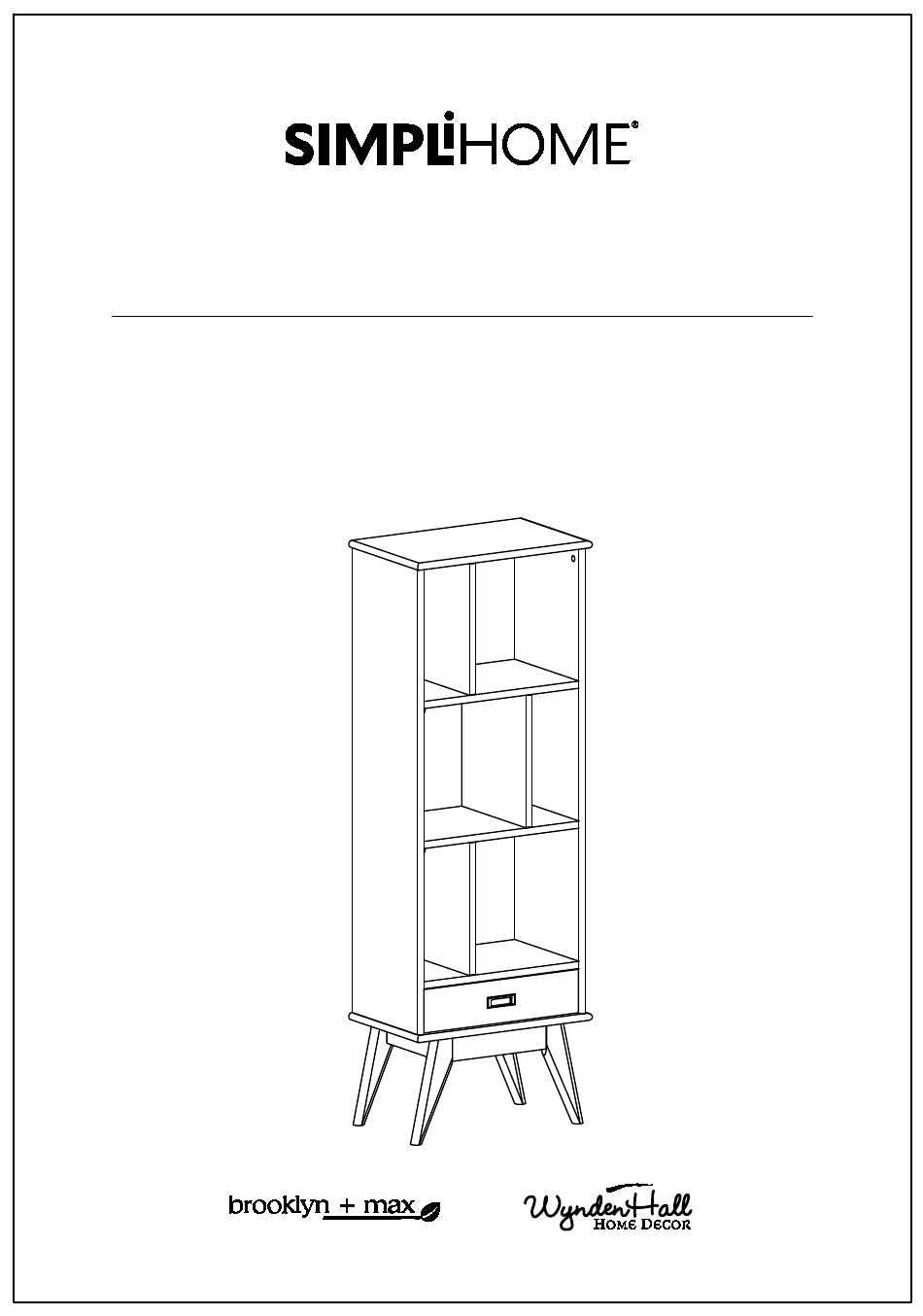

- Page 1 Draper / Tierney / Baxter Mid Century Bookcase and Storage Unit Model # AXCDRP-12-WH...
- Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
- Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
- Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.
-
Page 5: Safety Information
IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint provided with the product. -
Page 6: Care And Maintenance
Care & Maintenance This furniture is designed for indoor use. Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. Making matters worse, it expands and contracts unequally along different grain directions. -
Page 7: Bottom Shelf
Pre-Assembly Information Model # AXCDRP-12-WH Part Description LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 CABINET SHELF BOTTOM SHELF DIVIDER QTY 1 QTY 3 QTY 1 TOP BACK PANEL MIDDLE BACK PANEL CABINET SHELF QTY 1 QTY 2 QTY 2... -
Page 8: Drawer Bottom
Pre-Assembly Information Model # AXCDRP-12-WH Part Description LEG (L&R Same) BOTTOM BACK PANEL LEG (L&R Same) QTY 2 QTY 1 QTY 2 DRAWER FRONT RIGHT DRAWER SIDE LEFT DRAWER SIDE QTY 1 QTY 1 QTY 1 DRAWER BACK DRAWER BOTTOM QTY 1 QTY 1... - Page 9 Pre-Assembly Information Model # AXCDRP-12-WH Hardware Description ALLEN KEY SCREW M6 X 30mm ALLEN KEY QTY 25 QTY 1 PHILLIPS SCREW ROUND HEAD CAM LOCK PIN M4 X 15mm PLASTIC CAP CAM LOCK QTY 21 QTY 15 QTY 31 SETS Required - Flathead screwdriver Phillips screwdriver...
- Page 10 Components - Key Diagram Model # AXCDRP-12-WH Warning Label...
- Page 11 Assembly Model # AXCDRP-12-WH Step 1 1. Attach four Cam Lock Pins 4 into pre-drilled holes at the back of Drawer Front I . 2. Align Cam Lock Pins with Drawer Sides's guide holes before attach the Cam Lock Pins into Drawer Sides JL , JR . 3.
- Page 12 Assembly Model # AXCDRP-12-WH Step 3 1. Align Drawer Back K with Drawer Bottom L and press firmly into slot. 2. Attach Drawer Back K using two Allen Key Screws 1 through guide holes on each Drawer Side JL , JR . 3.
- Page 13 Assembly Model # AXCDRP-12-WH Step 4 1. Attach Divider D to Cabinet Shelf F using three Allen Key Screws 1 through guide holes from the Shelf F to pre-drilled holes of Divider D . 2. Use Allen Key 3 to tighten Screws. Do not over-tighten. 3.
- Page 14 Assembly Model # AXCDRP-12-WH Step 5 1. Attach Cabinet Shelf F to Divider D using three Allen Key Screws 1 through guide holes from the Shelf F to pre-drilled holes of Divider D . 2. Use Allen Key 3 to tighten Screws. Do not over-tighten.
- Page 15 Assembly Model # AXCDRP-12-WH Step 6 1. Attach three Cam Lock Pins 4 into pre-drilled holes at underneath of Cabinet Shelf F . 2. Align Cam Lock Pins with guide holes and attach Divider D . 3. Insert three Cam Locks 4 into guide holes on Divider D . 4.
- Page 16 Assembly Model # AXCDRP-12-WH Step 7 1. Attach Cabinet Shelf E to Divider D using three Allen Key Screws 1 through guide holes from the Shelf E to pre-drilled holes of Divider D . 2. Use Allen Key 3 to tighten Screws. Do not over-tighten.
- Page 17 Assembly Model # AXCDRP-12-WH Step 8 1. Attach twelve Cam Lock Pins 4 into pre-drilled holes on inside of Sides AL , AR ( six Cam Lock Pins on each Side). 2. Align Cam Lock Pins with guide holes and attach Cabinet Shelf F . 3.
- Page 18 Assembly Model # AXCDRP-12-WH Step 9 1. Attach Bottom Shelf C to Sides AL , AR using six Allen Key Screws 1 through guide holes from the Shelf C to pre-drilled holes of Sides AL , AR (three Screws on each Side) . 2.
- Page 19 Assembly Model # AXCDRP-12-WH Step 11 1. Attach nine Cam Lock Pins 4 into pre-drilled holes at the underneath of Top B . 2. Align Cam Lock Pins with guide holes from AL , AR , D and attach Divider D and Sides AL , AR to Top B .
- Page 20 Assembly Model # AXCDRP-12-WH Step 12 NOTE: The screwdriver is not included in the hardware pack. Warning Label 1. Using twenty one Phillips Screws Round Head 5 to attach Back Panels G1 , G2 , G3 through guide holes from Back Panels to the back of bookcase . 2.
- Page 21 Assembly Model # AXCDRP-12-WH Step 13 1. Insert fifteen Plastic Caps 6 into holes Cam Locks on Sides AL , AR and Dividers D . 2. Insert assembly drawer into glides on assembly bookcase.
- Page 22 Furniture Tip Over Restraint Assembly WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. Step 14 NOTE: The screwdriver is not included in the hardware pack.
- Page 23 Furniture Anti-Tipping Restraint Instructions Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
