SIMPLIHOME DRAPER AXCDRP41-WH Manual

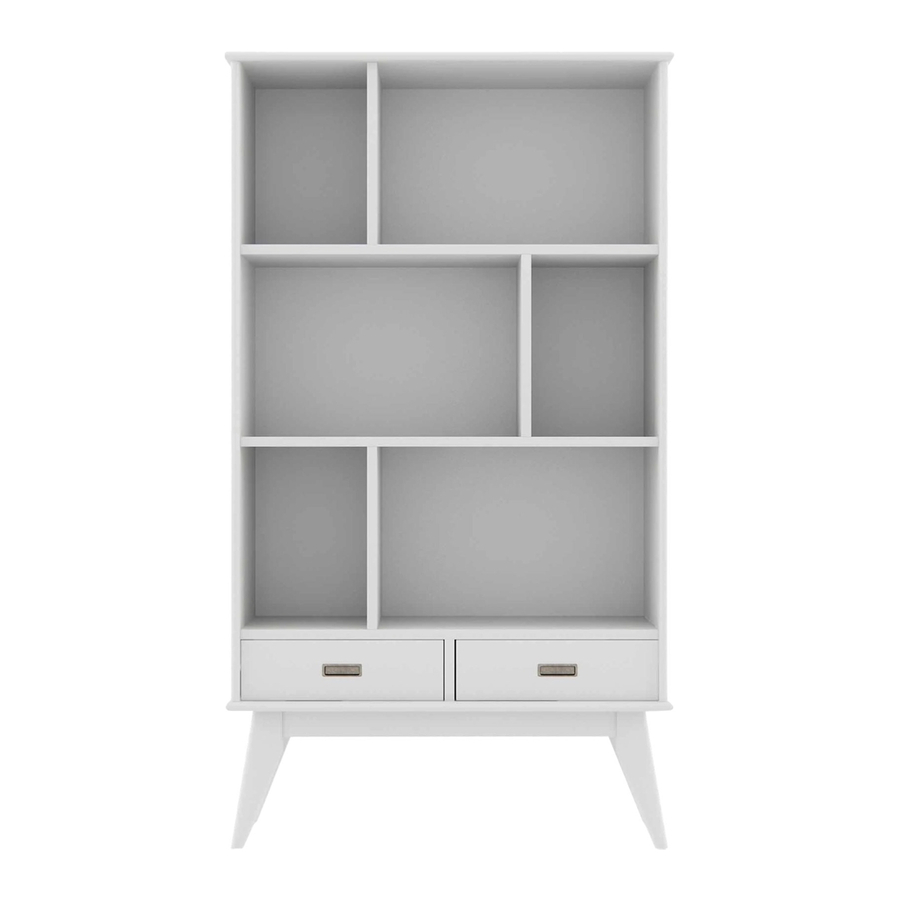

Mid century wide bookcase and storage unit
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
TM
S IMP HOME
®
TM
DRAPER / BAXTER / TIERNEY
MODEL # AXCDRP41-WH
1/24

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DRAPER AXCDRP41-WH and is the answer not in the manual?

Questions and answers

Related Manuals for SIMPLIHOME DRAPER AXCDRP41-WH

Summary of Contents for SIMPLIHOME DRAPER AXCDRP41-WH

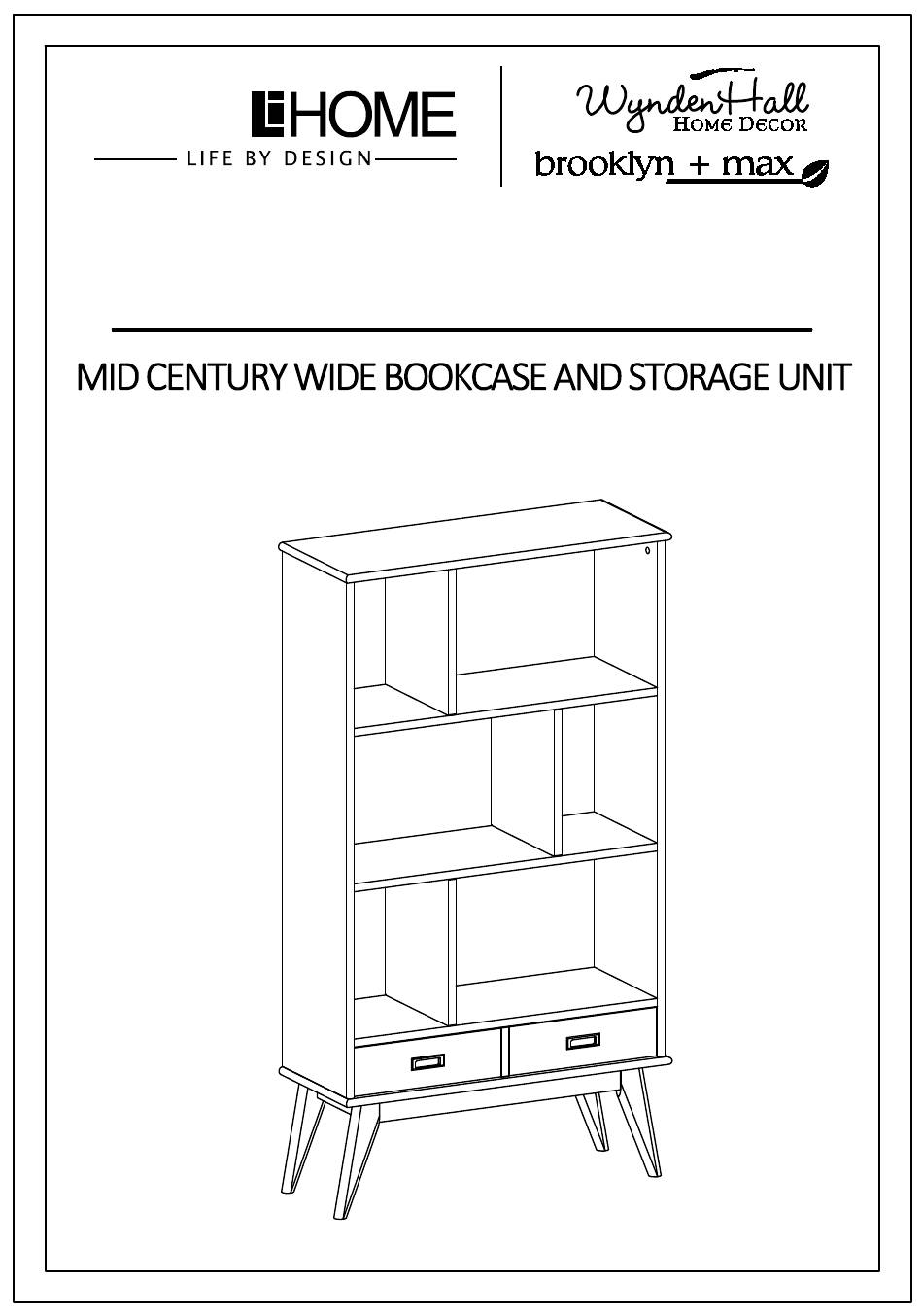

  • Page 1 S IMP HOME ® DRAPER / BAXTER / TIERNEY MODEL # AXCDRP41-WH 1/24...
  • Page 2 S IMP HOME ® Questions, problems, assembly help, missing parts? No need to return the product, we will gladly help and ship your replacement parts free of charge Please call Customer Service at 1-866-518-0120 ext. 262 Monday to Friday between 9 am –4 pm EST or go to www.simpli-home.com/parts request In order to assist you in a timely manner, please have the following...

  • Page 3: Safety Information

    IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. SAFETY INFORMATION CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint provided with the product.

  • Page 4: Care And Maintenance

    IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. CARE and MAINTENANCE Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks.

  • Page 5: Pre-Assembly Information

    PRE-ASSEMBLY INFORMATION MODEL # AXCDRP41-WH PART DESCRIPTION LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 CABINET SHELF BOTTOM SHELF DIVIDER QTY 1 QTY 1 QTY 3 Warning Label TOP BACK PANEL MIDDLE BACK PANEL CABINET SHELF QTY 1 QTY 2 QTY 2 NEED HELP? For help with assembly or if you are missing a part,...
  • Page 6 PRE-ASSEMBLY INFORMATION MODEL # AXCDRP41-WH PART DESCRIPTION BOTTOM BACK PANEL LEG (L&R Same) LEG (L&R Same) QTY 1 QTY 2 QTY 2 DRAWER FRONT LEFT DRAWER SIDE RIGHT DRAWER SIDE QTY 2 QTY 2 QTY 2 SMALL DIVIDER DRAWER BACK DRAWER BOTTOM QTY 1 QTY 2...

  • Page 7: Hardware Description

    PRE-ASSEMBLY INFORMATION MODEL # AXCDRP41-WH HARDWARE DESCRIPTION ALLEN KEY SCREW ALLEN KEY M6 X 30mm QTY 32 QTY 1 PHILLIPS SCREW CAM LOCK PIN ROUND HEAD PLASTIC CAP CAM LOCK M4 X 15mm QTY 15 QTY 38 SETS QTY 26 Required - Flathead screwdriver Phillips screwdriver...
  • Page 8 COMPONENTS-KEY DIAGRAM MODEL # AXCDRP41-WH 8/24...
  • Page 9 ASSEMBLY MODEL # AXCDRP41-WH STEP-1 1. Attach four Cam Lock Pins 4 into pre-drilled holes at the back of Drawer Front I . 2. Align Cam Lock Pins with Drawer Sides's guide holes before attach the Cam Lock Pins into Drawer Sides JL , JR . 3.
  • Page 10 ASSEMBLY MODEL # AXCDRP41-WH STEP-3 1. Align Drawer Back K with Drawer Bottom L and press firmly into slot. 2. Attach Drawer Back K using two Allen Key Screws 1 through guide holes on each Drawer Side JL , JR . 3.
  • Page 11 ASSEMBLY MODEL # AXCDRP41-WH STEP-4 1. Attach Divider D to Cabinet Shelf F using three Allen Key Screws 1 through guide holes from the Shelf F to pre-drilled holes of Divider D . 2. Use Allen Key 3 to tighten Screws. Do not over-tighten. 3.
  • Page 12 ASSEMBLY MODEL # AXCDRP41-WH STEP-5 1. Attach Cabinet Shelf F to Divider D using three Allen Key Screws 1 through guide holes from the Shelf F to pre-drilled holes of Divider D . 2. Use Allen Key 3 to tighten Screws. Do not over-tighten. 12/24...
  • Page 13 ASSEMBLY MODEL # AXCDRP41-WH STEP-6 1. Attach three Cam Lock Pins 4 into pre-drilled holes at underneath of Cabinet Shelf F . 2. Align Cam Lock Pins with guide holes and attach Divider D . 3. Insert three Cam Locks 4 into guide holes on Divider D . 4.
  • Page 14 ASSEMBLY MODEL # AXCDRP41-WH STEP-7 1. Attach Cabinet Shelf E to Divider D using three Allen Key Screws 1 through guide holes from the Shelf E to pre-drilled holes of Divider D . 2. Use Allen Key 3 to tighten Screws. Do not over-tighten. 14/24...
  • Page 15 ASSEMBLY MODEL # AXCDRP41-WH STEP-8 1. Attach three Cam Lock Pins 4 into pre-drilled holes at the underneath of Cabinet Shelf E . 2. Align Cam Lock Pins with guide holes from M and attach Small Divider M to Cabinet Shelf E . 3.
  • Page 16 ASSEMBLY MODEL # AXCDRP41-WH STEP-9 1. Attach twelve Cam Lock Pins 4 into pre-drilled holes on inside of Sides AL , AR (six Cam Lock Pins on each Side). 2. Align Cam Lock Pins with guide holes and attach Cabinet Shelf F . 3.
  • Page 17 ASSEMBLY MODEL # AXCDRP41-WH STEP-10 1. Attach Bottom Shelf C to Sides AL , AR and Small Divider M using nine Allen Key Screws 1 through guide holes from the Shelf C to pre-drilled holes of Sides AL , AR and Small Divider M (three Screws on each Side and Small Divider) . 2.
  • Page 18 ASSEMBLY MODEL # AXCDRP41-WH STEP-11 1. Attach Legs H1 , H2 to Bottom Shelf C using eight sets Allen Key Bolts, Lock washers and Washers 2 through guide holes (two sets on each Leg). 2. Use Allen Key 3 to tighten Bolts. Do not over-tighten. 18/24...
  • Page 19 ASSEMBLY MODEL # AXCDRP41-WH STEP-12 1. Attach nine Cam Lock Pins 4 into pre-drilled holes at underneath of Top B . 2. Align Cam Lock Pins with guide holes from AL , AR , D and attach Divider D and Sides AL , AR to Top B .
  • Page 20 ASSEMBLY MODEL # AXCDRP41-WH STEP-13 NOTE: The screwdriver is not included in the hardware pack. Warning Label 1. Use twenty one Phillips Screws Round Head 5 to attach Back Panels G1 , G2 , G3 through guide holes from Back Panels to the back of bookcase . 2.
  • Page 21 ASSEMBLY MODEL # AXCDRP41-WH STEP-14 1. Insert fifteen Plastic Caps 6 into holes Cam Locks on Sides AL , AR and Dividers D . 2. Insert assembly drawer into glides on assembly bookcase. 21/24...
  • Page 22 FURNITURE TIP OVER RESTRAINT ASSEMBLY WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. STEP-15 NOTE: The screwdriver is not included in the hardware pack.
  • Page 23 FURNITURE TIP OVER RESTRAINT ASSEMBLY Furniture Tip Over Restraint Instructions: Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.

  • Page 24: Warranty

    S IMP HOME ® WARRANTY Thank you for purchasing a Simpli Home – Wyndenhall – Brooklyn + Max product. These products have been made to demanding, high-quality standards and are guaranteed for domestic use against manufacturing faults for a period of 12 months from the date of purchase. This warranty does not affect your statutory rights.
