8.9

Iridium Edge

The Iridium Edge antenna is a satellite receiver with a data modem, power supply and antenna in a sealed
enclosure. It is able to receive Iridium Burst data and also receive / transmit Iridium Short Burst Data (SBD).
The maximum cable length is 100m, with 25m, 50m and 75m variants available.

8.10 Iridium Edge IMEI Number

Bef ore an installation, the Iridium Edge's IMEI number should be noted. The Iridium Edge's IMEI number is the
network address f or the Iridium Edge, a unique serialised number.
The IMEI number is located on the bottom of the Iridium Edge as per the picture below. This can also be queried
through C-Controller once the C-NavX1 is powered on and the Iridium Edge cable connected.
The Iridium Edge includes f our additional IMEI labels. These labels are located on the bottom of the Iridium Edge
shipping box as per the f igure below. If the Iridium Edge is mounted in a dif f icult to reach place or if its IMEI label
is covered, the spare IMEI label can be optionally af f ixed to an accessible location such that the IMEI can be
easily read.
The IMEI number is also available on C-Nav sof tware, Receiver Inf ormation menu
CNAV-MAN-061
Revision B
C-NavX1 GNSS Receiver User Manual

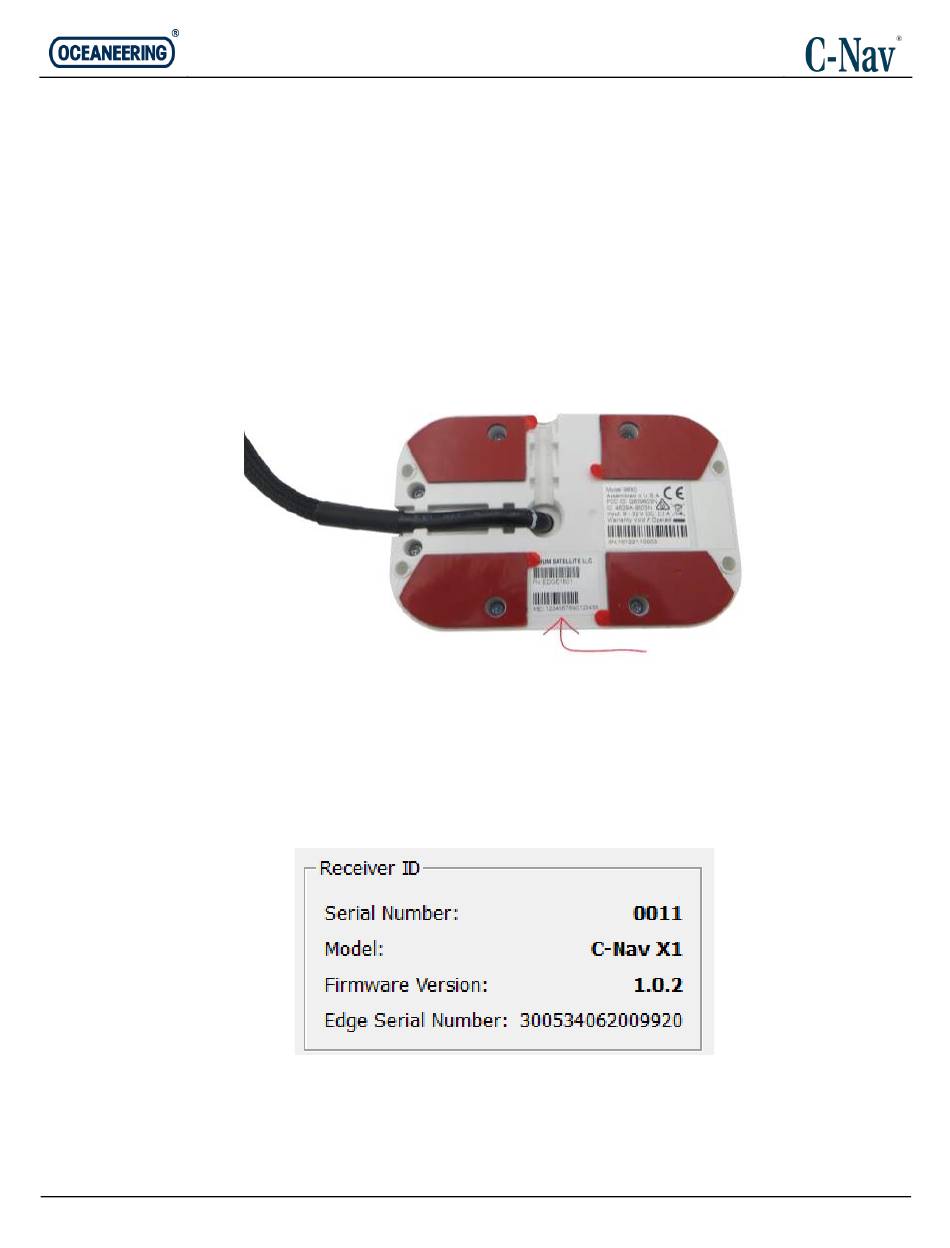

Figure 28: Location of Iridium Edge IMEI Number

Figure 29: Receiver Information section for Edge SN
