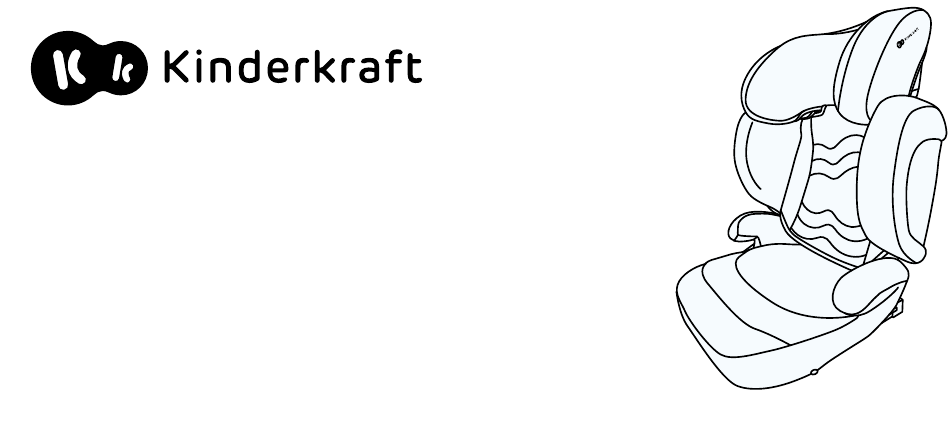

- Page 1 XPAND 2 i-Size XPAND 2 PRO i-Size USER GUIDE MODEL: XPAND 2 i-Size/ XPAND 2 PRO i-Size ECE R129.03 v.2.1 MODEL: I-GUARD ECE.R129.03 ver. 1.2...

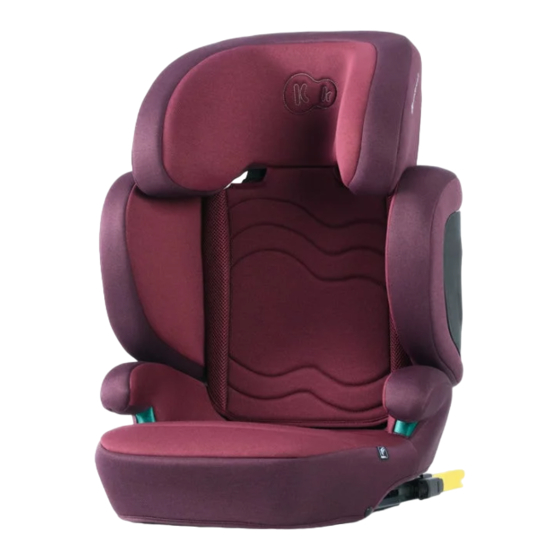

- Page 2 UN/ECE Regulation No. 129 concerning the approval of child restraint systems (UN/ECE R129/03). ISOFIX The XPAND 2 i-Size and XPAND 2 PRO i-Size car seats are designed for transporting children with a height between 100-150 cm (up to approx. 12 Three-point car seat years of age) forward facing.
-
Page 3: Safety Instructions
2.0 Safety instructions Please take a few minutes to read this instruction manual in order to ensure the proper safety of your child. • The car seat MUST NOT be installed on the vehicle seats mounted backwards or sideways. • The car seat MUST NOT be placed on the vehicle seats with an active front air-bag. - Page 4 !WARNINGS! DO NOT make any modifications to the car seat or use it with the components from other manufacturers. Protect the car seat from direct sunlight, otherwise your child may be Failure to install the car seat in accordance with the manufacturer's burnt by its heated parts.
- Page 5 DO NOT use the car seat if its parts are damaged or loose. On some vehicle seats made of delicate materials, the use of car seats may leave marks and/or discolouration. In order to prevent it, you can In the event of an emergency, it is important to quickly unfasten the car seat place a blanket, towel or similar product under the car seat.
- Page 6 3.0 Unfolding the backrest of the car seat 1. While keeping your hand on the seat, pull the car seat backrest outwards. 2. You will hear a click indicating that the backrest is locked. 3. Verify that the latch on the back of the car seat is in the correct position.
- Page 7 4.0 Securing the child in the car seat 4.1 Headrest height adjustment 1. Grasp the headrest adjustment lever located on the back of the headrest and pull it gently upwards. 2. Set the headrest to one of the 15 available positions and release the adjustment lever.
- Page 8 4.2 Correct headrest adjustment When adjusting the headrest, make sure that the shoulder safety harness passes between the child's shoulder and neck (through the middle of the collarbone). The harness cannot press against the child's neck or slip off the shoulder. When adjusting the headrest, the backrest of the seat and the sides expand to match the child's height and shoulder width.
-
Page 9: Adjusting The Backrest
4.3 Adjusting the backrest The backrest of the car seat is movable, thanks to which it is possible to adjust it accurately to the plane of the vehicle seat. Adjust the position of the car seat backrest, until it is snug against the vehicle seat. - Page 10 5.0 Installation in the vehicle 5.1 Installation using the ISOFIX connectors and vehicle three-point seat belt. 1. Press the ISOFIX system release buttons and slide them out as far as possible. 2. Grasp the car seat with both hands and insert both latches into the places of installation on the vehicle seat.
- Page 11 4. Put the child in the car seat 5. Pass the car seat belt through the car seat shoulder guide and waist guides, and then fasten it. You should hear a characteristic "click". 6. Adjust the headrest to your child's height using the adjustment lever. The correct positioning of the headrest is described in detail in section 4.2 7.
- Page 12 5.2 Installation using the vehicle three-point seat belt. Make sure that the backrest of the car seat rests flat against the backrest of the vehicle seat. 1. Put the child in the car seat 2. Pass the car seat belt through the car seat shoulder guide and waist guides, and then fasten it.
- Page 13 6.0 Removing the car seat (ISOFIX installing system) 1. Press the ISOFIX release buttons on both ISOFIX latches simultaneously. 2. When the latches are released and the ISOFIX button indicators turn red, slide the car seat out of the ISOFIX guides. 3.
- Page 14 7.0 Folding the car seat for storage: Note! Folding the car seat is possible only when at least eleventh headrest adjustment option is selected 1. Select at least eleventh headrest adjustment option 2. Pull up the backrest folding strap at the back of the car seat. 3.
-
Page 15: Removing The Cover
Removing the cover Removing the cover from the headrest and backrest: 1. Move the headrest to the highest position 2. Grab the lower part of the cover near the shoulder guides on the headrest and gently slide the fabric away from the bottom part of the headrest 3. - Page 16 Removing the cover from the seat: 1. Move the headrest to the highest position 2.Unfasten the 4 snap fasteners located on the sides and back of the seat (2 on each side of the seat). 3. Pull the fabric off the armrests and the seat.
-
Page 17: Installing The Cover
7.2 Installing the cover Installing the cover on the seat: 1. Stretch the fabric over the seat and armrests. 2. Unfasten the 4 snap fasteners located on the sides and back of the seat (2 on each side of the seat). - Page 18 Installing the cover on the headrest and backrest: 1. Move the headrest to the highest position 2. Take the cover and, pulling it slightly, stretch it over the headrest 3. Starting from the top, slide the fabric of the sides of the car seat under the plastic sides, stretching the fabric slightly.
- Page 19 • Prolonged sun exposure of the cover is prohibited. • Plastic parts can be cleaned with soap and water. • Do not use aggressive cleaning agents (such as bleach/stain removers). The full text of the Warranty Terms and Conditions is available at WWW.KINDERKRAFT.COM...
