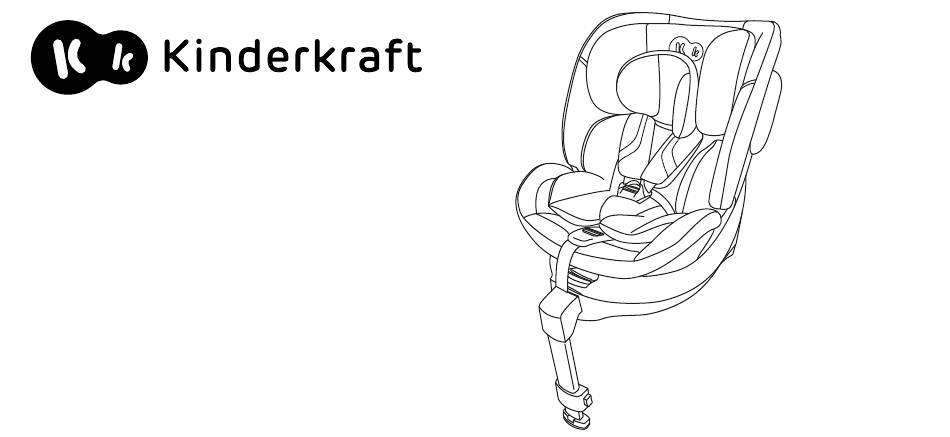

XRIDER 2 i-Size
USER GUIDE
MODEL: XRIDER 2 i-Size
ECE R129.03 v.1.0

Advertisement

loading
Need help?

Need help?

Do you have a question about the XRIDER 2 i-Size and is the answer not in the manual?

Questions and answers

Related Manuals for Kinderkraft XRIDER 2 i-Size

Summary of Contents for Kinderkraft XRIDER 2 i-Size

  • Page 1 XRIDER 2 i-Size USER GUIDE MODEL: XRIDER 2 i-Size ECE R129.03 v.1.0...
  • Page 2 1.0 Usage ATTENTION! Product graphics serve an illustrative function only! The car seat has been designed, tested and approved for use in accordance with the requirements of UN/ECE Regulation No. 129 concerning the approval of child-restraint systems (UN/ECE R129/03). Do not set the car seat in a forward facing position until your child is 15 months old and 76 cm tall.
  • Page 3 Hight of the child Car seat positioning Car seat mounting 40cm–105cm ISOFIX + support leg + internal safety harness ISOFIX + support leg + internal safety 76cm-105cm harness ISOFIX + three-point car seat belt 100cm-150cm three-point car seat belt...

  • Page 4: Safety Instructions

    2.0 Safety instructions Please take a few minutes to read this instruction manual in order to ensure the proper safety of your child. • The car seat MUST NOT be installed on the vehicle seats mounted backwards or sideways. • The car seat can only be installed on the vehicle seat with a three-point car seat belt.
  • Page 5 !WARNING! NEVER leave your child unattended in the car seat. Make sure that the luggage and other objects are adequately secured, in particular on the rear parcel shelf, as they can cause injuries in the Please refer to your vehicle operating manual for information on the event of a collision.
  • Page 6 DO NOT use the car seat if its parts are damaged or loose. On some vehicle seats made of delicate materials, the use of car seats may leave marks and/or discolouration. In order to prevent it, you can In the event of an emergency, it is important to quickly unfasten the car seat place a blanket, towel or similar product under the car seat.
  • Page 7 3.0 Securing the child 3.1 Installation of insert Baby insert improves protection level and comfort. The insert should be used until the child reaches 75cm. 1. Connect the headrest part of the insert with the rest of it using snap fasteners.
  • Page 8 3.2 Securing the child with the internal safety harness 1. Press the safety harness adjustment button while pulling the harness straps. Remember! Do not pull on the shoulder pads. 2. Unfasten the safety harness 3. Move the safety harness to the sides of the car seat 4.
  • Page 9 3.3 Tightening the safety harness 1. Remove any slack from the waist part of the safety harness by pulling it up using the shoulder part. 2. Pull the adjustment strap until the harness lies flat on your child's body. IMPORTANT! Make sure that the safety harness is not twisted.
  • Page 10 Adjust the appropriate height of the shoulder part of the safety harness so that the harness enters the car seat backrest flat, horizontally, right above the child's shoulders.
  • Page 11 3.4 Height of the headrest 1. Loosen the safety harness straps fully by pressing the button and pulling the safety harness straps Remember! Do not pull on the shoulder pads. 2. Grasp the headrest adjustment lever located on the back of the headrest and pull it gently upwards 3.
  • Page 12 3.5 Seat inclination adjustment mechanism 1. Pull the seat inclination adjustment lever 2. Adjust the seat inclination angle and release the lever in the required position (one of four possible options) 3. Move the seat slightly until you hear a distinct "click" sound. Important! There are four seat inclination options, both in forward facing and rearward facing positions.
  • Page 13 3.6 Easy spin mechanism The easy spin mechanism function helps to conveniently position the child or take the child out of the car seat. 1. Pull the rotation lever located on the base of the car seat. 2. Rotate the car seat to the desired direction, then release the lever. You will hear a "click"...
  • Page 14 4.0 Installation in the vehicle 4.1 ISOFIX installation Before placing the car seat in the vehicle, unfold the support leg. 1. The car seat together with the unfolded support leg should be placed on the vehicle seat. Press both sides of the ISOFIX release button and extend the ISOFIX connector arms to their maximum length.
  • Page 15 4.2 Installing the support leg 1. Pull the car seat support leg out of the base and unfold it fully. 2. Press the leg height adjustment buttons on both sides of the leg (this will release the extension lock of the leg, which will automatically extend) 3.
  • Page 16 ATTENTION! Never install the support leg on the storage box in the floor of the car - the storage box can break during an accident; if in doubt, refer to the vehicle manual. ATTENTION! The support leg must never be unsupported, and no objects can be placed under it.
  • Page 17 5.0 Stowing away the five-point safety harness 1. Loosen the car seat belt as much as possible by pressing the button and pulling on the car seat belt. Remember! Do not pull on the shoulder pads. 2. Set the headrest at the highest position 3.
  • Page 18 7. Fasten the five-point internal safety harness 8. Open the compartment cover and then put the fastened safety harness into the compartment. 9. Arrange the safety harness flat along the backrest and close the compartment cover. 10. Cover the car seat backrest by fastening the fasteners on the edges of the fabric.
  • Page 19 6.0 Installation of the car seat Note! The car seat should be placed directly on the vehicle seat. 6.1 Children with a height ranging from 40 to 105 cm using the ISOFIX installing system with a support leg. 1. Unfold the support leg 2.
  • Page 20 6. Place your child in the car seat 7. Secure the child with the internal safety harness IMPORTANT! If the child has already reached 76 cm, remove the insert before placing the child in the car seat.
  • Page 21 6.2 Children with a height ranging from 76 to 105 cm using the ISOFIX installing system with a support leg. 1. Unfold the support leg 2. Install the car seat on the vehicle seat forward facing using ISOFIX connectors. (if the car seat is already installed rearward facing, rotate it using an easy spin mechanism to a forward facing position) 3.
  • Page 22 6. Place your child in the car seat 7. Secure the child with the internal safety harness...
  • Page 23 6.3 Children between 100 and 150 cm - using the ISOFIX connectors and a three-point car seat belt. Important! When using the car seat for the 100-150 cm range, the car seat must be placed in a vertical position. 1. Install the car seat on the vehicle seat forward facing using ISOFIX connectors 2.
  • Page 24 7. Guide the shoulder belt through the green guide of the shoulder belt. 8. Guide the car seat belt through both waist belt guides. Fasten the car seat belt. You will hear a characteristic "click". Shoulder belt guide Waist belt guide...
  • Page 25 6.4 Children between 100 and 150 cm tall - using a three-point car seat belt. Important! When using the car seat for the 100-150 cm range, the car seat must be placed in a vertical position. 1. Install the car seat forward facing on the vehicle seat. 2.
  • Page 26 7. Guide the shoulder belt through the green guide of the shoulder belt. 8. Guide the car seat belt through both waist belt guides. Fasten the car seat belt. You will hear a characteristic "click". Shoulder belt guide Waist belt guide...
  • Page 27 7.0 Removing the car seat (ISOFIX installing system+support leg) 1. Fold the support leg extension by pressing both buttons on the sides of the leg extension and slide it up, tucking it into the rest of the leg. You will hear a "click" which means the leg has been tucked inside. 2.

  • Page 28: Removing The Cover

    7.1 Removing the cover 1. Remove the insert 2. Loosen the car seat belt completely by pressing the button and pulling on the car seat belt. Remember! Do not pull on the shoulder pads. 3. Move the headrest to the highest position 4.

  • Page 29: Installing The Cover

    7. Starting at the bottom of the car seat, carefully remove the cover 8. While stretching the material, slide it off the waist part guides and the safety harness adjustment button. 9. Pull the rubber bands on the back of the car seat backrest to remove them from the hooks.
  • Page 30 • Do not use aggressive cleaning agents (such as solvents). • The safety harness can be cleaned in lukewarm soapy water. Warning! You must never remove the metal clips from the safety harness. The full text of the Warranty Terms and Conditions is available on the website WWW.KINDERKRAFT.COM...
