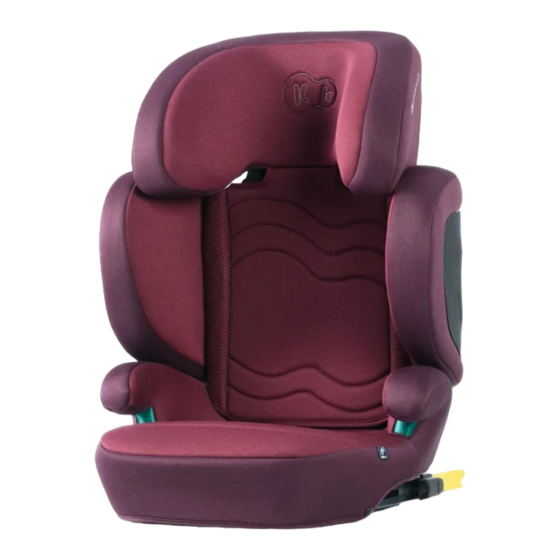

- Page 1 XPAND 2 i-Size USER GUIDE MODEL: XPAND 2 i-Size ECE R129.03 ver. 1.1 MODEL: I-GUARD ECE.R129.03 ver. 1.2...
-
Page 2: Car Seat Components
The car seat has been designed, tested and approved for use in accordance with the requirements of UN/ECE Regulation No. 129 concerning the approval of child restraint systems (UN/ECE R129/03). The XPAND 2 i-Size car seat is designed for transporting children with a height between 100-150 cm (up to approx. 12 years of age). -
Page 3: Safety Instructions
3.0 Safety instructions WARNINGS Please take a few minutes to read this instruction manual in order to ensure the proper safety of your child. Many injuries that are easy to avoid are caused by reckless and improper use of the car seat. - Page 4 • The entire backrest surface of the Kinderkraft XPAND 2 should be flush with the car seat backrest • Regularly check the technical condition of the car seat, pay special attention to fixing points, to provide the best possible protection for your child.
- Page 5 4.0 Folding/unfolding the backrest of the car seat To fold the seat, pull up the lever with the belt for folding the backrest (8). Folding the seat is possible only when the headrest is set to at least its eleventh hight position and the side protection elements are not folded out.
- Page 6 5.0 Installation in the car 5.1 Forward-facing car seat installation for children between 100 and 150 cm tall (approximately 3.5 to 12 years of age) using the vehicle seat belt and the ISOFIX system. • Attach the ISOFIX guides (11) on the seat connectors. •...
- Page 7 5.2 Forward-facing car seat installation for children between 100 and 150 cm tall (approximately 3.5 to 12 years B.4a B.4b of age) using the vehicle three-point seat belts. IMPORTANT The vehicle manual provides the location of the installation points and other necessary information for installing the car seat in your vehicle.
- Page 8 • The waist belt should be positioned under the armrests through the waist belt guides (6). The B.4c B.5a shoulder belt should be placed under the armrest (3) (Fig. B.4c). Tighten the vehicle seat belt by pulling first on the waist belt section, then on the shoulder belt section.
- Page 9 5.3 Removing the seat (ISOFIX installing system) • Press the ISOFIX release buttons (10) on both arms of the ISOFIX latch (9) simultaneously. When the latches are released and the colour of the markers turns red, pull the seat out of the ISOFIX guides (Fig.
-
Page 10: Adjusting The Backrest
• You can now adjust the headrest (1) to one of the 15 selected positions to the desired height (Fig. C.3). When the height is adjusted, let go of the adjusting handle (7) - the headrest will be locked after gently adjusting the height up and down. When adjusting the headrest, the backrest of the seat and the sides expand to match the child's height. - Page 11 • Plastic parts can be cleaned with soap and water. Do not use aggressive cleaning agents (such as solvents). The full text of the Terms and Conditions of the Warranty is available on the website WWW.KINDERKRAFT.COM...
