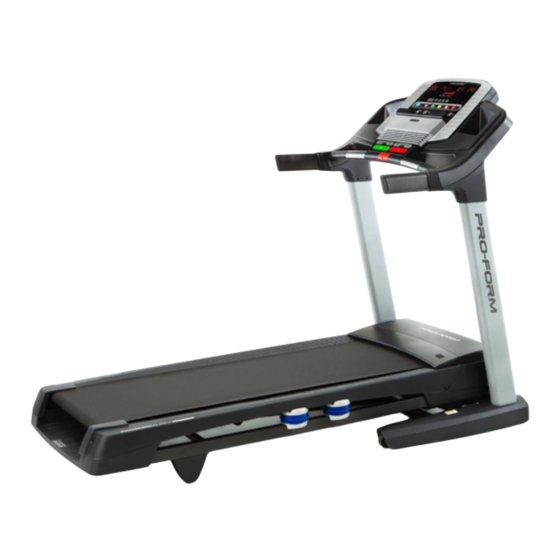

Pro-Form Power 995 User Manual

Pftl99911.0
Hide thumbs Also See for Power 995:

Advertisement

Table of Contents

www.proform.com
USER'S MANUAL
Model No. PFTL99911.0
Serial No.
Write the serial number in the space
above for reference.
Serial Number
Decal
QUESTIONS?
If you have questions, or if parts
are damaged or missing, DO NOT
CONTACT THE STORE; please
contact Customer Care.
IMPORTANT: Please register this
product (see the limited warranty
on the back cover of this manual)
before contacting Customer Care.
CALL TOLL-FREE:
1-888-533-1333
Mon.–Fri. 6 a.m.–6 p.m. MT
Sat. 8 a.m.–4 p.m. MT
ON THE WEB:
www.proformservice.com
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Save this manual
for future reference.

Advertisement

Table of Contents
loading

Related Manuals for Pro-Form Power 995

Summary of Contents for Pro-Form Power 995

  • Page 1 www.proform.com USER’S MANUAL Model No. PFTL99911.0 Serial No. Write the serial number in the space above for reference. Serial Number Decal QUESTIONS? If you have questions, or if parts are damaged or missing, DO NOT CONTACT THE STORE; please contact Customer Care. IMPORTANT: Please register this product (see the limited warranty on the back cover of this manual)

  • Page 2: Table Of Contents

    TABLE OF CONTENTS WARNING DECAL PLACEMENT ............. . 2 IMPORTANT PRECAUTIONS .

  • Page 3: Important Precautions

    IMPORTANT PRECAUTIONS WARNING: To reduce the risk of serious injury, read all important precations and in- structions in this manual and all warnings on your treadmill before using your treadmill. ICON as- sumes no responsibility for personal injury or property damage sustained by or through the use of this product.
  • Page 4 20. Never leave the treadmill unattended while 24. Inspect and properly tighten all parts of the it is running. Always remove the key, unplug treadmill regularly. the power cord, and press the power switch DANGER: Always unplug the power into the off position when the treadmill is not cord immediately after use, before clean- in use.

  • Page 5: Before You Begin

    Thank you for selecting the revolutionary PROFORM reading this manual, please see the front cover of this ® POWER 995 treadmill. The POWER 995 treadmill manual. To help us assist you, please note the product offers an impressive selection of features designed model number and serial number before contacting us.

  • Page 6: Part Identification Chart

    PART IDENTIFICATION CHART Use the drawings below to identify small parts used for assembly. The number in parentheses below each draw- ing is the key number of the part, from the PART LIST near the end of this manual. The number following the key number is the quantity used for assembly.

  • Page 7: Assembly

    ASSEMBLY • To hire a service technician to assemble this • To identify small parts, see page 6. product in your home, call 1-800-445-2480. • Assembly requires the following tools: • Assembly requires two persons. the included hex keys • Place all parts in a cleared area and remove the packing materials.
  • Page 8 3. Identify the Left Upright (89), which is marked with a “Left” sticker or an “L” sticker. Have a sec- ond person hold the Left Upright near the Base (94). See the inset drawing. Tie the wire tie in the Wire Left Upright (89) securely around the end of the Upright Wire (81).

  • Page 9: Base Cover (83). Slide The Left Base Cover Onto

    5. Identify the Left Base Cover (82) and the Right Base Cover (83). Slide the Left Base Cover onto the Left Upright (89). Slide the Right Base Cover onto the Right Upright (90). Do not press the Base Covers into place yet. Identify the Left Upright Cover (79) and the Right Upright Cover (80).
  • Page 10 7. Attach the Left Handrail (88) to the Left Upright (89) with two 5/16" x 1" Screws (5), two 5/16" Star Washers (11), and a 5/16" x 1 1/4" Bolt (4). Do not fully tighten the Screws and Bolt yet. Attach the Right Handrail (87) in the same way.
  • Page 11 10. With the help of a second person, hold the con- sole assembly near the Left Handrail (88). Connect the Upright Wire (81) to the console Console wire. See the inset drawing. The connectors Assembly should slide together easily and snap into place.
  • Page 12 12. Firmly tighten the four the 3/8" x 2 3/4" Screws (7) and the four 3/8" x 1 1/4" Screws (8) (only one side is shown). Press the Left Base Cover (82) and the Right Base Cover (83) onto the Base (94) until they snap into place.
  • Page 13 15. Attach the Left Tray (107) and the Right Tray (108) to the console assembly with four #8 x 1/2" Screws (1). Console Assembly 16. IMPORTANT: See page 15 and plug in the power cord. Next, see page 17 and turn on IMPORTANT: the power.
  • Page 14 17. Raise the Frame (56) to the position shown. Have a second person hold the Frame until this step is completed. Orient the Storage Latch (53) so that the large barrel and the latch knob are oriented as shown. Attach the lower end of the Storage Latch (53) to the Base (94) with a 3/8”...

  • Page 15: Operation And Adjustment

    OPERATION AND ADJUSTMENT HOW TO CONNECT THE POWER CORD nominal 120-volt circuit capable of carrying 15 or more amps. To avoid overloading the circuit, do Use a Surge Suppressor not plug other electrical devices, except for low- power devices such as cell phone chargers, into Your treadmill, like other electronic equipment, can be the surge suppressor or into an outlet on the same circuit.
  • Page 16 CONSOLE DIAGRAM FEATURES OF THE CONSOLE You can also connect to Nikeplus.com through the op- tional PROFORM SYNC. With the SYNC, you can use The treadmill console offers an impressive array of an array of tools to analyze your results and monitor features designed to make your workouts more effec- your progress toward your fitness goals.
  • Page 17 HOW TO TURN ON THE POWER HOW TO USE THE MANUAL MODE IMPORTANT: If the treadmill has been exposed to 1. Insert the key into the console. cold temperatures, allow it to warm to room tem- perature before turning on the power. If you do not See HOW TO TURN ON THE POWER at the left.
  • Page 18 4. Change the incline of the treadmill as desired. The Distance dis- play—This display will To change the incline of the treadmill, press the show the distance that Incline increase or decrease button or one of the you have walked or run. numbered Quick Incline buttons.
  • Page 19 6. Measure your heart rate if desired. 8. When you are finished exercising, remove the key from the console. Before using the hand- Step onto the foot rails, press the Stop button, and adjust the incline of the treadmill to the lowest grip heart setting.
  • Page 20 HOW TO USE AN ONBOARD WORKOUT The workout will continue in this way until the last segment of the profile flashes in the display and the 1. Insert the key into the console. last segment ends. The walking belt will then slow to a stop.
  • Page 21 HOW TO USE AN IFIT LIVE WORKOUT www.iFit.com. Note: If there are no workouts of the selected type in your schedule, the next work- Note: To use an iFit Live workout, you must have an out in your schedule will be downloaded. optional iFit Live module.
  • Page 22 HOW TO USE A PROFORM SYNC To use the SYNC, you must have an iPod nano (4th ® or 5th generation) or an iPod touch (2nd, 3rd, or 4th ® The optional PROFORM SYNC enables you to record generation). You must also have access to a computer your treadmill workout results on your iPod (not in- with an internet connection.
  • Page 23 THE INFORMATION MODE function. If the demo mode is turned on, the word ON will appear in the center display. To turn on or The console features an information mode that keeps turn off the demo mode, press the Enter button or track of treadmill information and allows you to person- the Speed decrease button.
  • Page 24 HOW TO USE THE STEREO SOUND SYSTEM To use the SYNC, plug a compatible iPod (not in- cluded) into the cable extending from the SYNC. Make This treadmill has been designed specifically to work sure that the iPod is fully plugged in. with iPod and has been certified by the developer to meet Apple performance standards.

  • Page 25: How To Fold And Move The Treadmill

    HOW TO FOLD AND MOVE THE TREADMILL HOW TO FOLD THE TREADMILL HOW TO MOVE THE TREADMILL To avoid damaging the treadmill, adjust the incline Before moving the treadmill, fold it as described at the to the lowest position before you fold the treadmill. left.

  • Page 26: Troubleshooting

    TROUBLESHOOTING Most treadmill problems can be solved by following c. Remove the key from the console, and then the simple steps below. Find the symptom that reinsert it. applies, and follow the steps listed. If further as- sistance is needed, see the front cover of this d.
  • Page 27 Locate the Reed Switch (52) and the Magnet (50) b. If the walking belt is overtightened, treadmill per- on the left side of the Pulley (49). Turn the Pulley formance may decrease and the walking belt may until the Magnet is aligned with the Reed Switch. become damaged.
  • Page 28 SYMPTOM: The walking belt is off-center or slips b. If the walking belt slips when walked on, first re- when walked on move the key and UNPLUG THE POWER CORD. Using the hex key, turn both idler roller screws a. If the walking belt is off-center, first remove the clockwise, 1/4 of a turn.

  • Page 29: Exercise Guidelines

    EXERCISE GUIDELINES Burning Fat—To burn fat effectively, you must exer- WARNING: cise at a low intensity level for a sustained period of Before beginning this time. During the first few minutes of exercise, your or any exercise program, consult your physi- body uses carbohydrate calories for energy.

  • Page 30: Part List

    PART LIST Model No. PFTL99911.0 R0212A Key No. Qty. Description Key No. Qty. Description #8 x 1/2" Screw Reed Switch Clip #8 x 3/4" Screw Reed Switch 3/8" x 2" Bolt Storage Latch 5/16" x 1 1/4" Bolt Drive Motor 5/16"...
  • Page 31 Key No. Qty. Description Key No. Qty. Description Module Housing Right Tray Console Back Console Base Console Base Ground Wire Console Frame Hood Clip Ground Wire #10 x 3/4" Flat Head Screw Console Clamp – User’s Manual Left Tray Note: Specifications are subject to change without notice. For information about ordering replacement parts, see the back cover of this manual.

  • Page 32: Exploded Drawing

    EXPLODED DRAWING A Model No. PFTL99911.0 R0212A...
  • Page 33 EXPLODED DRAWING B Model No. PFTL99911.0 R0212A...
  • Page 34 EXPLODED DRAWING C Model No. PFTL99911.0 R0212A...
  • Page 35 EXPLODED DRAWING D Model No. PFTL99911.0 R0212A...

  • Page 36: Ordering Replacement Parts

    ORDERING REPLACEMENT PARTS To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to provide the following information when contacting us: • the model number and serial number of the product (see the front cover of this manual) •...
