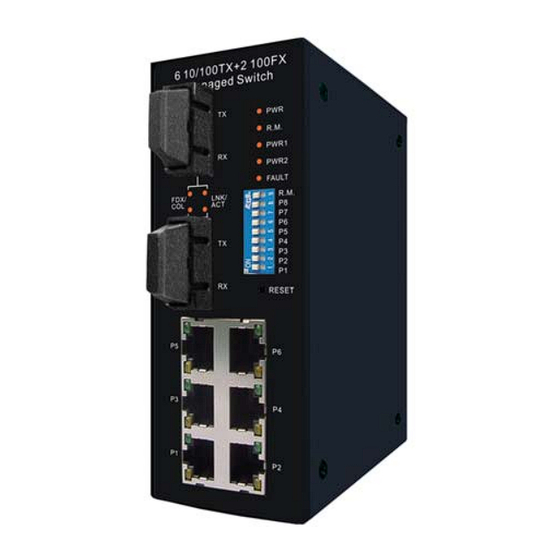

- Page 1 6 10/100TX plus 2 100FX with X-Ring Managed Industrial Switch MODEL:IES-2206F User Manual...
- Page 2 Notice This manual contents are based on the below table listing software kernel version, hardware version, and firmware version. If the switch functions have any different from the manual contents description, please contact the local sale dealer for more information. Firmware Version V2.04 Kernel Version...
- Page 3 FCC Warning This Equipment has been tested and found to comply with the limits for a Class-A digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
-
Page 4: Table Of Contents
Content Introduction ..............1 Features ..............1 Package Contents ............ 2 Hardware Description..........3 Physical Dimension ..........3 Front Panel............... 3 Reset Button...............4 Bottom View ............. 4 DIP-switch ..............4 LED Indicators............6 Ports ................. 7 Cabling ..............10 Wiring the Power Inputs ......... 11 Wiring the Fault Alarm Contact ...... - Page 5 Wall Mount Plate Mounting ........15 Hardware Installation ..........16 Network Application ..........18 X-Ring Application..........18 Coupling Ring Application ........19 Dual Homing Application ........20 Web-Based Management ........21 About Web-based Management ......21 Preparing for Web Management ......21 System Login............
- Page 6 SNTP Configuration ..........39 IP Security .............. 42 RSTP Configuration ..........43 X-Ring ..............47 QoS Configuration..........48 IGMP ..............50 Security Manager ........... 52 SNMP Configuration ..........52 Configuration Backup..........54 TFTP Update Firmware.......... 55 Factory Default ............56 System Reboot............
-
Page 7: Introduction
Introduction The 6 10/100TX plus 2 100FX with X-Ring managed industrial switch is a cost-effective solution and meets the high reliability requirements demanded by industrial applications. The 6 10/100TX plus 2 100FX with X- Ring managed industrial switch can be easily managed through the Web GUI. -
Page 8: Package Contents
Support X-Ring function Power polarity reverse protect 1Mbits Embedded memory Support Port based VLAN / 802.1 Q Tag VLAN IEEE 802.1p class of service and provide port base, Tag base and Type of service priority method Support DHCP client SNMP, Web Management, RMON supported TFTP firmware update and system configure restore and backup. -
Page 9: Hardware Description
Hardware Description In this paragraph, it will describe the Industrial switch’s hardware spec, port, cabling information, and wiring installation. Physical Dimension 6 10/100TX plus 2 100FX with X-Ring managed industrial switch dimension (W x H x D) is 54mm x 135mm x 105mm Front Panel The Front Panel of the 6 10/100TX plus 2 100FX with X-Ring managed industrial switch is showed as below:... -
Page 10: Reset Button
Reset Button The reset button provides user a quick and easy way to restart and set the configuration back to default value. Restart: press the button for 2 seconds and release Set to factory default value: press the button for 5 seconds and release. - Page 11 DIP Switch No Status Description Disable port 1 Alarm Enable port Alarm. If the port’s link fails, the fault LED will light up Disable port Alarm Enable port Alarm. If the port’s link fails, the fault LED will light up Disable port Alarm Enable port Alarm.
-
Page 12: Led Indicators
Disable port Alarm Enable port Alarm. If the port’s link fails, the fault LED will light up Disable the ring master function Enable the switch as the ring master in the X-Ring group [NOTE] When port alarm function is enabled, the fault LED will on and Alarm relay will activity when port failure occurs. -
Page 13: Ports
Power failure or UTP port failure or Yellow Fiber port failure Fault No Power failure or UTP port failure or Fiber port failure occurs The industrial switch is the master Green of X-Ring group R.M. (Ring Master) The industrial switch is not a ring master in X-Ring group Green The port is linking... - Page 14 crossover cable schematic. RJ-45 Pin Assignments Pin Number Assignment [NOTE] “+” and “-” signs represent the polarity of the wires that make up each wire pair. All ports on this industrial switch support automatic MDI/MDI-X operation, user can use straight-through cables (See figure below) for all network connections to PCs or servers, or to other switches or hubs.
- Page 15 Cross Over Cable Schematic Fiber Port There are two 100Base-FX ports. The fiber port is ST type connector in multi mode (2Km) or single mode (30Km). When user connect the fiber port to another fiber port, please follow the below figure to connect it. Wrong connection will cause the port cannot work normally.
-
Page 16: Cabling
Cabling Using four twisted-pair, Category 5 cabling for RJ-45 port connection. The cable between the converter and the link partner (switch, hub, workstation, etc.) must be less than 100 meters (328 ft.) long. Fiber segment using single-mode connector type must use 9/125 um single-mode fiber cable. -
Page 17: Wiring The Power Inputs
Wiring the Power Inputs Please follow below steps to insert the power wire. V- V+ V- V+ 1. Insert the positive and negative wires into the V+ and V- connector on the terminal block connector. 2. To tighten the wire-clamp screws for preventing the DC wires to loose. -
Page 18: Wiring The Fault Alarm Contact
Wiring the Fault Alarm Contact The fault alarm contact is in the middle of terminal block connector as below figure shows. By inserting the wires and set the DIP switch at “ON” status, it will detect the fault status which the power is failure or port link failure and form an open circuit. -
Page 19: Mounting Installation
Mounting Installation DIN-Rail Mounting The DIN-Rail is screwed on the industrial switch when out of factory. If the DIN-Rail is not screwed on the industrial switch, please see the following figure to screw the DIN-Rail on the switch. Follow the below steps to hang the industrial switch. - Page 20 First, insert the top of DIN-Rail into the track. Then, lightly push the DIN-Rail into the track. Check the DIN-Rail is tightly on the track. To remove the industrial switch from the track, reverse steps above.
-
Page 21: Wall Mount Plate Mounting
Wall Mount Plate Mounting Follow the below steps to mount the industrial switch with wall mount plate. 1. Remove the DIN-Rail from the industrial switch; loose the screws to remove the DIN-Rail. 2. Place the wall mount plate on the rear panel of the industrial switch. 3. -
Page 22: Hardware Installation
Hardware Installation In this paragraph, we will describe how to install the 6 10/100TX plus 2 100FX with X-Ring Managed Industrial Switch and the installation points to be attended to it. Installation Steps 1. Unpacking the Industrial switch 2. Check the DIN-Rail is screwed on the Industrial switch. If the DIN-Rail is not screwed on the Industrial switch. - Page 23 7. When all connections are all set and LED lights all show in normal, the installation is complete.
-
Page 24: Network Application
Network Application This chapter provides some sample applications to help user to have more actual idea of industrial switch function application. A sample application of the industrial switch is as below: X-Ring Application The industrial switch supports the X-Ring protocol that can help the network system to recovery from network connection failure within 300ms or less, and make the network system more reliable. -
Page 25: Coupling Ring Application
Coupling Ring Application In the network, it may have more than one X-Ring group. By using the coupling ring function can connect each X-Ring for the redundant backup. It can ensure the transmissions between two ring groups will no failure. The following figure is a sample of coupling ring application. -
Page 26: Dual Homing Application
Dual Homing Application Dual Homing function is to prevent the connection lose between X-Ring group and upper level/core switch. Assign two ports to be the Dual Homing port that is backup port in the X-Ring group. The Dual Homing function only work when the X-Ring function is active. -
Page 27: Web-Based Management
Web-Based Management This section introduces the configuration and functions of the Web-Based management. About Web-based Management On CPU board of the switch there is an embedded HTML web site residing in flash memory, which offers advanced management features and allow users to manage the switch from anywhere on the network through a standard browser such as Microsoft Internet Explorer. -
Page 28: System Login
System Login Launch the Internet Explorer on the PC Key in “http:// “+” the IP address of the switch”, and then Press “Enter”. The login screen will appear right after Key in the user name and password. The default user name and password as “root”... -
Page 29: Port Status
Port status View every port status that depended on user’s setting and the negotiation result Port: The port number Type: The speed mode, ex: 100TX = 100Mbps Link: “Down” means “No Link”. “UP” is for “Link” State: Display port statuses “disable” or “enable”. “Unlink” will be treated as “off”... -
Page 30: Port Statistics
Port information interface Port Statistics The following information provides the current port statistic information Click Clear button to clean all counts Port Statistics Interface... -
Page 31: Port Control
Port Control Change the port status Select the port by scroll the Port column State: Disable or enable control of this port Negotiation: Set auto negotiation mode is Auto, Nway (specify the speed/duplex on this port and enable auto-negotiation), or Force Speed: Set the speed of the port Duplex: Set full-duplex or half-duplex mode of the port Flow control: Set flow control function is Symmetric or Asymmetric... -
Page 32: Port Mirroring
bytes System Description: Display the description of switch. Read only cannot be modified System Location: Assign the switch physical location. The maximum length is 64 bytes System Contact: Enter the name of contact person or organization Firmware Version: Display the switch’s firmware version Kernel Version: Display the kernel software version Hardware version: Display the switch hardware version MAC Address: Display the unique hardware address assigned by... - Page 33 goes in or out monitored ports will be duplicated into mirror port. Port Mirroring Mode: Set mirror mode -- Disable, TX, and Both. The default value is “Disable” Analysis Port: It means mirror port can be used to see all monitor port traffic.
-
Page 34: Vlan Configuration
VLAN configuration A Virtual LAN (VLAN) is a logical network grouping that limits the broadcast domain, which would, allow you to isolate network traffic so only the members of the VLAN will receive traffic from the same members of VLAN. Basically, creating a VLAN from a switch is logically equivalent of reconnecting a group of network devices to another Layer 2 switch. - Page 35 In order for an end station to send packets to different VLAN groups, it itself has to be either capable of tagging packets it sends with VLAN tags or attached to a VLAN-aware bridge that is capable of classifying and tagging the packet with different VLAN ID based on not only default PVID but also other information about the packet, such as the protocol.
- Page 36 VLAN—PortBase Add interface The VLAN group will list To view the another VLAN groups, click Next Page To delete unwanted VLAN, click button Delete To modify existing VLAN group, press button Edit [NOTE] Remember to execute the “Save Configuration” action, otherwise the new configuration will lose when switch power off.
- Page 37 802.1Q VLAN Tagged-based VLAN is an IEEE 802.1Q specification standard which it allows to create a VLAN across devices from different switch venders. IEEE 802.1Q VLAN uses a technique to insert a “tag” into the Ethernet frames. Tag contains a VLAN Identifier (VID) that indicates the VLAN numbers.
- Page 38 Web browse the switch, only when the port of VLAN group ID is equal to the Management VLAN ID. Fill the specific VLAN ID number in Management VLAN ID column and mark the check box, and then click Apply button to enable the function. For example: the management VLAN ID is 101, the VLAN group ID 101 includes the port 1, 2, and 4.
- Page 39 Click Apply to set the outgoing frames are VLAN-Tagged frames or untagged Tag: Outgoing frames with VLAN-Tagged Untag: Outgoing frames without VLAN-Tagged Port VID: Configure port VID settings Port VLAN ID: Enter the port VLAN ID And then, click Apply To reset back to default value, click Default button...
-
Page 40: Alert
802.1q VLAN – Port VLAN ID interface [NOTE] Remember to execute the “Save Configuration” action, otherwise the new configuration will lose when switch power off. Alert There are three kinds of alert – e-mail, event, and power alarm for user to configure. - Page 41 account, and forwarded email account for receiving the event alert. Email Alert: To enable or disable the email alert function SMTP Server IP Address: Set up the mail server IP address Authentication: Mark the check box to enable and configure the email account and password for authentication Mail Account: Set up the email account to receive the alert.
- Page 42 Event Configuration The selected events that occur will send out the alert to the assigned SMTP server. Also, user can select port events for alerting. System event selection: 4 selections – Device cold start, Power status, SNMP Authentication Failure, and X-Ring topology changes. Mark the checkbox to select the event.
- Page 43 Event Configuration interface Power Alarm Configuration Power alarm function enables the Relay alarm action. Without enabling power alarm function, the Relay alarm action will not work even the Relay alarm is set. Mark the check box and click button Apply Power Alarm interface...
-
Page 44: Ip Configuration
IP Configuration User can configure the IP Settings and DHCP client function DHCP Client: To enable or disable the DHCP client function. When DHCP client function is enabling, the industrial switch will be assigned the IP address from the network DHCP server. The default IP address will be replace by the DHCP server assigned IP address. -
Page 45: Sntp Configuration
SNTP Configuration User can configure the SNTP (Simple Network Time Protocol) settings. The SNTP allows user to synchronize switch clocks in the Internet. SNTP Client: To enable or disable SNTP function to get the time from the SNTP server Daylight Saving Time: To enable or disable daylight saving time function. - Page 46 PDT - Pacific Daylight PST - Pacific Standard -8 hours 4 am ADT - Alaskan Daylight ALA - Alaskan -9 hours 3 am Standard HAW - Hawaiian -10 hours 2 am Standard Nome, Alaska -11 hours 1 am CET - Central European FWT - French Winter...
- Page 47 JST - Japan Standard, USSR +9 hours 9 pm Zone 8 EAST - East Australian Standard +10 hours 10 pm Guam Standard, USSR Zone 9 IDLE - International Date Line NZST - New +12 hours Midnight Zealand Standard NZT - New Zealand SNTP Sever IP: Set the SNTP server IP address Switch Timer: Display the switch current time Daylight Saving Period: Set up the Daylight Saving beginning and...
-
Page 48: Ip Security
SNTP Configuration IP Security IP security function allows user to assign 10 specific IP addresses that have permission to access the switch through the web browser for the securing switch management. Enable the IP Security: Mark the check box to enable the IP security function Security IP 1 ~ 10: Assign up to 10 specific IP address. -
Page 49: Rstp Configuration
IP Security Interface RSTP Configuration The Rapid Spanning Tree Protocol (RSTP) is an evolution of the Spanning Tree Protocol and provides for faster spanning tree convergence after a topology change. The system also supports STP and the system will auto detect the connected device that is running STP or RSTP protocol. - Page 50 selected as the root. If the value changes, user must reboot the switch. The value must be multiple of 4096 according to the protocol standard rule Max Age (6-40): the number of seconds a bridge waits without receiving Spanning-tree Protocol configuration messages before attempting a reconfiguration.
- Page 51 RSTP– System Configuration Interface Per Port Configuration Configure path cost and priority of every port Select the port in Port column Path Cost: The cost of the path to the other bridge from this transmitting bridge at the specified port. Enter a number 1 through 200000000 Priority: Decide which port should be blocked by priority in LAN.
- Page 52 is served by a shared medium LAN segment). This function allows the P2P status of the link to be manipulated administratively. True is P2P enabling. False is P2P disabling Admin Edge: The port directly connected to end stations cannot create bridging loop in the network. To configure the port as an edge port, set the port to “True”...
-
Page 53: X-Ring
X-Ring X-Ring provides a faster redundant recovery than Spanning Tree topology. The action is similar with STP or RSTP, but the algorithms not the same. In the X-Ring topology, every switch should enable X-Ring function and assign two member ports in the ring. Only one switch in the X-Ring group would be set as a backup switch that one of two member ports would be blocking, called backup port, and another port is called working port. -
Page 54: Qos Configuration
port is backup port. Enable Coupling Ring: To enable the coupling ring function. Marking the check box to enable the coupling ring function. Coupling port: Assign the member port. Control port: Set the switch as the master switch in the coupling ring. Enable Dual Homing: Set up one of port on the switch to be the Dual Homing port. - Page 55 Oos Policy: Select the Qos policy rule Using the 8,4,2,1 weight fair queue scheme: The switch will follow 8:4:2:1 rate to process priority queue from Hi to lowest queue. For example: the system will process 8 high queue packets, 4 middle queue packets, 2 low queue packets, and the one lowest queue packets at the same time Use the strict priority scheme: The higher queue will always be process first, except higher queue is empty...
-
Page 56: Igmp
QoS configuration Interface IGMP The Internet Group Management Protocol (IGMP) is an internal protocol of the Internet Protocol (IP) suite. IP manages multicast traffic by using... - Page 57 switches, routers, and hosts that support IGMP. Enabling IGMP allows the ports to detect IGMP queries and report packets and manage IP multicast traffic through the switch. IGMP have three fundamental types of message as follows: Message Description A message sent from the querier (IGMP router or Query switch) asking for a response from each host belonging to the multicast group.
-
Page 58: Security Manager
[NOTE] Remember to execute the “Save Configuration” action, otherwise the new configuration will lose when switch power off. Security Manager Change web management login user name and password for the management security issue User name: Key in the new user name(The default is “admin”) Password: Key in the new password(The default is “admin”) Confirm password: Re-type the new password And then, click... - Page 59 Apply to update the changes. SNMP Management interface System Options Name: Enter a name for the switch Location: Enter the switch physical location Contact: Enter the name of contact person or organization Community strings Serve as a password. Strings: Key in the name of string RO: Read only.
-
Page 60: Configuration Backup
RW: Read write. Enables requests accompanied by this string to display MIB-object information and to set MIB objects And then, click Trap Manager A trap manager is a management station that receives traps, the system alerts generated by the switch. If no trap manager is defined, no traps will issue. -
Page 61: Tftp Update Firmware
TFTP Restore Configuration interface TFTP Backup Configuration User can save current flash ROM value from the industrial switch to the TFTP server, then go to the TFTP restore configuration page to restore the image value back to the industrial switch. TFTP Server IP Address: Key in the TFTP server IP Backup File Name: Key in the file image name And then, click... -
Page 62: Factory Default
Before updating, make sure user have user TFTP server ready and the firmware image is on the TFTP server. TFTP Server IP Address: Key in user TFTP server IP Firmware File Name: Key in the name of firmware image And then, click Apply TFTP Update Firmware interface Factory Default... -
Page 63: Save Configuration
System Reboot interface Save Configuration Save the industrial switch configuration to the flash memory. Power off the industrial switch without the saving, all changed configuration will lost. Save Flash Click the button the save the configuration Save Configuration Interface Rate Control Set up every port’s bandwidth rate and packet limitation type Limit Packet type: Select the packet type that wants to filter. -
Page 64: System Log
Ingress: Select the port effective ingress rate. The valid range options are 128kbps, 256Kbps, 512Kbps, 1MB, 2MB, 4MB, and 8MB. The default value is “disable” Egress for all: Select the port effective egress rate. The valid range options are 128kbps, 256Kbps, 512Kbps, 1MB, 2MB, 4MB, and 8MB. - Page 65 System Log Configuration View the system log events in here. Click Reload button to get newest system log event Clear To clear the log events, click button If log event list more that one page, drag down the list to switch to different page.
- Page 66 Event Configuration User can select the system log events. When selected events occur, the system will send out the log information. Also, per port log events can be selected. System event selection: 4 selections – Device cold start, Power status, SNMP Authentication Failure, and X-Ring topology change. Mark the checkbox to select the event.
- Page 67 Event Configuration interface...
-
Page 68: Troubles Shooting
Troubles shooting Verify that is using the right power cord/adapter (DC 12-48V), please don’t use the power adapter with DC output bigger than 48V, or it will burn this converter down. Select the proper UTP cable to construct user network. Please check that is using the right cable. -
Page 69: Technical Specification
Technical Specification The 6 10/100TX plus 2 100FX with X-Ring managed industrial switch technical specification is following. IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX and 100Base-FX Fast Ethernet IEEE802.3x Flow Control and Back-pressure Standard IEEE802.1d spanning tree / IEEE802.1w rapid spanning tree IEEE802.1p class of service IEEE802.1Q VLAN Tag... - Page 70 Up to 3 Trap stations Cold start Port link Up Port link down SNMP Trap Authentication Failure Private Trap for power status Port Alarm configuration Fault alarm, X-Ring Technology Store and forward switching architecture 14,880 pps for 10Base-T Ethernet port Transfer Rate 148,800 pps for 100Base-TX/FX Fast Ethernet port...
- Page 71 10Base-T: 2-pair UTP/STP Cat. 3, 4, 5 cable EIA/TIA-568 100-ohm (100m) Network Cable 100Base-TX: 2-pair UTP/STP Cat. 5 cable EIA/TIA-568 100-ohm (100m) ST (Multi-mode): 50/125um or 62.5/125um ST (Single mode): 9/125um Available distance: 2KM (Multi-mode) / Optical cable 30KM (single-mode) Wavelength: 1310nm (multi-mode/ single mode) Back-plane...
- Page 72 IEEE802.1p class of service Class of service Per port provides 4 priority queues. The quality of service determined by port, Tag Quality of service and Ipv4 Type of service. IEEE802.1d spanning tree Spanning tree IEEE802.1w rapid spanning tree. IGMP v1 and Query mode IGMP Up to 256 groups.
- Page 73 Ingress packets filter and egress packet limit. The egress rate control supports all of packet type and the limit rates are 128kbps, 256Kbps, 512Kbps, 1MB, 2MB, 4MB, and 8MB. Ingress filter packet type combination rule Bandwidth control for Broadcast/Multicast/Unknown Unicast packet, Broadcast/Multicast packet, Broadcast packet only and all of packet.
- Page 74 CE EN61000-4-12, CE EN61000-6-2, CE EN61000-6-4 Safety CE/EN60950-1 IEC60068-2-32 (Free fall) Stability testing IEC60068-2-27 (Shock) IEC60068-2-6 (Vibration)
