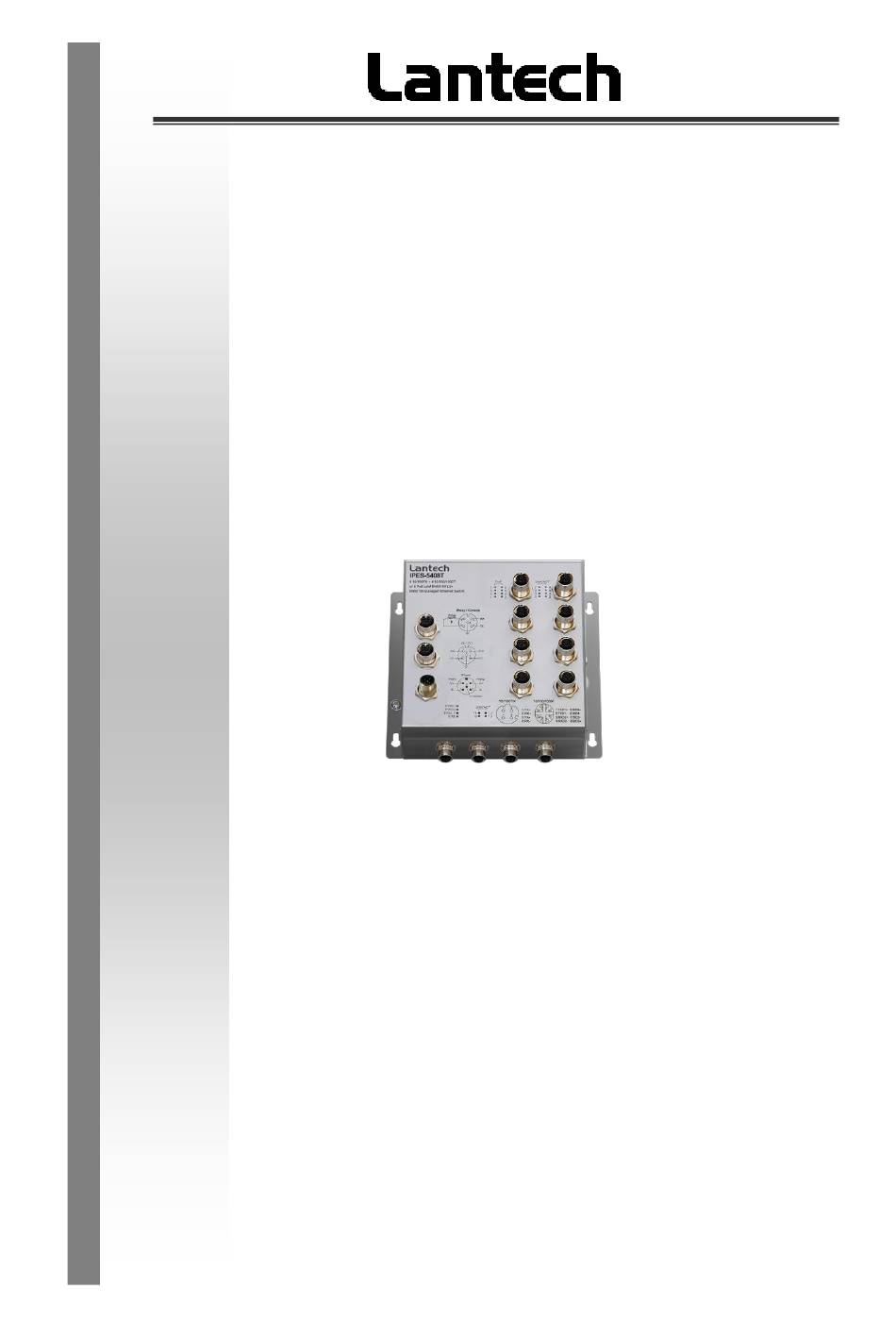

- Page 1 I(P)ES-5408T-X-IGN Series 8 10/100TX + 4 10/100/1000T L2+ (w/8 PoE at/af) Industrial Managed Ethernet Switch I(P)ES-5408T-D-IGN Series 12 10/100TX L2+ (w/8 PoE at/af) Industrial Managed Ethernet Switch User Manual (Hardware) Sep. 2021...
- Page 2 Recommendation for Shielded network cables STP cables have additional shielding material that is used to reduce external interference. The shield also reduces the emission at any point in the path of the cable. Our recommendation is to deploy an STP network cable in demanding electrical environments. Examples of demanding indoor environments are where the network cable is located in parallel with electrical mains supply cables or where large inductive loads such as motors or contactors are in close vicinity to the camera or its cable.
- Page 3 Lantech Communications Global Inc. Products offered may contain software which is proprietary to Lantech Communications Global Inc. The offer or supply of these products and services does not include or infer any transfer of ownership.
- Page 4 FCC Warning This Equipment has been tested and found to comply with the limits for a Class-A digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy.
-
Page 5: Table Of Contents
Content Chapter 1 Introduction ..........5 Chapter 2 Hardware Description ......6 Physical Dimension ........6 Front Panel: ............ 8 Package Content:........... 9 IP Protection ........... 9 LED Indicators..........12 Chapter 3 Hardware Installation ......14 Chapter 4 Console Management ......19 4.1. -
Page 6: Chapter 1 Introduction
M12 provides L2 wire speed and advanced security function for network aggregation deployment. Lantech IES-5408T-X-IGN (IP54) is a high performance L2+ (Gigabit uplink) switch with 8 10/100TX (d-coded) + 4 10/100/1000T (x-coded) by M12 provides L2 wire speed and advanced security function for network aggregation deployment. -
Page 7: Chapter 2 Hardware Description
Chapter 2 Hardware Description In this paragraph, it will describe the Industrial switch’s hardware spec, port, cabling information, and wiring installation. 2.1 Physical Dimension I(P)ES-5408T-X-IGN-67 Aluminum case. IP-67, 215 (W) x 200 (H) x 76.7 (D) mm I(P)ES-5408T-X-IGN-54 Aluminum case. IP-54, 182 (W) x 179.5 (H) x 76.5 (D) mm... - Page 8 I(P)ES-5408T-X-IGN-67 Aluminum case. IP-67, 215 (W) x 200 (H) x 76.7 (D) mm I(P)ES-5408T-X-IGN-54 Aluminum case. IP-54, 182 (W) x 179.5 (H) x 76.5 (D) mm...
-
Page 9: Front Panel
2.2 Front Panel: Front panel of IPES-5408T-X-IGN Front panel of IPES-5408T-D-IGN... -
Page 10: Package Content
2.3 Package Content: Manual CD (by request) Product Console cable 2.4 IP Protection The IP Code, Ingress Protection Rating, sometimes also interpreted as International Protection Rating, classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water in mechanical casings and with electrical enclosures. - Page 11 Ingress of dust is not entirely prevented, but it must not enter in sufficient quantity to interfere with the Dust protected satisfactory operation of the equipment; complete protection against contact No ingress of dust; complete protection against Dust tight contact Liquid ingress protection The second digit indicates the level of protection that the enclosure provides against harmful ingress of water.
- Page 12 harmful effect. Pressure: 80–100 kPa Water jets Water projected by a Test duration: at least nozzle (6.3 mm) against 15 minutes enclosure from any Water volume: 12.5 litres per direction shall have no minute harmful effects. Pressure: 30 kPa at distance of 3 m Powerful Water projected in powerful...
-
Page 13: Led Indicators
only in such a manner that it produces no harmful effects. — Powerful Protected against close- high range high pressure, high temperature temperature spray downs. water jets 2.5 LED Indicators The diagnostic LEDs that provide real-time information of system and optional status are located on the front panel of the industrial switch. - Page 14 The port is not operating in PoE mode.(IPES) A network device is detected. The port is transmitting or receiving packets P9 ~ P12 Link/Act Blinking from the TX device. No device attached...
-
Page 15: Chapter 3 Hardware Installation
Chapter 3 Hardware Installation 3.1Hardware installation 3.1.1Unpack switch and check the accessory with packing content list 3.1.2 Mount the switch on desired position. For the best ventilation, it is suggested to mount the switch on metallic surface. 3.1.3 Connect the M12 connector of power input. The power supply for this switch is connected via a 5-pole M12 female connector. - Page 16 When the vehicle has been stalled by the driver, some equipment in the car may still need to run for a while. With Lantech ignition switch, even if the engine of the vehicle has been turned off by driver, the switch still can still offer power to the equipment via PoE connection from the battery for a maximum of 11 minutes.
- Page 17 Pin assignment of DIDO The DO of our switch will output 3.3V voltage if it is triggered. The DI will be triggered with external 5VDC signal. 3.1.4 Fitting the device, grounding Install the system in a dry and clean area to protect the switch to get exposed with dirt.
- Page 18 Ground screw of I(P)ES-5408T-IGN switch 3.1.5 Connect the M12 connector with RJ-45 data cable, ports are not used shall be caped that comes with the package to insulate the surrounding.
- Page 19 Pin assignment of M12 10/100Tx network connector Pin assignment of M12 10/100/1000T network connector 3.1.6 Check the status of LED, make sure the switch was in working status. Note: The protection class IP67/IP54 is only achieved when bolted together. ...
-
Page 20: Chapter 4 Console Management
Chapter 4 Console Management 4.1. Connecting to the Console Port The supplied cable which one end is M12 5-pole connector and the other end is RS-232 connector. Attach the end of RS-232 connector to PC or terminal and the other end of M12 connector to the console port of the switch. - Page 21 The settings of communication parameters Having finished the parameter settings, click ‘OK’. When the blank screen shows up, press Enter key to have the login prompt appears. Key in ‘admin’ (default value) for both User name and Password (use Enter key to switch), then press Enter and the Main Menu of console management appears.
