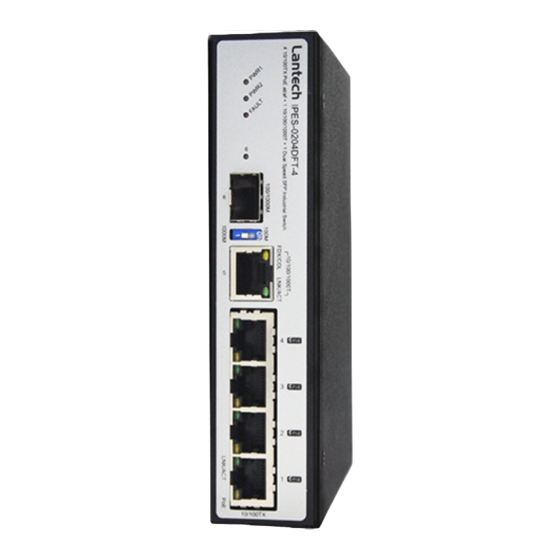

- Page 1 Lantech IPES-0204DFT-4 4 10/100TX PoE at/af + 1 10/100/1000T + 1 Dual Speed SFP Industrial Unmanaged Switch IPES-0104GT-4 4 10/100TX PoE at/af + 1 10/100/1000T Industrial Unmanaged Switch IES-0204DFT 4 10/100TX + 1 10/100/1000T + 1 Dual Speed SFP Industrial Unmanaged Switch User Manual V1.02...
- Page 2 Recommendation for Shielded network cables STP cables have additional shielding material that is used to reduce external interference. The shield also reduces the emission at any point in the path of the cable. Our recommendation is to deploy an STP network cable in demanding electrical environments. Examples of demanding indoor environments are where the network cable is located in parallel with electrical mains supply cables or where large inductive loads such as motors or contactors are in close vicinity to the camera or its cable.
-
Page 3: Table Of Contents
Content Overview ....................1 Introduction ................... 1 Features / Model List ................2 Packing List ................... 3 Safety Precaution .................. 3 Hardware Description ................4 Dimensions ................... 4 Wiring the Power Inputs ................ 7 Wiring the Fault Alarm Contact ............. 8 LED Indicators .................. - Page 4 Recommendation for Shielded network cables STP cables have additional shielding material that is used to reduce external interference. The shield also reduces the emission at any point in the path of the cable. Our recommendation is to deploy an STP network cable in demanding electrical environments.
- Page 5 Lantech Communications Global Inc. Products offered may contain software which is proprietary to Lantech Communications Global Inc. The offer or supply of these products and services does not include or infer any transfer of ownership.
- Page 6 FCC Warning This Equipment has been tested and found to comply with the limits for a Class-A digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy.
-
Page 7: Overview
Overview Introduction The unmanaged industrial switch is a cost-effective solution and meets the high reliability requirements demanded by industrial applications. High-Speed Transmissions The Industrial switch includes a switch controller that can automatically sense transmission speeds (10/100/1000 Mbps). The RJ-45 interface can also be auto-detected, so MDI or MDI-X is automatically selected and a crossover cable is not required. -
Page 8: Features / Model List
Provides flexible mounting: DIN-rail, Panel Mounting* 100/1000M Power Operating Model Name 10/100TX 10/100/1000T Supply Temperature -20 ~ 60℃ IPES-0104GT-4-48V 4 (PoE) 45~57VDC -40 ~ 75℃ IPES-0104GT-4-48V-E 4 (PoE) 45~57VDC -20 ~ 60℃ IPES-0104GT-4-12V 4 (PoE) 9.5~57VDC -40 ~ 75℃... -
Page 9: Packing List
Packing List 1 x Industrial Ethernet Switch (w/ terminal block and DIN-Rail kit) Caps for RJ45-port and SFP-port Safety Precaution Attention If DC voltage is supplied by an external circuit, please use a protection device on the power supply input. -
Page 10: Hardware Description
Hardware Description In this paragraph, we will introduce the Industrial switch’s dimensions, port, cabling information, and wiring installation. For PoE models: If this switch needs to uplink with another switch via a PoE copper port, please make sure the uplink port on the other unit is a none-PoE interface. - Page 11 IPES-0204DFT-4-12V: 43 x 152 x 105 mm (W x H x D) IPES-0104GT-4-48V / IPES-0104GT-4-48V-E: 35 x 152 x 105 mm (W x H x D)
- Page 12 IPES-0104GT-4-12V / IPES-0104GT-4-12V-E: 43 x 152 x 105 mm (W x H x D) IES-0204DFT: 35 x 152 x 105 mm (W x H x D)
-
Page 13: Wiring The Power Inputs
Wiring the Power Inputs Please follow the steps below to insert the power wires. V+ V1- V+ V- 1. Insert the positive and negative wires into the V+ and V- contacts on the terminal block connector. 2. Tighten the wire-clamp screws to prevent the DC wires from loosing. -
Page 14: Wiring The Fault Alarm Contact
Wiring the Fault Alarm Contact The fault alarm contacts are in the middle of the terminal block connector as the picture shows below. Inserting the wires, the switch will detect the fault status of the power failure, or port link failure (available for managed model) and then forms an open circuit. -
Page 15: Led Indicators
LED Indicators IPES-0104GT-4-48V IPES-0104GT-4-48V-E IPES-0204DFT-4-48V IES-0204DFT IPES-0104GT-4-12V IPES-0204DFT-4-12V IPES-0104GT-4-12V-E... -
Page 16: Dip Switch (Ies-0204Dft / Ipes-0204Dft-4)
The LED indicators located on the front panel display the power status and network status of the Industrial switch; each has their own specific meaning as the table shown below. Color Description Power input 1 is active PWR1 Green Power input 1 is inactive Power input 2 is active PWR2 Green... -
Page 17: Rj-45 Pin Assignments
RJ-45 Pin Assignments The UTP/STP ports will automatically sense for Fast Ethernet (10Base-T/100Base-TX) or Gigabit Ethernet (10Base-T/100Base-TX/1000Base-T) connection. Auto MDI/MDIX means that the switch can connect to another switch or workstation without changing straight through or crossover cabling. See the figures below for straight through and crossover cable schema. - Page 18 10/100Base-TX Cable Schema Straight Through Cable Schema Crossover Cable Schema 10/100/1000Base-T Pinouts The table below describes the gigabit Ethernet RJ-45 pinouts. Signal name Description BI_DA+ Bi-directional pair A+ BI_DA- Bi-directional pair A- BI_DB+ Bi-directional pair B+ BI_DC+ Bi-directional pair C+ BI_DC- Bi-directional pair C- BI_DB-...
-
Page 19: Cabling
10/100/1000Base-T Cable Schema The following two figures illustrate the 10/100/1000Base-T cable schema. Straight Through Cable Schema Crossover Cable Schema Cabling Use unshielded twisted-pair (UTP) or shielded twisted-pair (STP) cable for RJ-45 connections: 100Ω Category 3, 4 or 5 cable for 10Mbps connections, 100Ω... - Page 20 up to 30km. Fiber segment using multi-mode connector type must use 50 or 62.5/125 µm multi-mode fiber cable. User can connect two devices up to 2kmdistances. Gigabit / 100M SFP port: The small form-factor pluggable (SFP) is a compact optical transceiver used in optical communications for both telecommunication and data communications.
- Page 21 Transceiver Inserted Second, insert the fiber cable of LC connector into the transceiver. LC connector to the transceiver...
- Page 22 To remove the LC connector from the transceiver, please follow the steps shown below: First, press the upper side of the LC connector to release from the transceiver and pull it out. Remove LC connector Second, push down the metal loop and pull the transceiver out by the plastic handle.
-
Page 23: Mounting Installation
Mounting Installation DIN-Rail Mounting Assembling the DIN-Rail Clip The DIN-rail clip is screwed on the industrial switch when out of factory. If not, please refer to the following steps and figure to secure the DIN-rail clip on the switch. 1, Use the screws to screw on the DIN-rail clip on the industrial switch. 2, To remove the DIN-rail clip, reverse step 1. - Page 24 Hanging the Industrial Switch Follow the steps below to hang the industrial switch on the DIN rail. 1, First, position the rear side of the switch directly in front of the DIN rail. Make sure the top of the clip hooks over the top of the DIN rail. 2, Push the unit downward.
-
Page 25: Wall-Mount Plate Mounting (Optional)
Wall-Mount Plate Mounting (Optional) Follow the steps below to mount the industrial switch with the wall mount plates included. 1. To remove the DIN-Rail clip from the industrial switch, unscrew the screws to remove the DIN-Rail clip. 2. Place the wall-mount plates on the rear panel of the industrial switch. 3. -
Page 26: Hardware Installation
Hardware Installation In this paragraph, we will describe how to install the Industrial Unmanaged Switch and the installation points for the attention. -
Page 27: Installation Steps
Installation Steps Unpacked the Industrial switch. Check the DIN-Rail is screwed on the Industrial switch. If the DIN-Rail is not screwed on the Industrial switch. Please refer to DIN-Rail Mounting section for DIN-Rail installation. If you want to wall mount the Industrial switch, then please refer to Wall-Mount Plate Mounting section for wall mount plate installation. -
Page 28: Troubleshooting
Troubleshooting Verify that you are using the included or appropriate power cord/adapter. Don’t use the power adapter with DC output higher than the power rating of the device. Otherwise, the device will burn down. Select the proper UTP/STP cable to construct your network. Please check that you are using the right cable.
