PROAIM ST-CNPV-SS Assembly Manual

Cinema pro arm & vest for handheld video camera stabilizers
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

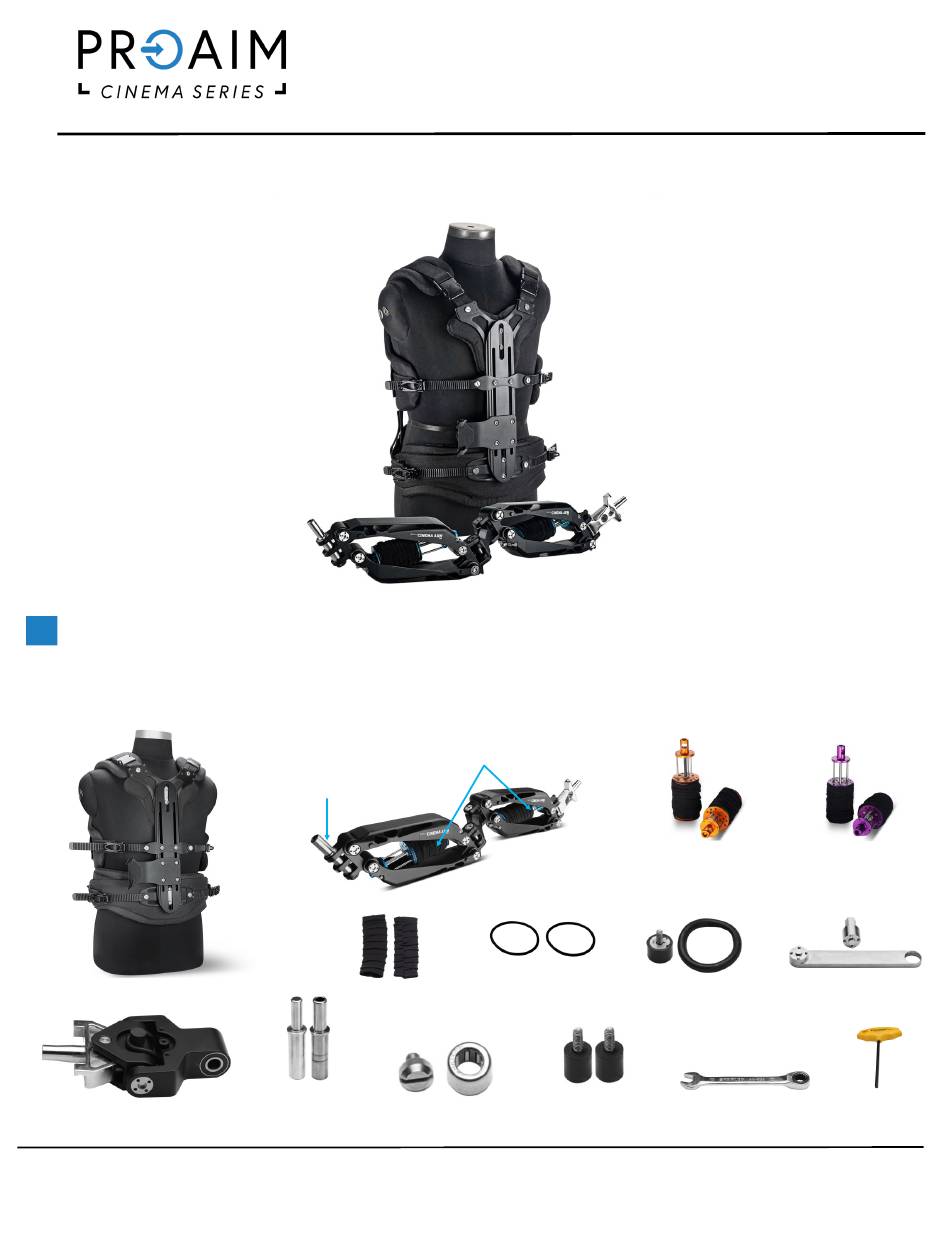

1
Cinema Pro Arm & Vest for Handheld Video Camera
Stabilizers (ST-CNPV-SS)
A s s e m b l y M a n u a l
What's In The Box
Please inspect the contents of your shipped package to ensure you have received everything that is listed
below.
2 x Blue Spring cores
5/8" Arm Post
2 x Orange
2 x Purple
Cinema Arm Pro
Spring cores
Spring cores
2 x O-Rings
Wrench Kit
Spring Covers
Cinema Arm Pro Vest
Front Socket
Spring Pack
2x Rubber
5mm T-Type
1/2" & 3/8"
10mm Spanner
Socket
Spring Spare kit
Bumper Spares
Allen Key
Arm Posts
All rights reserved.
No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means,
electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright
statutes or in writing by the Publisher.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ST-CNPV-SS and is the answer not in the manual?

Questions and answers

Related Manuals for PROAIM ST-CNPV-SS

Summary of Contents for PROAIM ST-CNPV-SS

  • Page 1 Cinema Pro Arm & Vest for Handheld Video Camera Stabilizers (ST-CNPV-SS) A s s e m b l y M a n u a l What’s In The Box Please inspect the contents of your shipped package to ensure you have received everything that is listed below.

  • Page 2: Table Of Contents

    Bag Packing INDEX Sr. No Particulars Page No. Cinema Pro Vest Camera Support System Setup Spring Core Swapping Arm Post Swapping Socket Swapping Tension Adjustment Vest Assembly Vest Height Adjustment Socket Block Height Adjustment 10-11 Cinema Arm Mounting Stabilizer Mounting Final Setup...

  • Page 3: Cinema Pro Vest Camera Support System Setup

    Cinema Pro Vest Camera Support System Setup Spring Core Swapping • Loosen the bolt of the spring bracket using the 10mm spanner and remove it. • Now, carefully remove the Spring bracket from the Spring core’s top and remove the Spring core.

  • Page 4: Arm Post Swapping

    • Repeat the same process to attach the other Spring cores. Feature: The Proaim Cinema Pro Arm is equipped with three swappable spring cores tailored for different load capacities, ranging from 15-29kg / 33-63.8lb. 15 Kg-22 Kg / 33 lb-48.5 lb 25 Kg-29 Kg / 55 lb-63.8 lb...

  • Page 5: Socket Swapping

    • Now, securely insert the 1/2" Arm Post. Feature: With three types of arm posts (1/2 ", 3/4 ", 5/8"), our combo offers comprehensive mounting options compatible with various steady cam stabilizers and rigs, including Zest and Equator. • Insert the cap into the arm post. Feature: You can attach it to poles or a rickshaw using a hard mount for added...

  • Page 6: Tension Adjustment

    • Now, attach the Socket to the Socket block and carefully insert the knob. • The Socket is securely attached to the socket block. Feature: The two mild steel mounting socket blocks allow you to choose between zero friction and friction settings for precise control over arm movement.

  • Page 7: Vest Assembly

    Vest Assembly • Loosen the buckles of both the shoulder and waist ratchet belts from each side. • Then, open the ratchet belts from both sides. • Detach the Velcro from back side of the vest. • Then, loosen or tighten the belt as per your comfort.

  • Page 8: Vest Height Adjustment

    • After adjusting the belt, re-attach the Velcro. Vest Height Adjustment • Loosen both bolts on the front plate using the 5mm Allen Key. • Then, adjust the height of the Cinema vest Upward or downward, as per your convenience. NOTE: Height Adjustment of the Front Plate offers an ideal fit for operators from 5.5' to...
  • Page 9 • Wear the vest. • Attach the waist buckles on both sides & tighten them as per your convenience. • Now, attach the shoulder buckles on both sides & tighten them. • Tighten the shoulder Velcro straps to a snug position.

  • Page 10: Socket Block Height Adjustment

    Socket Block Height Adjustment • Loosen all bolts of the Socket block using the 5mm Allen Key. • You can also adjust the height of the Socket Block. • Then, re-tighten all bolts using the 5mm Allen Key. Cinema Arm Mounting •...

  • Page 11: Stabilizer Mounting

    When attaching the Stabilizer to the Arm and vest, keep the Stabilizer's handle straight by the Arm's pin. • Your setup is ready to use. YOUR PROAIM CINEMA PRO VEST CAMERA SUPPORT SYSTEM ALL DRESSED UP AND READY TO GO! (SHOWN WITH OPTIONAL ACCESSORIES)
  • Page 12 Warranty: We offer a one-year warranty for our products from the date of purchase. Within this period, we will repair it without charge for labor or parts. The warranty doesn’t cover transportation costs, nor does it cover a product subjected to misuse or accidental damage. Warranty repairs are subject to inspection and evaluation by us.
