2-Axis Equalizer for Flycam Flowline
(ST-EQZR-00)
A s s e m b l y M a n u a l

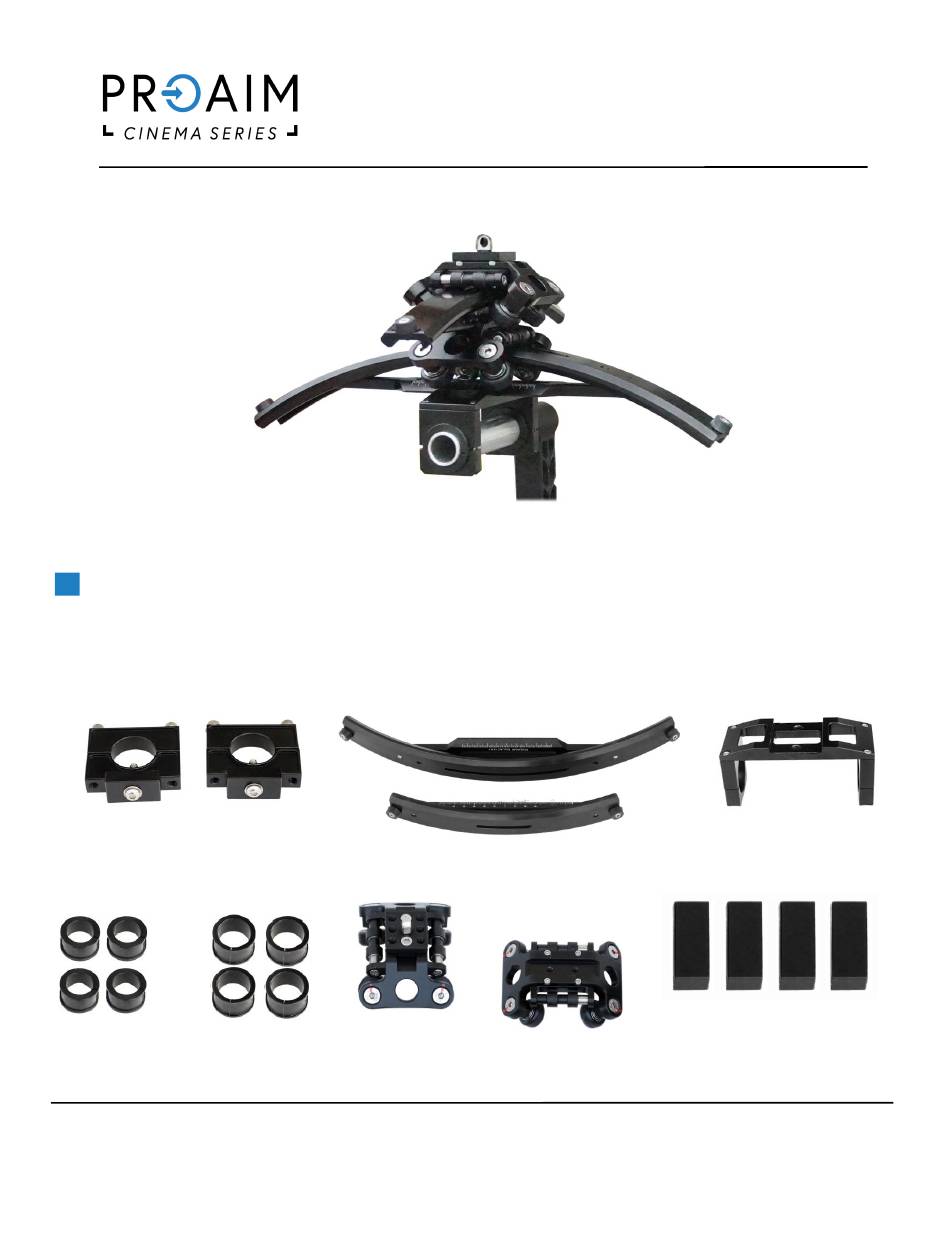

What's In The Box
Please inspect the contents of your shipped package to ensure you have received everything that is listed
below.
Handle Bar Grip without
Top Handle Grip without
bush 30mm dia
bush 30mm dia
2 x Sliders
4 x Height Risers
Rail System
4 x Bush with
4 x Bush with
(L= 4cm,H =1.5cm & W= 1cm)
Rail System
with Loop
22mm Dia
25mm Dia
All rights reserved.
No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means,
electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright
statutes or in writing by the Publisher.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for PROAIM CINEMA ST-EQZR-00
Summary of Contents for PROAIM CINEMA ST-EQZR-00
- Page 1 2-Axis Equalizer for Flycam Flowline (ST-EQZR-00) A s s e m b l y M a n u a l What’s In The Box Please inspect the contents of your shipped package to ensure you have received everything that is listed below.
- Page 2 2-Axis Equalizer Setup • Firstly, take big Slider and loosen the screws from bottom. Remove the part with index markings. • Mount this part on Handle Bar Grip and fix it with provided screws. • Now again fix this part on the big Slider. After fixing, it will look as shown in image.
- Page 3 • Now loosen and remove one of the rubber end-stoppers from small Slider. • Insert Rail System with Loop onto the Slider and tighten back the stopper to secure it. • Connect the provided Hook properly with Loop on Rail System. Top Handle Assembly The Top Handle Grip works well with DJI Ronin/M/MX and DJI RONIN 2 (R2) Gimbals.
- Page 4 • Pull one section up to take out the Ring. • Insert the other size of Ring and tighten screws back. NOTE: Similarly follow the mentioned above steps to change Adapter Ring of Handle Bar Grip. To Increase Height of Handle Grips NOTE: There are 4 Height Risers provided with this gear.
- Page 5 YOUR PROAIM 2-AXIS EQUALISERFOR FLYCAM FLOWLINE ALL DRESSED UP AND READY TO GO! (SHOWN WITH OPTIONAL ACCESSORIES) Warranty: We offer one year warranty for our products from date of purchase. Within this period of time, we will repair it without charge for labor or parts. Warranty doesn’t cover transportation costs nor does it cover a product subjected to misuse or accidental damage.
