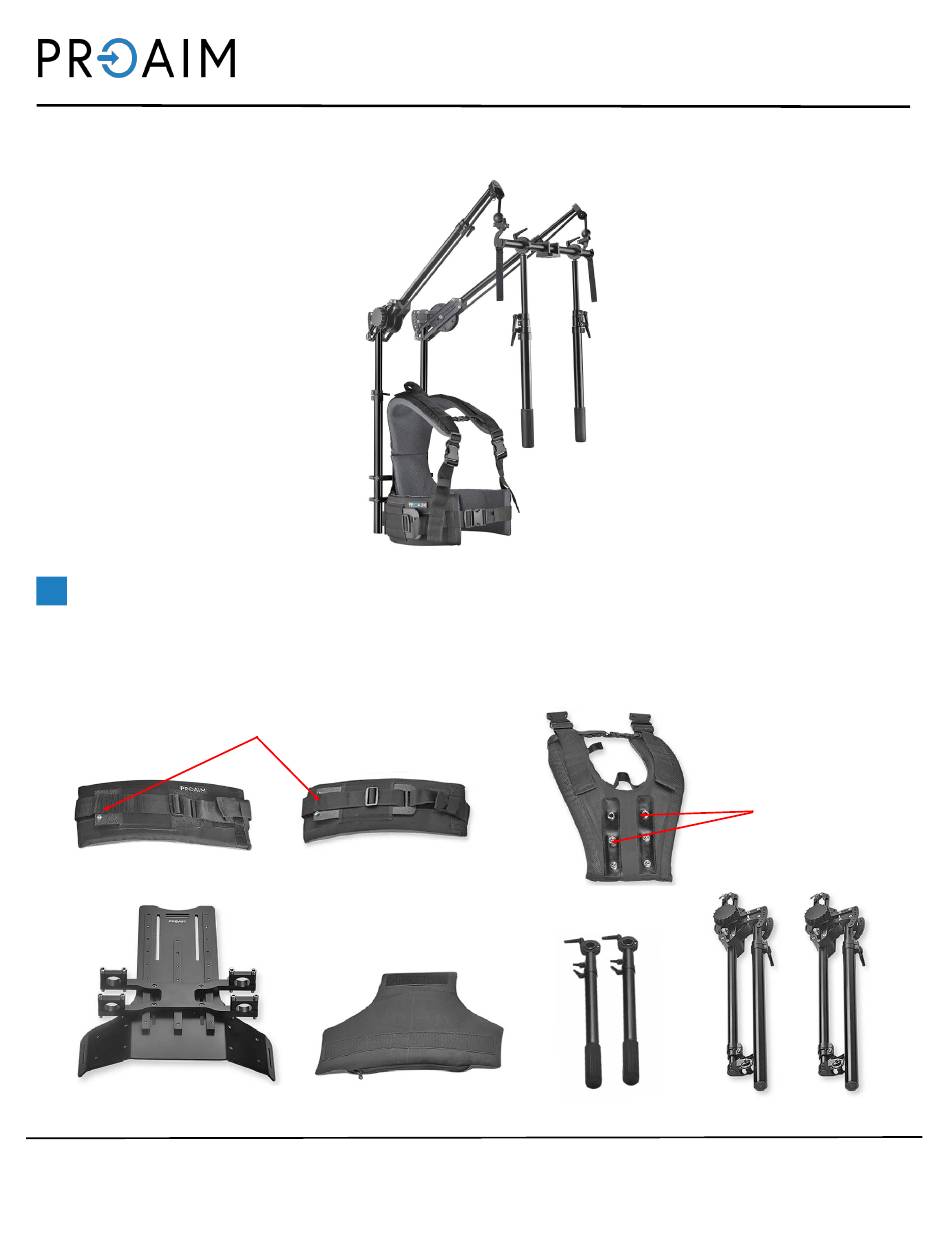

1
Hawk Pro Body Support System
(ST-PHWK-01)
A s s e m b l y M a n u a l
What's In The Box
Please inspect the contents of your shipped package to ensure you have received everything that is listed
below.
Metal Plates With bolts
Metal Plates
With bolts
Left Padded Waist Belt
Right Padded Waist Belt
Shoulder Support
Metal Base Vest (Back)
Padded Back Support
Rig Extension Handles
Rig Extension Arms
All rights reserved.
No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means,
electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright
statutes or in writing by the Publisher.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Hawk Pro ST-PHWK-01 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PROAIM Hawk Pro ST-PHWK-01

Summary of Contents for PROAIM Hawk Pro ST-PHWK-01

  • Page 1 Hawk Pro Body Support System (ST-PHWK-01) A s s e m b l y M a n u a l What’s In The Box Please inspect the contents of your shipped package to ensure you have received everything that is listed below.
  • Page 2 Padded Rig Elastic with Hook Rig Top Bar (Sizes: 9mm,10.6mm,13mm) 2 x Net Pouches Gimbal Adapters 8 x Small Pouches 4 X T-Type Allen Keys (Sizes: 2.5mm, 3mm,4mm,5mm) Bag Packing...
  • Page 3 INDEX Sr. No Particulars Page No. Left/ Right Padded Waist Assembly Metal Base Vest (Back) Shoulder Support Assembly Shoulder Support Height Adjustment Padded Back Support Mounting Rig Extension Arms Assembly Rig Elastic Mounting Rig Elastic Adjustment Rig Extension Arms Length Adjustment Rig Top Bar Mounting 10-11 Rig Extension Handles Assembly...
  • Page 4 Hawk Pro Body Support Setup Left/ Right Padded Waist Belt Assembly • Loosen both bolts of the Left padded waist belt and remove them using the 4mm Allen key. • Now, carefully remove the metal plate and keep it aside. Metal Base Vest (Back) Assembly •...
  • Page 5 • Insert the belt strap into the buckle and adjust accordingly. • Follow the same process to attach the Right padded waist belt to the metal base vest. Shoulder Support Assembly • Loosen and remove all the bolts of the shoulder support using the 4mm Allen key.
  • Page 6 Padded Back Support Mounting • Attach the padded back support to the jacket. • Padded back support is securely attached to the jacket. NOTE: The Padded back support comes with a Velcro attachment for quick mounting. Rig Extension Arms Assembly •...
  • Page 7 • Insert the Rig extension arm into the clamp. • Then re-tighten all the bolts of the clamp using the 5mm Allen key to secure it. • Follow the same steps to attach the second Rig extension arm. FEATURE: You can adjust the position of the Rig Extension Arm as per your requirement.
  • Page 8 • Follow the same steps to mount the Rig elastic on the other Rig extension arm. Different Sizes Of Rig Elastic with Payload Rig Elastic Adjustment • Rotate the knob clockwise to tighten the Rig elastic. • Press the locking pin and rotate the knob anti-clockwise to loosen the Rig elastic.
  • Page 9 • Loosen the ratchet knob of the Rig Extension Arm and pull the rod outwards to increase the height. • Once it is at the desired height, re-tighten the ratchet knob to secure it. • Follow the same process to increase the height of the other Rig Extension Arm.
  • Page 10 Adjustable Extension Arms Rig Top Bar Mounting • Loosen and remove the Allen bolts from the DJI Quick release (Not included) using the 4mm Allen key. • Now, mount the DJI Quick release on the Rig Top Bar. • Then insert both the Allen bolts. •...
  • Page 11 Rig Extension Handles Assembly • Unscrew and remove the Ratchet knob from the Rig Extension Handle. • Now, open the clamp of the Rig Extension Handle and remove the bush. • Then, insert the bush on the Rig Top bar. •...
  • Page 12 • Mount the Rig Top Bar on the Rig Extension Arm hooks. • Loosen the top and bottom knob of the Rig Extension Handle. • Now, extend the Rig Extension Handle as per your requirement. • Then, re-tighten both the knobs to secure it. •...
  • Page 13 Different Shooting Angles Star Ring Setup Gimbal Adapters Assembly • Loosen and remove all the bolts from the Gimbal adapter using the 3mm Allen key. • Then, open the gimbal adapter. • Attach the gimbal adapter to the Star Ring (Not Included) handle.
  • Page 14 Follow the same process to attach the Rig Extension Arm hook to the other Gimbal adapter. • Your setup is ready to use. YOUR PROAIM HAWK PRO BODY SUPPORT SYSTEM ALL DRESSED UP AND READY TO GO! (SHOWN WITH OPTIONAL ACCESSORIES)
  • Page 15 Warranty: We offer a one-year warranty for our products from the date of purchase. Within this period, we will repair it without charge for labor or parts. The warranty doesn’t cover transportation costs, nor does it cover a product subjected to misuse or accidental damage. Warranty repairs are subject to inspection and evaluation by us.
