Ring Docking Bracket for Handheld Camera Stabilizers, Arm & Vest
(ST-RGDB-01)
A s s e m b l y M a n u a l
What's In The Box
Please inspect the contents of your shipped package to ensure you have received everything that is listed
below.
4 x Docking Rings
(Size: 30mm, 38mm, 42mm & 54mm)

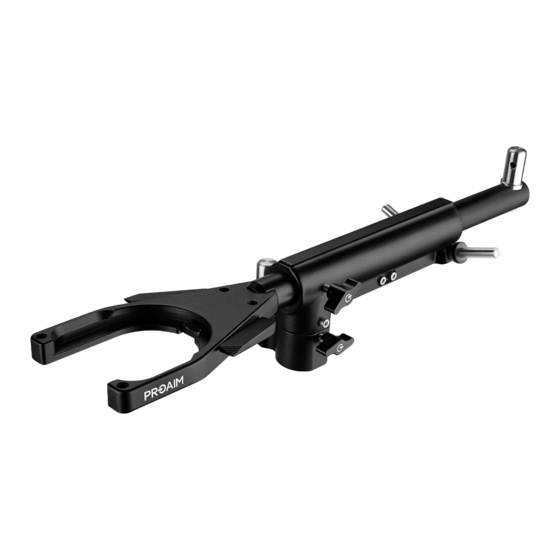

Ring Docking Bracket
3 x Allen Keys (2mm, 3mm, 4mm)
