PROAIM STD-PTZ-01 Assembly Instructions

3-stage ptz camera support stand w 5/8” baby pin & ball head

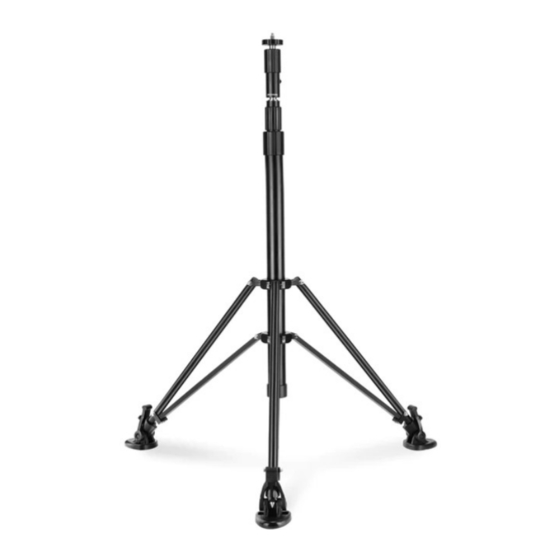

3-Stage PTZ Camera Support Stand w 5/8"

Baby Pin & Ball Head

(STD-PTZ-01)

A s s e m b l y M a n u a l

What's In The

Please inspect the contents of your shipped package to ensure you have received everything that is listed

below.

3 x Foots

Pouch for Ball Joint

Ball Joint

Bag packing

PTZ 3-Stage Stand

No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means,

electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright

statutes or in writing by the Publisher.

Table of Contents

Do you have a question about the STD-PTZ-01 and is the answer not in the manual?

Page 1 3-Stage PTZ Camera Support Stand w 5/8” Baby Pin & Ball Head (STD-PTZ-01) A s s e m b l y M a n u a l What’s In The Please inspect the contents of your shipped package to ensure you have received everything that is listed below.
Page 2 Camera Support Stand Setup  Loosen the top and bottom knobs as shown in the image.  Stretch out the legs and secure them properly with the help of knobs.  Insert the feet into the legs and tighten them properly.
Page 3  By loosening the telescopic knob, adjust the height of the stand and tighten the knob properly. NOTE: The support Stand has 3 sections to adjust the height with quick & secure locking knobs. The central main post of the stand is adjustable, through which you can change its height as per your requirement.
Page 4 YOUR PROAIM 3-STAGE PTZ CAMERA SUPPORT STAND ALL DRESSED UP AND READY TO GO! (SHOWN WITH OPTIONAL ACCESSORIES) Warranty: We offer one year warranty for our products from date of purchase. Within this period of time, we will repair it without charge for labor or parts. Warranty doesn’t cover transportation costs nor does it cover a product subjected to misuse or accidental damage.
