Major Disassembly
Section 5
Introduction
Each generator model has a unique method of disassembly.

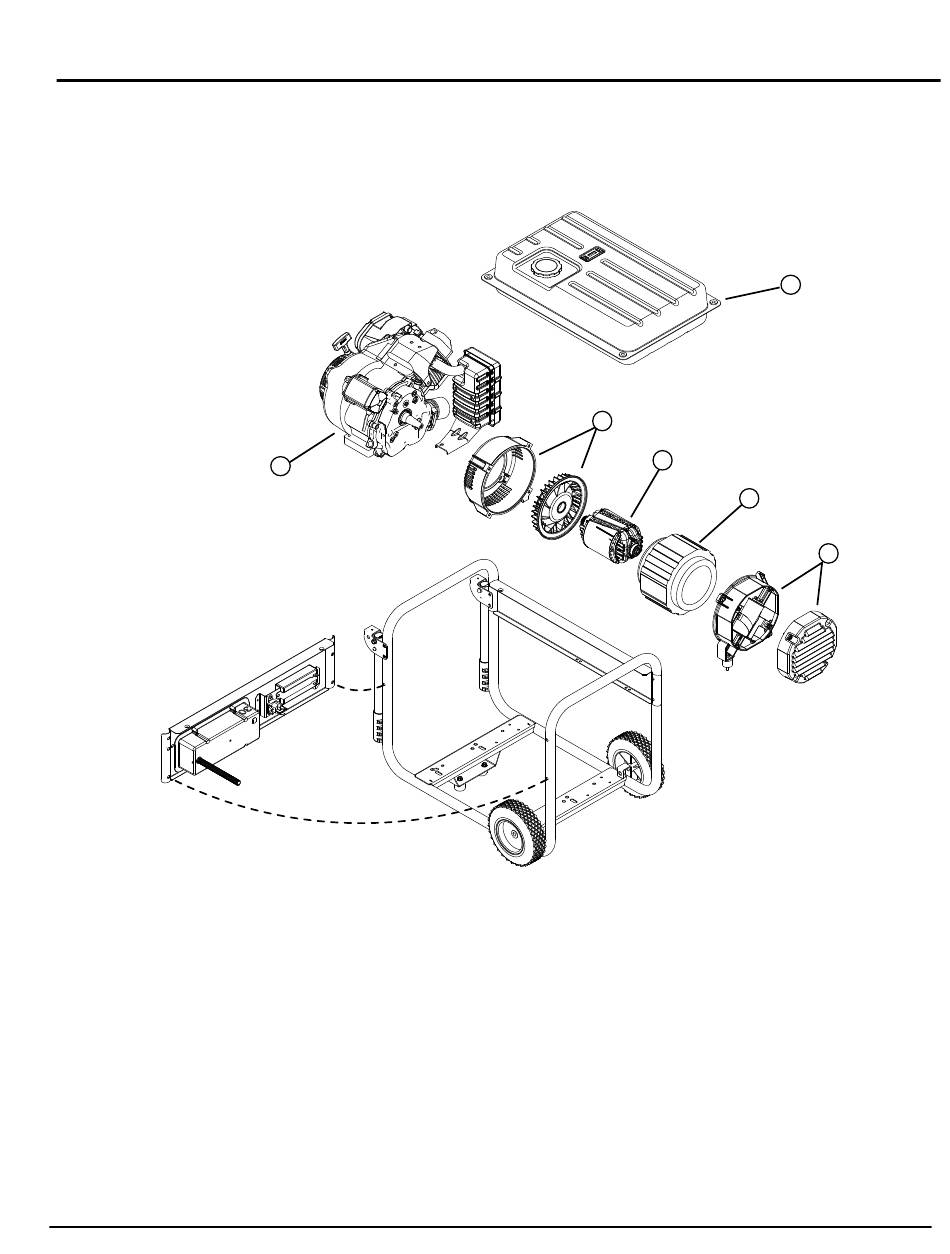

Figure 5-1
is a simplified version of disassembly that does
not go into step by step instructions. The figure below represents the basic disassembly and sequence of steps needed
to remove the fuel tank, stator, rotor, and the engine.
1
5
4
6
3
2
000000
Figure 5-1. Typical Disassembly Steps
Diagnostic Repair Manual
37
