User Manual

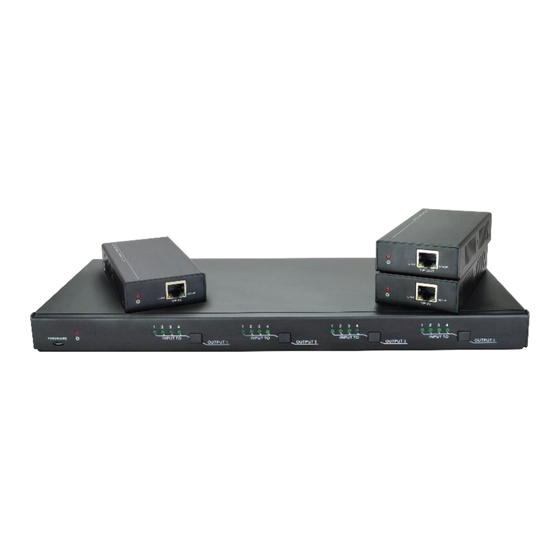

HDMI HDBaseT 4x4 Matrix Kit
All Rights Reserved

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CE-H23W11-S1 and is the answer not in the manual?

Questions and answers

Related Manuals for SIIG CE-H23W11-S1

Summary of Contents for SIIG CE-H23W11-S1

  • Page 1 User Manual HDMI HDBaseT 4x4 Matrix Kit All Rights Reserved...
  • Page 2 HDMI HDBaseT 4x4 4K Matrix Kit Preface Read this user manual carefully before using the product. Pictures shown in this manual is for reference only. Different models and specifications are subject to real product. This manual is only for operation instruction only. The functions described in this version are updated till August 14, 2017.
  • Page 3 HDMI HDBaseT 4x4 4K Matrix Kit SAFETY PRECAUTIONS To insure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference.  Unpack the equipment carefully and save the original box and packing material for possible future shipment ...

  • Page 4: Table Of Contents

    HDMI HDBaseT 4x4 4K Matrix Kit Table of Content 1. Introduction ......................... 1 1.1 Brief Introduction ....................1 1.2 Features ......................1 1.3 Package List ...................... 2 2. Product Appearance ....................3 2.1 HDMI HDBaseT 4x4 Matrix Switcher ..............3 2.2 HDBaseT Receiver ....................
  • Page 5 HDMI HDBaseT 4x4 4K Matrix Kit 4.4.2 EDID invoking ..................26 4.5 Firmware Update via USB ................27 5. Specification ......................28 5.1 HDMI HDBaseT 4x4 Matrix Switcher ............... 28 5.2 HDBaseT Receiver ..................29 6. Panel Drawing ......................30 6.1 HDMI HDBaseT 4x4 Matrix Switcher ...............

  • Page 6: Introduction

    HDMI HDBaseT 4x4 4K Matrix Kit 1. Introduction 1.1 Brief Introduction This product is a professional HDMI HDBaseT 4x4 4K Matrix Kit, which consists of a 4K HDBaseT Matrix Switcher, 3 HDBaseT Receivers and accessories. The HDMI HDBaseT 4x4 4K Matrix Kit is a professional 4x4 HDBaseT Matrix Switcher that consist of the following inputs and outputs, 4 HDMI IN (4kx2K@60Hz signal at max), 3 IR IN, 1 IR EYE, 4 IR OUT, 3 HDBaseT OUT, 1 HDMI OUT, 1 SPDIF OUT, 1 L&R RCA OUT, and TCP/IP, RS232 control port via phoenix connector.

  • Page 7: Package List

    HDMI HDBaseT 4x4 4K Matrix Kit  Powerful EDID management  Support non-volatile memory [NVM] for reliable operation  Support firmware upgrade through Micro USB port  Easy installation with rack-mounting design 1.3 Package List  1 x HDMI HDBaseT 4x4 Matrix Switcher ...

  • Page 8: Product Appearance

    HDMI HDBaseT 4x4 4K Matrix Kit 2. Product Appearance 2.1 HDMI HDBaseT 4x4 Matrix Switcher Front Panel FIRMWARE INPUT TO INPUT TO INPUT TO INPUT TO OUTPUT 1 OUTPUT 2 OUTPUT 3 OUTPUT 4 Name Description ① FIRMWARE Micro USB port for updating firmware ...

  • Page 9: Hdbaset Receiver

    HDMI HDBaseT 4x4 4K Matrix Kit matrix.  HDBaseT: The HDBT RJ45 outputs deliver HD video, Audio and PoC to the HDBaseT Receiver up to 70m.  HDMI: Connect an HDMI cable from the Matrix Switcher to the displayer. ④ OUTPUTS ...
  • Page 10 HDMI HDBaseT 4x4 4K Matrix Kit Rear Panel LINK HDCP TP IN Name Description  Power OFF: No power; ①  Indicator RED: DC power present (PoC). The RJ45 socket has two LED status indicators. Plug in the Pre-installed CAT cable in to the HDBT RJ45 socket. ...

  • Page 11: System Connection

    HDMI HDBaseT 4x4 4K Matrix Kit 3. System Connection 3.1 System Applications The new HDMI HDBaseT 4x4 4K Matrix Kit is designed for the residential market delivering HD Video, Audio to 4 zones with total control and simplicity. Usage Precautions: The HDMI HDBaseT 4x4 4K Matrix Kit should be installed in a clean and dust free ...

  • Page 12: Connection Procedure

    HDMI HDBaseT 4x4 4K Matrix Kit 3.3 Connection Procedure Connect HDMI sources (e.g. DVD) to HDMI input ports of the Matrix Switcher via good quality HDMI cables. Connect the Pre-Installed CAT5e/CAT 6 cable infrastructure to Matrix Switcher and HDBaseT receivers via good quality patch leads. Connect HDTV to HDMI output port via HDMI cable.

  • Page 13: Connection With Hdbaset Receiver

    HDMI HDBaseT 4x4 4K Matrix Kit 3.4 Connection with HDBaseT Receiver The Matrix Switcher has 3 HDBaseT outputs which support PoC technology. Plug in the 4 RJ45 patch leads in to the HDBT outputs and connect to the pre-installed infrastructure. Connect HDBaseT Receivers to the pre-installed cabling via additional patch leads.

  • Page 14: System Operations

    HDMI HDBaseT 4x4 4K Matrix Kit 4. System Operations 4.1 IR Control 4.1.1 IR Remote Connect an IR receiver to the IR EYE port of the Matrix Switcher, users can control it through the included IR remote. Here is a brief introduction to the IR remote. ①...

  • Page 15: Force Carrier

    HDMI HDBaseT 4x4 4K Matrix Kit To convert one input to an output: Example: Input 1 to Output 3 → Press INPUTS 1 + OUTPUTS 3 + ENTER NOTE: Default status, on first boot up this matrix assigns the IR outputs to the corresponding HDMI input, meaning, IR out 1 is directly associated to HDMI input 1 and so on.

  • Page 16: Control Far-End Device Locally

    HDMI HDBaseT 4x4 4K Matrix Kit 4.1.3 Control Far-end Device locally Connect an IR receiver with IR carrier to the IR IN port of the Matrix Switcher; users can control far-end output displayer via its IR remote from local. In that case, the IR signal is transferred via twisted pair. Only the corresponding IR OUT port can emit control signals to the remote display.
  • Page 17 HDMI HDBaseT 4x4 4K Matrix Kit INPUTS IR IN OUTPUTS CONTROL POWER IR EYE HDMI 1 HDMI 2 HDMI 3 HDMI 4 IR OUT 1-HDBT 2-HDBT 3-HDBT 4-HDMI 4-SPDIF TCP/IP RS232 DC 24V Receiver LINK HDCP HDMI OUT IR IN IR OUT TP IN IR Emitter...

  • Page 18: Rs232 Control

    HDMI HDBaseT 4x4 4K Matrix Kit Switching Operation: Sending command (reference to 4.2 RS232 Control): [x1]R[x2]. x1: Corresponding to the 4 IR OUT ports of the Matrix Switcher, the IR transmitter connected to this port can be placed at IR receiving area of output device or the Matrix Switcher itself.

  • Page 19: Rs232 Communication Commands

    HDMI HDBaseT 4x4 4K Matrix Kit The interface of the control software is showed as below: Parameter Configuration area Monitoring area, indicates whether the command sent works. Command Sending area Please set the parameters of COM number, baud rate, data bit, stop bit and the parity bit correctly, only then will you be able to send command in Command Sending Area.
  • Page 20 HDMI HDBaseT 4x4 4K Matrix Kit Baud rate: 9600 Data bit: 8 Stop bit: 1 Parity bit: none Command Function Feedback Example System Commands /*Type; Inquire the models information. XXXXX /%Lock; Lock the front panel buttons on the Matrix. System Locked! Unlock the front panel buttons on the /%Unlock;...
  • Page 21 HDMI HDBaseT 4x4 4K Matrix Kit Command Function Feedback Example with comma). Transfer the IR signal from output [x1] to IR: X1-> X2(X1、 [x1] R[x2]. input [x2]. X2=01~04) AV: Y-> X Check the I/O connection status of output Status[x]. (X=01~04, Y=01~04) AV: 01->01 …...
  • Page 22 HDMI HDBaseT 4x4 4K Matrix Kit Command Function Feedback Example ① Y is for RS232 port (connect with RS232 port of HDBaseT receiver) Y= 1~5 or A~H, The value of Y is defined into the following meanings (in a given baud rate depended by the value of X): a.
  • Page 23 HDMI HDBaseT 4x4 4K Matrix Kit Command Function Feedback Example Hexadecimal EDID Get EDID data from output [x] and display EDIDG[x]. data and carriage the output port number. return character Restore the factory default EDID data of EDIDMInit. EDIDMInit. every input. Manually EDID switching.
  • Page 24 HDMI HDBaseT 4x4 4K Matrix Kit Command Function Feedback Example Force carrier %0901. Switch to force carrier mode. %0911. Reset to factory default. Factory Default Check the command sent by port 1 when Port 1:data when %9951. PWON. PWON Check the command sent by port 2 when Port 2:data when %9952.
  • Page 25 HDMI HDBaseT 4x4 4K Matrix Kit Command Function Feedback Example Out 3 1920x1080 Out 4 1920x1080 1 2 3 4 Check the status of digital audio of output %9977. Audio Y Y Y Y channels. In 01 02 03 04 Check the HDCP compliant status of the %9978.

  • Page 26: Tcp/Ip Control

    HDMI HDBaseT 4x4 4K Matrix Kit 4.3 TCP/IP Control Besides IR control, RS232 control, the Matrix Switcher has TCP/IP port for IP control. Default settings: IP: 192.168.0.178; Subnet Mast: 255.255.255.0; Gateway: 192.168.0.1; Serial Port: 4001. IP& gateway can be changed as you need, Serial Port cannot be changed. Connect the Ethernet port of control device and TCP/IP port of the Matrix Switcher, and set same network segment for the 2 devices, users are able to control the device via web-based GUI or designed TCP/IP communication software.

  • Page 27: Gui For Tcp/Ip Control

    HDMI HDBaseT 4x4 4K Matrix Kit  Controlled by PC(s) in LAN Connect the Matrix Switcher, a router and several PCs to setup a LAN (as shown in the following figure). Set the network segment of the Matrix Switcher to the same as the router’s, then PCs within the LAN are able to control the Matrix Switcher.
  • Page 28 HDMI HDBaseT 4x4 4K Matrix Kit There are 2 selectable usernames – admin (default password: admin) and user (default password: user). Log in as admin can access more configuration interfaces than user. Enter username and the right password. Here is a brief introduction to the interfaces. Main: Interface shown after logging in, provide intuitive I/O connection switching.
  • Page 29 HDMI HDBaseT 4x4 4K Matrix Kit Users: Display or modify credential settings, front panel lock, and GUI version. If there is any modification, press Save to restore the settings, or press Cancel to withdraw. Interface: Set title bar label and button labels, press Save to save the settings...
  • Page 30 HDMI HDBaseT 4x4 4K Matrix Kit Configuration: Set HDCP Compliance status for every input, and manage EDID. See the screenshot below: Network: Inquire and configure network settings including MAC address, IP address, subnet mask, and Gateway Note: Log in as user access main interface only.

  • Page 31: Gui Update

    HDMI HDBaseT 4x4 4K Matrix Kit 4.3.3 GUI Update The GUI for HDMI HDBaseT 4x4 4K Matrix Kit supports online update at URL http://192.168.0.178:100. Type the username and password (the same as the GUI log-in settings, modified password will be available only after rebooting) to log in the configuration interface.

  • Page 32: Firmware Update Via Usb

    HDMI HDBaseT 4x4 4K Matrix Kit 1080P 2D Multichannel 1080P 3D Multichannel 3840x2160 2D（30Hz） Sending the command “UpgradeIntEDID[x].” via RS232 Control Software to upgrade the embedded EDID data, x=1~5. 4.5 Firmware Update via USB The Matrix Switcher has a USB port for online firmware upgrade on the front panel. Follow these steps to upgrade firmware: Step1.

  • Page 33: Specification

    HDMI HDBaseT 4x4 4K Matrix Kit 5. Specification 5.1 HDMI HDBaseT 4x4 Matrix Switcher Video Input Input 4 HDMI Input Connector Female HDMI Input Level T.M.D.S. 2.9V~3.3V 100Ω ( Differential) Input Impedance Support HDMI1.4 & HDCP2.2 and is backward compatible HDMI Standard with all previous standards.

  • Page 34: Hdbaset Receiver

    HDMI HDBaseT 4x4 4K Matrix Kit 1 TCP/IP (female RJ45) 1 RS232 (3-pin pluggable terminal block) Panel Control Front panel buttons RS232 Control 3-pin pluggable terminal block Extended IR receiver TCP/IP Control Web-based GUI General Input: 100-240V~, 50/60Hz Power Supply Output: DC 24V 2.71A Power Consumption 35W (Max)

  • Page 35: Panel Drawing

    HDMI HDBaseT 4x4 4K Matrix Kit 6. Panel Drawing 6.1 HDMI HDBaseT 4x4 Matrix Switcher INPUTS IR IN OUTPUTS CONTROL POWER IR EYE HDMI 1 HDMI 2 HDMI 3 HDMI 4 IR OUT 1-HDBT 2-HDBT 3-HDBT 4-HDMI 4-SPDIF TCP/IP RS232 DC 24V 360 mm FIRMWARE...

  • Page 36: Troubleshooting & Maintenance

    HDMI HDBaseT 4x4 4K Matrix Kit 7. Troubleshooting & Maintenance Problems Potential Causes Solutions The connecting cables may Check whether the cables not be connected correctly are connected correctly Color loss or no video or it may be broken. and in working condition. signal output Make sure the connection Fail or loose connection...
  • Page 37 HDMI HDBaseT 4x4 4K Matrix Kit Change for another HDMI EDID management does The HDMI cable is broken cable which is in good not work normally at the output end. working condition. Switch again. Manage the EDID data The display does not manually to make the There is a blank screen on support the resolution of...

  • Page 38: Customer Service

    HDMI HDBaseT 4x4 4K Matrix Kit 8. Customer Service The return of a product to our Customer Service implies the full agreement of the terms and conditions hereinafter. There terms and conditions may be changed without prior notice. 1) Warranty The limited warranty period of the product is fixed 3 (three) years.
