4x2 HDMI 2.0a Matrix
P/N: AV-GM0843-S1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AV-GM0843-S1 and is the answer not in the manual?

Questions and answers

Related Manuals for SIIG AV-GM0843-S1

Summary of Contents for SIIG AV-GM0843-S1

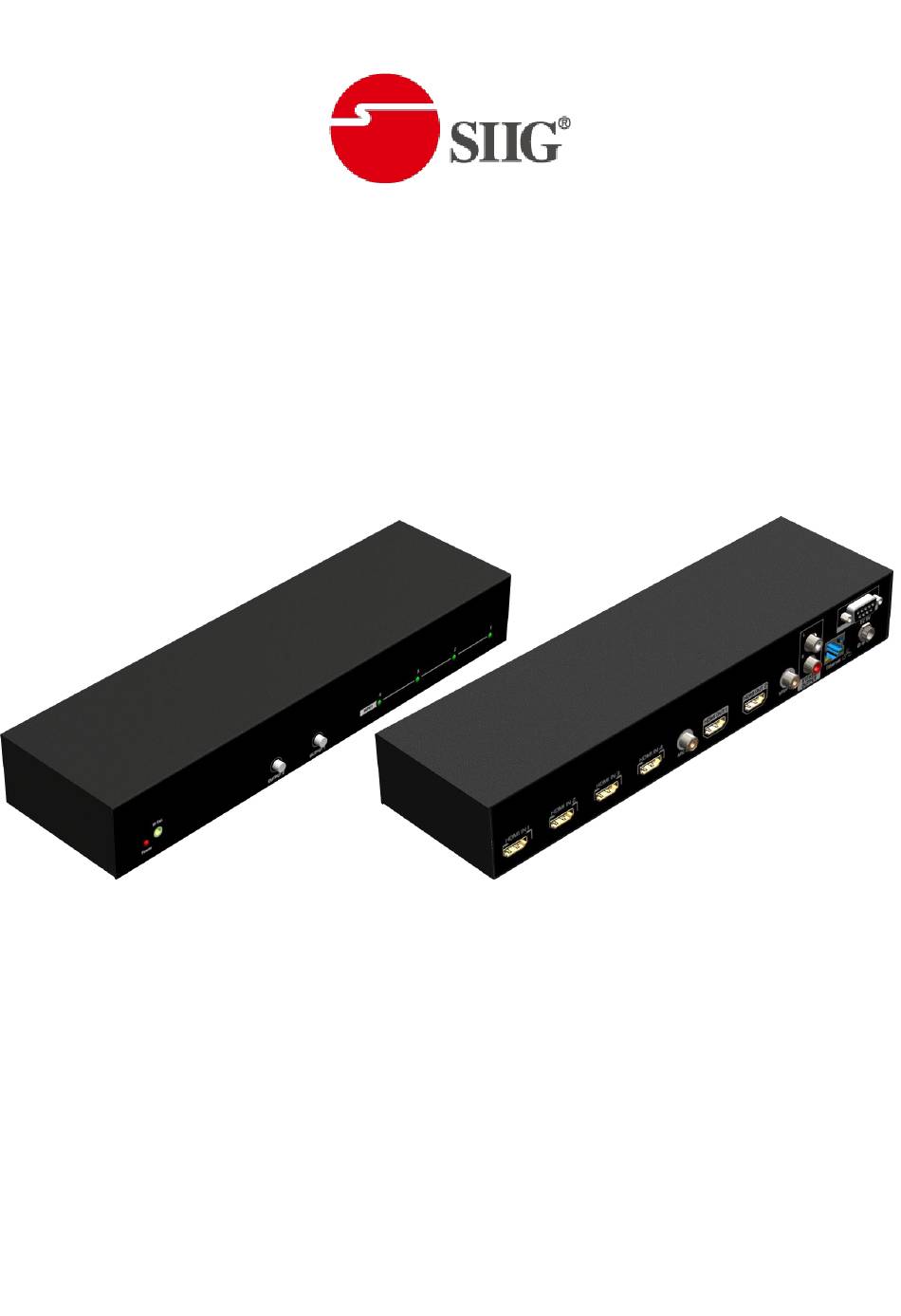

  • Page 1 4x2 HDMI 2.0a Matrix P/N: AV-GM0843-S1...

  • Page 2: Table Of Contents

    However, like all electronic equipments, the AV-GM0843-S1 should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit.

  • Page 3: Introduction

    * HDR = High Dynamic Range. ** The video bandwidth of 4K2K@60 4:2:0 10bits (HDR) is 384MHz, and the 4K2K@60 4:4:4 8bits is 594MHz PACKAGE CONTENTS ● 1x AV-GM0843-S1 ● 1x DC 5V 4A ● 1x IR receiver ● 1x IR Remote control* ●...

  • Page 4: Specifications

    SPECIFICATIONS Model Name AV-GM0843-S1 Technical Role of usage True 4x2 matrix HDMI compliance 3D & 4K2K@60Hz HDCP compliance Video bandwidth Single-link 594MHz [18 Gbps] Video support Up to HDR 4K2K@60 (4:2:0 10bits) / 4K2K@60 (4:4:4 8bits) Audio support Surround sound (up to 7.1ch) or stereo digital audio ESD protection Human body model —...

  • Page 5: Panel Descriptions

    PANEL DESCRIPTIONS Front Panel 1. Power LED: Power indicator LED 2. System IR Receiver: Ext. IR receiver 3. Port 2 Channel Push Button: Select input channel 4. Port 1 Channel Push Button: Select input channel 5. Selected Source Status LED: When users use port channel push button, the indicator LED will show the selected source Rear Panel 6.

  • Page 6: Connection Diagram

    CONNECTION DIAGRAM...

  • Page 7: Operation Approach

    OPERATION APPROACH Method A: Push-in Button 1. IN/OUT MAP Use Port 1 or Port 2 Channel Push Button to select the source Input1~4 can be selected in order Method B: IR Remote Control 1. IN/OUT Switch Push the button on the checkerboard to select Input & Output port. Ex: Select Input 3 to Output 2 Push the red circle button as below to select Input 3 to Output 2...
  • Page 8 2. Function Key Button Function Standby mode Power on the matrix switcher MUTE Turn off output’s video and audio STATUS Preset output status SAVE Save current mapping mode PRESET Preset mapping mode DEFAULT EDID Begin default EDID selection LEARN EDID Begin EDID learning from one output CLEAR Clear the previous IR operation procedure...
  • Page 9 Ex: Mute Output 2 1. Press “MUTE” button 2. Press number key “B” to select Output 2 3.Press “TAKE” button Method C: Software Control through RS-232 port / Ethernet port System Requirement 1) OS Information: MS WinXP/7 2) Baud rates: 9600 3) Software size: 3 MB 4) Minimum RAM requirement: 256 MB Method D: Software Control through RS-232 port...
  • Page 10 1) I/O Mapping: a) Click the button on the checkerboard to select Input & Output port 2) Recall Mapping: a) Select the stored Mapping(1-8) b) Click “Recall” button to recall previous mapping which are saved 3) Save Mapping: a) Select Mapping(1-8) b) Click “Save”...
  • Page 11 EDID Button 1) Learn EDID from Default to Input a) Select Default EDID(1-8 Default EDID) b) Select designated Input c) Click “Apply” button to learn from default EDID 2) Learn EDID from Display to Input a) Select output b) Select designated Input c) Click “Apply”...
  • Page 12 System Button 1) Network a) DHCP mode => Click DHCP and then click the “Read” button to get the IP address Info b) Static mode => Click Static and then key in the “IP”, “MASK”, ”GATEWAY” info. After setting IP Address, please click “Save”...
  • Page 13 Method E: Web Interface Control The default IP address: 192.168.1.111 Account: admin Password: matrix I/O Routing Button EDID Button Power ON/ Standby mode Refresh I/O Status 1. I/O Routing Button 1) I/O: a) Switch the input for each output 2) Save Mapping: a) Select Mapping(1-8)
  • Page 14 b) Click “Save” button to save current mapping 3) Recall Mapping: a) Select the stored Mapping(1-8) b) Click “Recall” button to recall previous saved mapping 2. EDID Button 1) Learn EDID from Default a) Select Default EDID(1-8 Default EDID) b) Select Input c) Click “Send”...

  • Page 15: Edid Learning

    EDID LEARNING The EDID learning function is to resolve audio and video playing issues at HDMI output port. Because the HDMI source devices and displays may have various level of capability in playing audio and video, the general principle is that the source device will output the lowest standards in audio format and video resolutions to be commonly acceptable among all HDMI displays.

  • Page 16: Faq

    Can every TV work with the HDMI matrix? Basically, the answer is YES. But if your TV can not support UltraHD, please refer the EDID LEARNING section to learn EDID from your TV. What is EDID? Why do I need to learn EDID? EDID contains the whole information of the display such as the resolution and audio setting which this display can support.

  • Page 17: Warranty

    The SELLER will NOT be liable for direct, indirect, incidental, special, or consequential damages resulting from any defect or omission in this manual, even if advised of the possibility of such damages. Also, the technical information contained herein regarding the AV-GM0843-S1 features and specifications is subject to change without further notice.
