Installation Manual

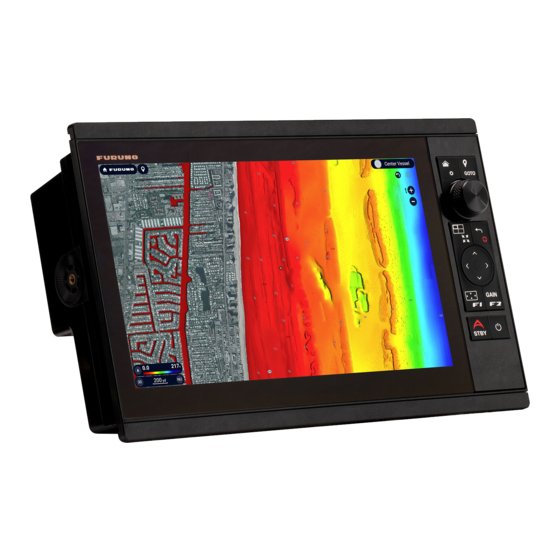

MULTI FUNCTION DISPLAY
TZT10X/TZT13X
Model
SAFETY INSTRUCTIONS ................................................................................................ i
SYSTEM CONFIGURATION .......................................................................................... iii
EQUIPMENT LISTS......................................................................................................... v
1. MOUNTING..............................................................................................................1-1
1.1 Installation of Multi Function Display..................................................................................1-1
1.2 Flush Mounting ..................................................................................................................1-2
1.3 Desktop Mounting ..............................................................................................................1-5
1.4 Installation of Transducers.................................................................................................1-6
2. WIRING....................................................................................................................2-1
2.1 Interface Connections (Rear of the unit) ............................................................................2-1
2.2 Power Cable ......................................................................................................................2-2
2.3 Grounding Wire..................................................................................................................2-2
2.4 MULTI Cable......................................................................................................................2-2
2.5 DRS Radar Sensor Connections .......................................................................................2-3
2.6 Network Connection with Other TZT Series Units .............................................................2-4
2.7 NMEA 2000 Connector ......................................................................................................2-4
2.8 Example TZT10X/13X System Configuration ....................................................................2-8
3. HOW TO SET UP THE EQUIPMENT......................................................................3-1
3.1 How to Set Time Zone, Time Format and Language.........................................................3-5
3.2 How to Set Units of Measurement .....................................................................................3-6
3.3 Initial Setup ........................................................................................................................3-7
3.4 How to Set Up the Radar (For the service technician only) .............................................3-13
3.5 How to Set Up the Fish Finder.........................................................................................3-15
3.6 Wireless LAN Setting .......................................................................................................3-21
3.7 Ferry Mode.......................................................................................................................3-23
3.8 How to Manage Your Charts............................................................................................3-23
3.9 IP Camera Setup .............................................................................................................3-28
PACKING LIST(S) ....................................................................................................... A-1
OUTLINE DRAWING(S) .............................................................................................. D-1
INTERCONNECTION DIAGRAM(S) ........................................................................... S-1
www.furuno.com
All brand and product names are trademarks, registered trademarks or service marks of their respective holders.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TZT13X and is the answer not in the manual?

Questions and answers

Related Manuals for Furuno TZT13X

Summary of Contents for Furuno TZT13X

  • Page 1: Table Of Contents

    Installation Manual MULTI FUNCTION DISPLAY TZT10X/TZT13X Model SAFETY INSTRUCTIONS ....................i SYSTEM CONFIGURATION ..................iii EQUIPMENT LISTS......................v 1. MOUNTING......................1-1 1.1 Installation of Multi Function Display..................1-1 1.2 Flush Mounting ........................1-2 1.3 Desktop Mounting ......................1-5 1.4 Installation of Transducers....................1-6 2. WIRING........................2-1 2.1 Interface Connections (Rear of the unit) ................2-1...
  • Page 2 ・FURUNO Authorized Distributor/Dealer 9-52 Ashihara-cho, Nishinomiya, 662-8580, JAPAN A : MAR 2024 Printed in Japan All rights reserved. Pub. No. IME-45260-A (TEHI ) TZT10X/TZT13X 0 0 0 2 0 1 1 5 5 1 1...

  • Page 3: Safety Instructions

    Model compass compass If your vessel is configured with 0.30 m 0.45 m TZT10X an autopilot system, install an TZT13X 0.50 m 0.30 m autopilot control unit (or emer- gency autopilot stop button) at HUB-101 0.80 m 0.50 m each helm station, to allow you to disable the autopilot in an emergency.
  • Page 4 SAFETY INSTRUCTIONS WARNING The radar antenna sends electromagnetic radio frequency (RF) energy. This energy can be dangerous to you, especially your eyes. Do not look at the radiator or near the antenna when the antenna is rotating. The distances at which RF radiation levels of 100 W/m and 10 W/m exist are shown in the table.

  • Page 5: System Configuration

    : Use a commercially available PoE hub. The NETGEAR GS108PE has tested as compatible. The basic functions of the hub were verified, however the compatibility of all functions were not checked. FURUNO cannot guarantee proper operation. : The connected FUSION-Link device must also have Ethernet connectivity.
  • Page 6 SYSTEM CONFIGURATION TZT series network connections The TZT series can be connected on the same network in the following combinations. TZtouch: TZtouch2: TZtouch2: TZtouch3: TZT9/14/BB TZTL12F/15F TZT2BB TZT9F/12F/16F/19F TZtouchXL: TZT10X/13X/ : Version 9.70 or later : Version 3.70 or later...

  • Page 7: Equipment Lists

    EQUIPMENT LISTS Standard supply Name Type Code No. Remarks Multi Function Display TZT10X Including installation materi- als, accessories and spare TZT13X parts. Optional supply Name Type Code No. Remarks NMEA Data Converter IF-NMEA2K2 000-020-510 Remote Control Unit MCU-005 000-035-097 MCU-006...
  • Page 8 EQUIPMENT LISTS Name Type Code No. Remarks 520-5PSD 000-015-204 Transducer* 520-5MSD 000-015-212 525-5PWD 000-027-447 520-PLD 000-023-680 525T-BSD 000-023-020 525T-PWD 000-023-019 SS60-SLTD/12 000-023-676 SS60-SLTD/20 000-023-677 525T-LTD/12 000-023-679 525T-LTD/20 000-023-678 526TID-HDD 000-023-021 50/200-1T *10M* 000-015-170 Require MB-1100 for connection (available 50B-6 *10M* 000-015-042 separately).
  • Page 9 EQUIPMENT LISTS Other compatible transducers (local supply) The transducers (Manufactured by AIRMAR Technology Corporation) listed in the table below are compatible with this equipment. Single Frequency CHIRP (For internal fish finder) Output power Model 300 W B150M SS75L P95M 600 W B75M B785M SS75M...
  • Page 10 EQUIPMENT LISTS This page is intentionally left blank. viii...

  • Page 11: Mounting

    MOUNTING Installation of Multi Function Display The TZT10X/13X is designed to be mounted in a console or mounted on a desktop. The installer of this equipment must read and follow the descriptions in this manual. Wrong installation or maintenance can void the warranty. Mounting considerations When selecting a mounting location for your TZT10X/13X, keep the following in mind: •...

  • Page 12: Flush Mounting

    1. MOUNTING Flush Mounting Referring to the figure below, select a flat mounting location. Read the installation in- structions before starting. Pay particular attention to the notes; failure to follow these instructions may cause damage to the unit. Note: Ensure the mounting location is flat, with no indents or protrusions, to allow a secure fit.
  • Page 13 1. MOUNTING 5. Set the TZT10X/13X to the cutout made at step 1. For installations using the mounting plate, the screws fitted at step 4 should align with the gaps in the unit. Note 1: Cables not shown in figure for simplification. Note 2: Take care not to pinch the cables when fitting the unit.
  • Page 14 1.2.1 Retrofit Kit for TZT13X (local supply) When upgrading to the TZT13X, prepare the front fixing panel. See the outline drawing of the front fixing panel for the details. Note: The outline drawing assumes upgrading from the following models.

  • Page 15: Desktop Mounting

    1. MOUNTING Desktop Mounting Follow the appropriate procedure below to mount the TZT10X/13X. 1. Fix the hanger by using self-tapping screws (520 SUS304, supplied). The screw locations are indicated in the figure below. 2. Place the TZT10X/13X face-down on a soft, clean surface, then fit the washers and knob bolts as shown in the figure below, leaving a gap of approximately 30 mm.

  • Page 16: Installation Of Transducers

    1. MOUNTING Installation of Transducers CAUTION Do not cover the transducer with FRP resin. The heat generated when the resin hardens may damage the transducer. CHIRP transduc- ers are especially vulnerable to heat. Note: For instructions regarding installation ø22 ø24 of network fish finder transducers, see the re- spective manual.
  • Page 17 1. MOUNTING and these must be avoided by keeping the transducer inboard of them. • The transducer must always remain submerged, even when the boat is rolling, pitching or up on a plane at high speed. • A practical choice would be somewhere between 1/3 and 1/2 of your boat's length from the stern.
  • Page 18 1. MOUNTING Note: Tightening torque should not exceed 39 N•m. Over-tightening will damage the plastic screws. 1.4.2 How to mount a transducer inside the hull NOTICE This installation method affects the ability to detect the bottom, fish and other objects because the ultrasound pulse is weakened when it passes through the hull.
  • Page 19 (power switch) to turn the power on. 4. After the startup procedure completes (approx. 90 seconds), the last-used display appears. Tap the Water [FURUNO] icon ( ) to show the home screen and display mode settings. See section 3.3 Hull plate for how to use the menu.
  • Page 20 5. Turn the power on and change the menu setting as shown below. See section 3.3 for how to use the menu. 1) Tap the [FURUNO] icon to show the home screen and display mode settings. 2) Scroll the menu to show [Fish Finder] in the menu, then tap [Fish Finder Initial Setup] menu.
  • Page 21 1. MOUNTING Menu Item Setting Bottom Level LF Gain Offset HF Gain Offset LF 1.4.3 How to install the transom mount transducer The optional transom mount transducer is very commonly employed, usually on relatively small I/O or outboard boats. Do not use this method on an inboard motor boat because turbulence is created by the propeller ahead of the transducer.
  • Page 22 1. MOUNTING This installation method has a merit for avoiding the bubbles by diverting turbulent wa- ter around the sides of the transducer rather than over its face. However, it may cause damage to the transducer during trailering, launching, hauling, and storage. Transducer preparation Before putting your boat in water, wipe the face of the transducer thoroughly with a liquid detergent.
  • Page 23 1. MOUNTING However, select the location where influ- Height without ences from bubbles and turbulences to speed sensor ensure the best performance. Allow ade- 191 mm (7-1/2") quate space above the bracket for it to re- Height with Height Height lease and rotate the sensor upward as speed sensor shown in the right illustration.
  • Page 24 1. MOUNTING drilling too deeply, wrap masking tape around the bit 22 mm (7/8") from the point. Fiberglass hull: Minimize surface cracking by chamfering the gelcoat. If a chamfer bit or countersink bit is not available, start drilling with a 6mm or 1/4" bit to a depth of 1 mm (1/16").
  • Page 25 1. MOUNTING 5. Using the vertical adjustment space on the bracket slots, slide the sensor up or down to provide a projection of 3 mm (1/ Cable cover 8"). Tighten the screws. Cable clamp 50 mm (2") Hull projection 3 mm (1/8") How to attach the sensor to the bracket 1.
  • Page 26 1. MOUNTING 3. If a hole has been drilled in the transom, open the appropriate slot in the transom cable cover. Position the cover over the cable where it enters the hull. Mark the two mounting holes. 4. At each of the marked locations, use a 3 mm or 1/8" bit to drill a hole 10 mm (3/8") deep.

  • Page 27: Wiring

    WIRING Interface Connections (Rear of the unit) SIDE SIDE NMEA2000 NMEA2000 MULTI MULTI POWER POWER SCAN SCAN WORK WORK Ship’s Ship’s Rear of the unit Ground Ground Analog video input The TZT10X/13X can use regular analog video inputs (PAL or NTSC) that connect to the TZT10X/13X directly via the Video In connector on the optional MULTI cable (connected to the MULTI port).

  • Page 28: Power Cable

    2. WIRING XDR port The type and combination of transducer determines the port to which the transducer cable is connected. Note 1: Supply voltages are different depending on XDR ports. Be sure to connect each transducer to the correct port (see the table below). Note 2: When using the optional extension cable (for 10-pin: C332 10M, for 12-pin: FRU-CCB12-DA-10M), keep the following points in mind.

  • Page 29: Drs Radar Sensor Connections

    Note: To set up data input from NMEA 0183 equipment, see "NMEA 0183 equipment data input" on page 2-5. 1. Tap the [FURUNO] icon ( ) to show the home screen. 2. Tap [Settings], drag the menu to show [Initial Setup], then tap [Initial Setup].

  • Page 30: Network Connection With Other Tzt Series Units

    All the NMEA 2000 devices can be incorporat- ed into the NMEA 2000 network. For detailed information about NMEA 2000 wiring, see "FURUNO CAN bus Network Design Guide" (Type: TIE-00170). 2.7.1 How to connect the NavNet TZtouchXL to NMEA 2000 equip- ment Below is an example of two units, connected to NMEA 2000 sensors via the network.
  • Page 31 2. WIRING 2.7.2 NMEA 0183 equipment data input Note: To output NMEA 0183 data, see paragraph 2.4.1. To connect NMEA 0183 equipment to TZT10X/13X, use the NMEA 2000 network via the optional NMEA data converter IF-NMEA2K2 (or IF-NMEA2K1). This NMEA connection can accept a baud rate of 4800 or 38400.
  • Page 32 Temperature, Extended Range 130576 Trim Tab Status 130577 Direction Data 130578 Vessel Speed Component 130817 Furuno GNSS Control Status (Proprietary PGN) 130818 Heading & Attitude Sensor Control Status (Proprietary PGN) 130820 Motion Sensor Status(Proprietary PGN) 130822 130822 Unit Division Code(Proprietary PGN) 130823...
  • Page 33 2. WIRING Output PGN The NMEA 2000 output PGN setting (found under the [Initial Setup] menu) is global to the network. Note that only one TZT10X/13X will output NMEA 2000 data on the net- work at a time: the TZT10X/13X which is powered ON first. If that display is turned OFF, another will take its place to output the data.

  • Page 34: Example Tzt10X/13X System Configuration

    2. WIRING Example TZT10X/13X System Configuration Mid/Large-size vessels (External GPS, Fish Finder, Radar) This is a single station chart plotter/radar/fish finder installation. Refer to "SYSTEM CONFIGURATION" on page ii for more details. Radar Sensor Radar Sensor DRS6A X-Class/DRS12A X-Class/ DRS4D X-Class/DRS4DL+/ DRS25A X-Class/DRS6A-NXT/ DRS2D-NXT/DRS4D-NXT...

  • Page 35: How To Set Up The Equipment

    HOW TO SET UP THE EQUIPMENT This chapter shows you how to set up your system according to the equipment you have connected. Touch control description The touch control depends on the screen type. The basic operations to use during the installation setup are in the following table.
  • Page 36 • Locks, unlocks the touch screen. AUTO /STBY key Switches autopilot steering mode between automatic and manual, when connected to a FURUNO NAVpilot. When the mode is switched, a beep sounds and one of the following messages ap- pear. Manual modeAutomatic mode: "Navpilot has started".
  • Page 37 (power switch) to turn the power on. 2. After the startup process completes, the last-used display appears and a warning message is displayed. After reading the message, tap [OK]. 3. Tap the FURUNO icon ( ) to show the home screen and available display modes.
  • Page 38 3. HOW TO SET UP THE EQUIPMENT 5. Scroll the menu to show [Initial Setup], then tap [Initial Setup]. Back icon Close icon Menu title Preview screen Preview screen Menu Menu Changes made in the Changes made in the items items menu can be menu can be...

  • Page 39: How To Set Time Zone, Time Format And Language

    Before setting up your equipment, select the time zone, language and units to use on your equipment as shown below. 1. Tap the FURUNO icon ( ) to show the home screen and display mode settings. 2. Tap [Settings] to show the [Settings] menu.

  • Page 40: How To Set Units Of Measurement

    3. HOW TO SET UP THE EQUIPMENT How to Set Units of Measurement 1. Tap the FURUNO icon ( ) to show the home screen and display mode settings. 2. Tap [Settings] to show the [Settings] menu. 3. Scroll the main menu to display [Units], then tap [Units].

  • Page 41: Initial Setup

    Note: Some units are set to metric in this section, actual setting ranges vary depending on the unit of measurement set in the [Units] menu. 1. Tap the FURUNO icon ( ) to show the home screen and display mode settings.
  • Page 42 Select the source for each data to input to the system. If two or more sources are connected for a data, select one using the pull-down dialog box. The FURUNO products are shown at the upper part of the list. [Sensor List] Show the information for sensors connected to your equipment.
  • Page 43 3. HOW TO SET UP THE EQUIPMENT Menu item Description Option (setting range) [FA-50 Browser] Show the AIS Receiver FA-50 display. [SC-30 Setup] section (only when the SC-30 is connected) Menu item Description Options (setting range) [WAAS Mode] Turn On to use the WAAS mode. Off, On [Heading Offset] Enter the offset value for heading.
  • Page 44 3. HOW TO SET UP THE EQUIPMENT Menu item Description Options (setting range) [Resistance Full] The resistance, in Ohms, when the tank is full. 0 (ohm) to 500 (ohm) [Resistance Mid] The resistance, in Ohms, when the tank is half 0 (ohm) to 500 (ohm) full.
  • Page 45 MCU-004/-005/-006 connection. Further, the cycling order of displays can be set. See the Operator’s Manual. [Sirius Radio Diag- Check the satellite radio of the FURUNO BBWX SiriusXM weather receiver nostic] for proper operation. See the Operator’s Manual. [Sirius Weather Diag-...
  • Page 46 3. HOW TO SET UP THE EQUIPMENT Menu Item Description Options (setting range) [Min. Temperature] Set the minimum temperature for your 0.00°C to 99.00°C engine. [Red Zone Temperature] Set the starting value for the red zone area 0.01°C to 999.00°C of the engine temperature indicator.

  • Page 47: How To Set Up The Radar (For The Service Technician Only)

    3. HOW TO SET UP THE EQUIPMENT How to Set Up the Radar (For the service techni- cian only) 1. Tap the FURUNO icon ( ) to show the home screen and display mode settings. 2. Tap [Radar] from the [Settings] menu.
  • Page 48 3. HOW TO SET UP THE EQUIPMENT Menu item Description Options (setting range) [Manual Tuning] Manually tune the radar. -50 to 50 [Radar Monitoring] Display various information regarding the connected radar. [Radar Optimization] Automatically adjust magnetron output and tuning for the connected ra- dar.

  • Page 49: How To Set Up The Fish Finder

    Note 1: Some menu items are restricted to certain external depth sounders and some menu items may not be available when using the internal depth sounder. Note 2: For DFF-3D setup instructions, see the DFF-3D operator’s manual. 1. Tap the FURUNO icon ( ) to show the home screen and display mode settings.
  • Page 50 3. HOW TO SET UP THE EQUIPMENT [Fish Finder Initial Setup] section Options Menu item Description (setting range) [Transducer Setup] Setup Transducer and Motion Sensor. See "[Transducer Setup] section" on page 3-17. [Preset Frequency Set to change the TX center frequency and CHIRP width. [Preset Frequen- Setup] Please refer to the instruction manual for details.
  • Page 51 3. HOW TO SET UP THE EQUIPMENT Options Menu item Description (setting range) [Auto Gain Offset If the auto gain offset is wrong, or there is a difference in -5 to +5 the gain between the low and high frequencies, set an [Auto Gain Offset offset here to balance auto gain for the two frequencies.
  • Page 52 • [Manual]: Manually set up the transducer. • [Model]: Select the appropriate transducer model (for FURUNO or AIRMAR transducers). [Model Number] Select the appropriate model number from the list. Note: Only available when [Transducer Setup Type] is set to [Model].
  • Page 53 3. HOW TO SET UP THE EQUIPMENT Menu item Description Options (setting range) [Frequency Adjust LF] is selected at [TX Mode LF], fine-tune the low-frequency TX fre- quency to eliminate interference (setting range: -50 to +50). Set to [0] where there is no interference. [CHIRP Width LF] If *1 is selected in [TX Mode LF], set the CHIRP frequency band of the transducer connected to the low frequency side.
  • Page 54 3. HOW TO SET UP THE EQUIPMENT Note 2: To use the heaving function, the following settings are required at the satellite compass. For the setting procedure, see the operator’s manual for your satellite com- pass. Settings for SC-30 are done from the [IF-NMEASC] menu, settings for SCX-20 is done from the [DATA OUT] menu.

  • Page 55: Wireless Lan Setting

    How to join an existing wireless network By connecting to an existing network, you may download software updates and weather information from the Internet. 1. Tap the FURUNO icon ( ) to show the home screen and display mode settings.
  • Page 56 3. HOW TO SET UP THE EQUIPMENT 7. Using the software keyboard, name the unit, then tap the 8. Tap [Password] in the [LOCAL NETWORK SETTINGS] menu. 9. Using the software keyboard, set the password, then tap the 10. Tap [Local Network] in the [ENABLE LOCAL NETWORK] menu to activate the wireless network.

  • Page 57: Ferry Mode

    3. HOW TO SET UP THE EQUIPMENT Ferry Mode Note: Only the SC-30, SC-33, and SCX-20 support the Ferry Mode. Ferry mode allows the user to change the screen orientation by 180°. Note that all the above heading sensors must support heading offset command from the TZT10X/13X. Both heading sensors and radar sensors must be powered on when the TZT10X/13X sends the command.
  • Page 58 3. HOW TO SET UP THE EQUIPMENT 1. Home page[Charts][TZ MAPS Store]. Tap here to highlight the selected area, on the right side of the screen (White background: Not purchased, Blue background: Purchased). [Buy]: Not purchased, [ ]: Purchased *: When the license expires (one year), the indication changes to [Subscribe], and when you select and purchase a subscription, the indication changes to [Subscribed].
  • Page 59 3. HOW TO SET UP THE EQUIPMENT If you are not connected to the Internet, a quick-response code appears. Use your smartphone/tablet to read it and display the “buy screen”. Quick-response code 3. Select how to buy the chart. 4. Enter the required information. 5.
  • Page 60 3. HOW TO SET UP THE EQUIPMENT The update begins and progress is indicated at the bottom left corner of the screen. The [Check for Updates] button label changes to [Cancel], and when the update is completed it changes to [Download Updates]. For individual download, the selected area is given [Favorites] status, Tap [×] on the title bar to close the T[TZ MAPS Update] screen and complete the process.
  • Page 61 3. HOW TO SET UP THE EQUIPMENT 3.8.3 How to display the MM3D charts catalog The charts catalog shows all the charts incorporated in your equipment. To show the charts catalog, Home page→[Charts]→[MM3D Charts Catalog]. Tap to dowload chart unlock codes. Tap to show [FIlter charts] pop-up menu.

  • Page 62: Ip Camera Setup

    3. HOW TO SET UP THE EQUIPMENT How to hide unnecessary charts on the chart catalog list 1. Tap [Filter] on the chart cata- log list title bar to show the [Filter charts] window. 2. Select [OFF] for the items that you want to hide.

This manual is also suitable for:

Tzt10x

Table of Contents
