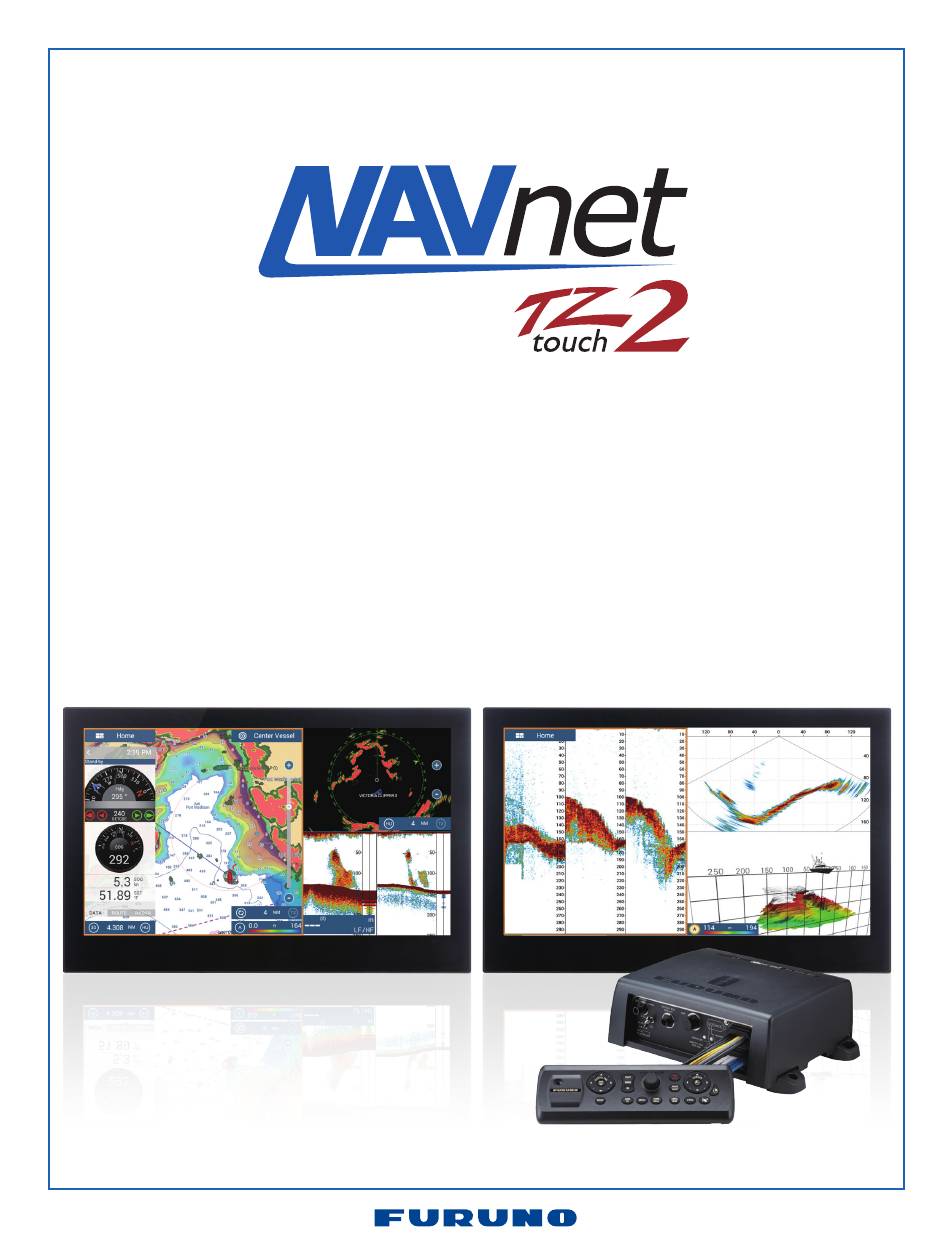

- Page 1 TZT2BB FAQ...
- Page 2 Optional remote controllers available for the TZT2BB? Optional remote controllers are the MCU002, MCU004 and MCU005. The MCU002 and MCU004 USB remote controllers as well as the MCU005 Ethernet remote controller are compatible with the TZT2BB as well as TZTL12F/15F MFDs with software v6.21 and above. More than one MCU004/5 can be connected to a single TZT2BB.
- Page 3 Can standard PC monitors be used with TZtouch2 MFDs for remote displays? Yes. While standard monitors can be used, it is recommended that the monitor be tested with the TZT2BB before it is mounted to see if it is compatible or not. The TZT2BB does not support proprietary drivers, such as 10-point touch features.
- Page 4 What connections are available on the Multi-cable port? The Multi-cable has connections for an optional power switch, NMEA0183 output, external buzzer and event switch. It has 11 color coded wires. Does NavNet TZtouch2 have built in NMEA0183 functionality? Yes. TZT2BB has a single NMEA0183 output port. TZT2BB does not have an NMEA0183 input port.
- Page 5 The TZT2BB does not require a special Ethernet Hub. While we recommend the Furuno HUB101, any standard 100MB Ethernet Hub/Switch is compatible with the network. If a HUB101 is not used, a Gigabit Switch is recommended.
- Page 6 Are standard Microsoft USB Mice and Pointing Devices compatible with the TZT2BB? Yes, as long as a special driver is not required. You cannot load any drivers into the TZT2BB. You can perform almost every function using a mouse trackball and wheel.
- Page 7 Locked chart areas will need to be purchased from an Authorized Furuno Dealer. Once chart areas are purchased, they can be automatically unlocked by connecting the TZT2BB to the Internet.
- Page 8 TZT2BB and TZtouch2 MFDs with software version 6.21 and above. There are some feature limitations, but basic functions are available on the TZtouch2 MFDs. Contact Furuno Tech support for more information. Is the TZT2BB and TZtouch2 MFDs compatible with Nobeltec TZ? TZ Professional and TZ Navigator (with Radar module) can be connected to a TZtouch2 network.
- Page 9 Also, with the TZT2BB you can utilize the HDMI IN port along with the USB passthrough port to view and control a Nobeltec PC using the same monitor that is connected to the TZT2BB. You can also view and control the Nobeltec PC in a quarter screen.
