This guide provides the basic operating procedures for this equipment. For detailed information,
see the Operator's Manual.
The brand and product names mentioned in this guide are trademarks, registered trademarks or
service marks of their respective holders.
Most of the screenshots in this manual are for TZT9/TZT14.

Table of Contents

Controls .................................................................................................................................... 1
Chart Plotter.............................................................................................................................. 3
Radar ........................................................................................................................................ 6
AIS (Automatic Identification System) .................................................................................... 10
Fish Finder.............................................................................................................................. 11
Wireless LAN Setting.............................................................................................................. 14

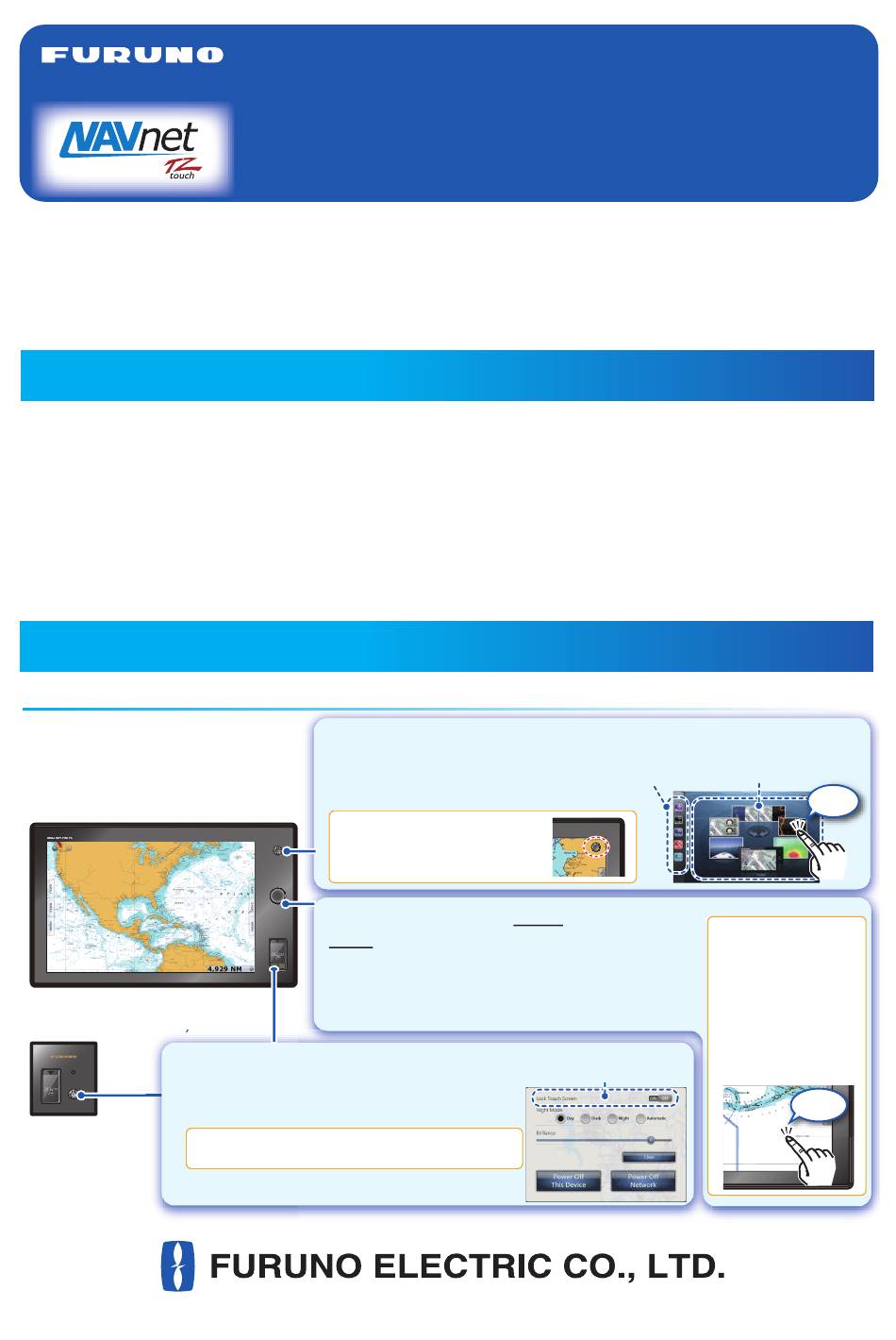

Controls

Key control
Key control
TZT9/TZT14
TZT9/TZT14
TZTBB (Switch box)
TZTBB (Switch box)
)
)
Power key
- Turns the power on.
- Adjusts the brilliance of the display.
For TZTBB:
For TZTBB:
For TZTBB:
For TZTBB:
For TZTBB:
MULTI FUNCTION DISPLAY
TZT9/TZT14/TZTBB
Home key
- Opens the display selection window.
- Displays the menu icon bar.
For TZTBB:
For TZTBB:
For TZTBB:
For TZTBB:
For TZTBB:
Displayed on the screen
as an icon.
RotoKey
Push:
Opens the RotoKey
menu or validates the
selected item.
Adjusts the brilliance of the power indicator.
- Turns the power off. (Device or Network)
www.furuno.com
TM
Rotate:
- Selects an item on the
RotoKey menu.
- Selects the range scale
on the chart plotter or
the radar screen.
Displayed only
on TZT9/TZT14
User's Handbook
Display selection
Menu
window
icon bar
For TZTBB:
For TZTBB:
For TZTBB:
For TZTBB:
For TZTBB:
Tap the screen to
display the RotoKey
menu. If the menu
you are looking for
is not shown, select
[More...] (then drag
the menu items)
then tap it to select.
Tap
Tap

Advertisement

loading
Need help?

Need help?

Do you have a question about the TZT9 and is the answer not in the manual?

Questions and answers

Related Manuals for Furuno TZT9

Summary of Contents for Furuno TZT9

  • Page 1: Table Of Contents

    Operator's Manual. The brand and product names mentioned in this guide are trademarks, registered trademarks or service marks of their respective holders. Most of the screenshots in this manual are for TZT9/TZT14. Table of Contents Controls ............................ 1 Chart Plotter..........................
  • Page 2 Orientate 3D view. Switch from Drag upward or 2D to 3D. downward. How to operate the menus How to operate the menus Main menu TZT9/TZT14: Default Route Color Ship & Track Route Thickness Routes Routes Navigate with AutoPilot Home key...

  • Page 3: Chart Plotter

    Chart Plotter Heading line Heading line Route Route 10:30 Point Point °M 291.7 Your Your ship’s ship’s track track Data area Chart scale North indicator Data area (Data box) Data area (Data box) The data area at both sides of the screen shows the navigation data, with data boxes. You can select the data to display in the area, and show or hide the data boxes as necessary.
  • Page 4 Points Points You can put points on the chart plotter display. The position of the point, symbol and color information are saved to the points list. How to put a point New Point New Point The point is put on the screen. Select the position to set as a point.
  • Page 5 Routes Routes A route is a series of route points entered in the order to use for navigation. The routes are saved to the routes list. How to create a new route New Route New Route Select the next route point in Select the 1st route the route.

  • Page 6: Radar

    Radar North mark North mark Heading line Heading line Guard zone Guard zone 10:30 AM DRS_RADOME Gain Rain Data area Range Range ring interval Range rings Your ship’s position Your ship’s position How to toggle TX and Stand-by How to toggle TX and Stand-by TX mode TX mode Tx Radar...
  • Page 7 How to measure the range and bearing from your ship to a target How to measure the range and bearing from your ship to a target Range 0.993 NM Range 0.993 NM Bearing 306.2° Object Object Bearing 306.2° Select an object to get the range and bearing.
  • Page 8 ARPA ARPA The ARPA (Automatic Radar Plotting Aid) is a radar function for target tracking and collision avoidance. ARPA tracks targets and provides target’s navigation information. You can track targets automatically, manually or a combination of both. How to show or hide the ARPA display ARPA Show the ARPA display.
  • Page 9 CPA/TCPA alarm The CPA/TCPA alarm alerts you with the audio and visual alarms when a tracked target violates the limits selected. CPA: Closest Point of Approach TCPA: Predicted Time to CPA How to set the CPA/TCPA alarm How to set the CPA/TCPA alarm Radar Targets Targets...

  • Page 10: Ais (Automatic Identification System)

    AIS (Automatic Identification System) How to show or hide the AIS symbols How to show or hide the AIS symbols Show the AIS symbols. AIS/DSC ◄ Targets Hide the AIS symbols. AIS/DSC RotoKey menu AIS target symbols AIS target symbols Class A AIS Class B AIS BFT AIS...

  • Page 11: Fish Finder

    Fish Finder Depth scale Fish symbol* Bottom echo 750- 780 ft 556 ft Depth scale A-scope Depth Frequency mode display *: The ACCU-FISH feature estimates the length of each fish and shows a fish symbol and depth value or fish length. This feature requires appropriate transducer and either Sounder BBDS1, DFF1, DFF3, DFF1-UHD or FCV-1150.
  • Page 12 ◄ Adjust Manual Manual RotoKey menu Manual mode Manual operation How to set the range How to set the range TZT9/TZT14: Clear the mark. Right: Decrease the range. Left: Increase the range. Auto Range RotoKey RotoKey menu TZTBB: Pinch the screen.
  • Page 13 Zoom display Zoom display Btm Lock For detecting the bottom fish. ◄ Mode RotoKey menu Btm Zoom For discriminating bottom fish from Short bottom tail: Soft bottom bottom echo. Long bottom tail: Hard bottom ACCU-FISH ACCU-FISH The ACCU-FISH feature estimates the length of each fish and shows a fish symbol and depth value or fish length.

  • Page 14: Wireless Lan Setting

    Wireless LAN Setting You can connect to the internet with the wireless LAN signal to download weather information and to connect to an iPhone, iPod or iPad. How to connect an existing LAN network To download weather information, connect the existing LAN network. General General Connect to the Internet...
  • Page 15 How to create a local wireless network To connect to an iPhone, iPod or iPad, create a local wireless network. General General Ship & Track Main menu Wireless LAN Settings Wireless Select Wireless LAN Settings Wireless Mode Create local network Create local Wireless network NAVNETTZT Connect to the Internet...
  • Page 16 Pub. No. E42-01107-D (1704, DAMI) TZT9/TZT14/TZTBB 00017608513...
