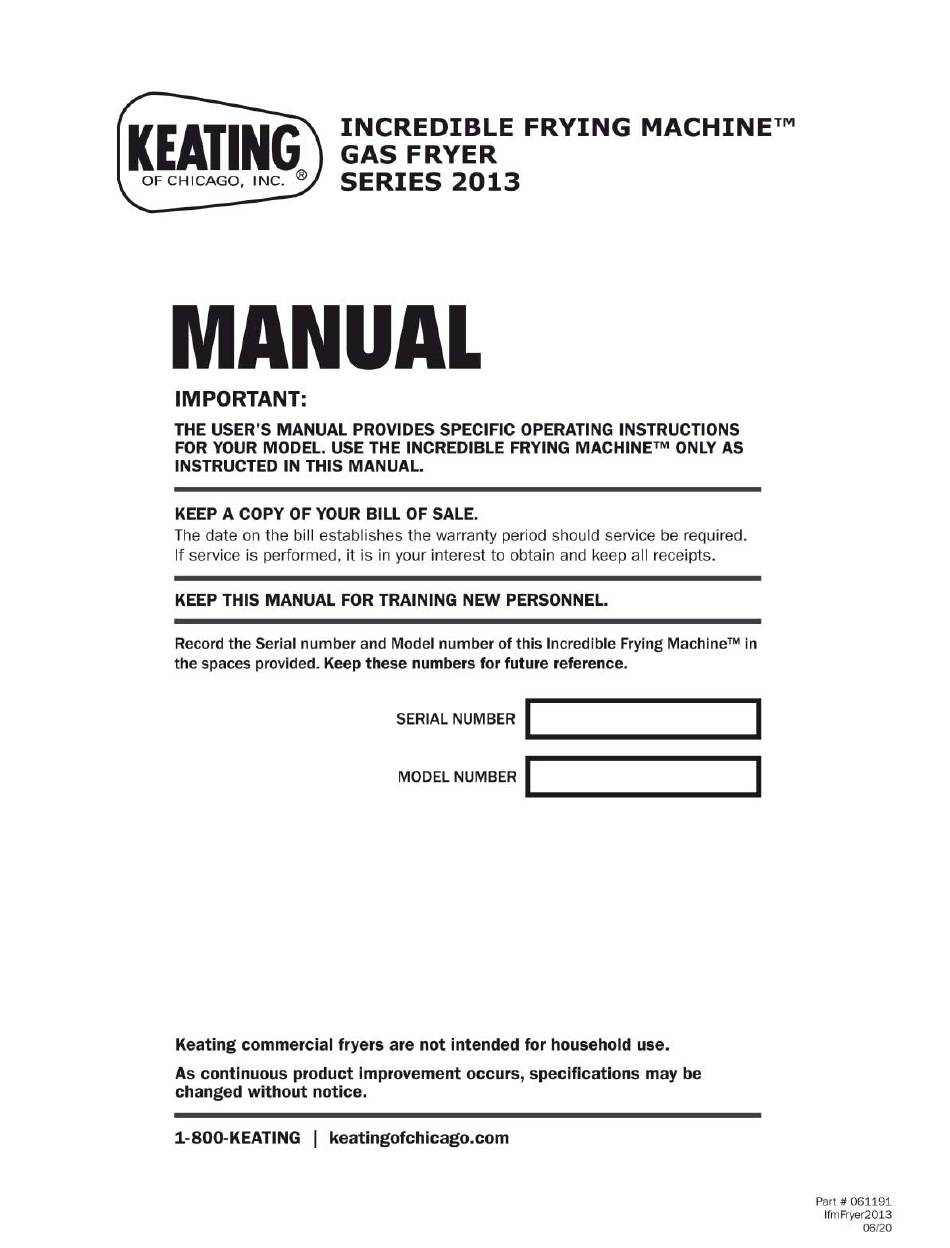

Keating Of Chicago INCREDIBLE FRYING MACHINE 2013 Series Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the INCREDIBLE FRYING MACHINE 2013 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Keating Of Chicago INCREDIBLE FRYING MACHINE 2013 Series

Summary of Contents for Keating Of Chicago INCREDIBLE FRYING MACHINE 2013 Series

  • Page 2 PURCHASER SHOULD POST IN A PROMINENT LOCATION INSTRUCTIONS TO BE FOLLOWED IN THE EVENT THE USER SMELLS GAS. THIS INFORMATION SHALL BE OBTAINED BY CON- SULTING THE LOCAL GAS SUPPLIER. WARNING Burns Shock Improper installation, adjustment, alteration, service or maintenance can cause property damage, injury or death.

  • Page 3: Table Of Contents

    INCREDIBLE FRYING MACHINE™ - SERIES 2013  TABLE OF CONTENTS Digital Timer ..............7 Important Safety Instructions ..........i Draining ................8 INTRODUCTION .............. 1 INSTALLATION Cleaning and Boil-Out ............8 Damage During Shipment ..........1 PREVENTATIVE MAINTENANCE Standard Features ............2 Warranty Repairs ............

  • Page 4: Standard Features

    Keating’s Incredible Frying Machine® (IFM) is de- STANDARD ACCESSORIES signed to give maximum production effi ciency, deliver- • Keating Klenzer Sample ing high quality food products. The following design • Drain clean out rod features are incorporated in Keating’s Incredible Frying Machine®...
  • Page 5 INCREDIBLE FRYING MACHINE™ - SERIES 2013 • Keating fryers are designed to operate on the • NEVER introduce objects or liquids into fryer, while gas fuel specified on the serial plate and must not operational, which are not designed or made for be operated with another gas fuel.

  • Page 6: First Steps

     Fryer must also be restrained to FIRST STEPS NOTICE prevent tipping when installed so that hot liquid splashing is NATIONAL CODE REQUIREMENT avoided. The installation must conform with local codes, or in 2. The restraint means must the absence of local codes, with the National Fuel be attached to the rear of the Gas code, ANSI Z223.1 or the Natural gas Installation Keating Gas Fryer within 2"...

  • Page 7: Gas Connection

    INCREDIBLE FRYING MACHINE™ - SERIES 2013 GAS PRESSURE TAP Before plugging in the fryer, confi rm the outlet is INSTRUCTIONS FOR USING THE GAS PRESSURE properly polarized and grounded. If the hot and neutral TAP INCLUDED ON FRYER BATTERY WITH COMMON terminals are reversed or the outlet is not properly MANIFOLD MANUFACTURED AFTER 8/19/10 (Part grounded, the burners may not ignite (burner on light...

  • Page 8: Gas Leak Testing

    NOTE: The electrical wiring diagram for the fryer is located on the inside of the fryer door or in the back WATER IN ANY FORM AND HOT OIL DON'T MIX! of this manual. GAS LEAK TESTING OIL EXPANDS WHEN HEATED. THE MAX LEVEL LINE Prior to lighting your fryer: HAS BEEN PROVIDED TO ENSURE OPTIMUM COOKING WHILE ENSURING THE SAFETY OF THE OPERATOR.

  • Page 9: Cooking

    INCREDIBLE FRYING MACHINE™ - SERIES 2013 d. The burner indicating light will be on whenever SHUT DOWN the burners are on. The light goes off when the Turn off main power switch. oil has reached the desired temperature. If the burners do not light immediately, the burner DIGITAL TIMER light will shut off, the blower light will stay on,...

  • Page 10: Draining

    DRAINING When cleaning and boiling out your fryer use Keating Sea Powder and Keating Klenzer to keep your fryer in top condition. Keating Sea Powder dissolves any grease build up - even carbonized grease in fryer ALWAYS SHUT THE FRYER OFF COMPLETELY vessels - one of the leading causes of premature BEFORE DRAINING.

  • Page 11: Preventative Maintenance

    Thermostat knob removed to reveal calibration screws maintenance or cleaning, you are required to contact Keating of Chicago (at 1-800-KEATING) before calling 1. Set thermostat to desired frying temperature. a local service company. 2. Allow thermostat to cycle three times.

  • Page 12: Service

    1. For 18" & 20" IFM Fryers: • bright red/orange with proper mixture - orange “glow” around burner tube. • If the bulb is too loose, the paper will slip through with little or no resistance. A fryer with • too much gas – orange “haze” around burner a thermostat bulb that is too loose will tube (showing incomplete combustion) overshoot.

  • Page 13: Self Help Guide

    INCREDIBLE FRYING MACHINE™ - SERIES 2013  SELF HELP GUIDE A properly adjusted Keating Incredible Frying Machine™, with no load, will cycle “on” approximately every 2-1/2 to 3 minutes. Each cycle will last 15-25 seconds, ensuring that the temperature setting is held within a nar- row band.

  • Page 14: Service Diagnosis

     SERVICE DIAGNOSIS The following diagnosis is only to be used as a guide to qualifi ed service personnel. Keating recommends that you use a qualifi ed & licensed service company. (Equipment still under warranty requires it.) Call 1-800-KEATING if you need assistance in locating a qualifi ed service company. NOTE: To correctly and quickly diagnose the system, the chart below should be followed in sequential order.
  • Page 15 INCREDIBLE FRYING MACHINE™ - SERIES 2013 PROBLEM PROBABLE CAUSE SOLUTION Delayed ignition a. Spark electrode gap is incorrect. a. Set proper gap on electrode (See detail on Page 26). b. Gas pressure excessive (incoming or b. Set pressure to serial plate. manifold).

  • Page 16: Ordering Parts

     ORDERING PARTS Parts may be ordered by calling 1-800-KEATING or your local Keating service company. We recommend using genuine Keating Replacement Parts - engineered and manufactured specifi cally to meet exact specifi cations and requirements for Keating equipment. Refer to the Keating Gas Fryer Limited Warranty for complete service and ordering information. The model/serial plate is attached to the inside of the front door.

  • Page 17: Parts List

    INCREDIBLE FRYING MACHINE™ - SERIES 2013  PARTS LIST - IFM GAS FRYER INCREDIBLE FRYING MACHINE™ GAS FRYER FRONT DRAIN - MODEL 2013 FRONT VIEW SIDE VIEW ITEM MODEL DESCRIPTION 14" BLOWER 030862 18" & 20" BLOWER 053726 AIR HOSE 1.25" ID 8" LONG 057996 CLAMP 1/2"...
  • Page 18 14 IFM CONTROL PANEL ASSEMBLY (FRONT DRAIN WITH TIMERS) - MODEL 2013 Control Panel Front Detail Area Back Panel (Front View) Back Panel (Top View) ITEM DESCRIPTION SWITCH TOGGLE SEALED ON-OFF 059141 INDICATING LIGHT CLEAR ROUND 28V 057863 INDICATING LIGHT BLUE ROUND 28V 057862 INDICATING LIGHT AMBER ROUND 28V 056588...
  • Page 19 INCREDIBLE FRYING MACHINE™ - SERIES 2013 14 IFM CONTROL PANEL ASSEMBLY (REAR DRAIN) SAFE & EASY® FILTER - MODEL 2013 Control Panel Front Detail Area Cord Termination Detail Back Panel (Front View) Back Panel (Top View) ITEM DESCRIPTION SWITCH TOGGLE SEALED ON-OFF 059141 INDICATING LIGHT CLEAR ROUND 28V 057863...
  • Page 20 18 IFM CONTROL PANEL ASSEMBLY (FRONT DRAIN) DUAL POINT SPARK IGNITION - MODEL 2013 Control Panel Front Detail Area Cord Termination Detail ITEM DESCRIPTION SWITCH TOGGLE SEALED ON-OFF 059141 INDICATING LIGHT CLEAR ROUND 28V 057863 INDICATING LIGHT BLUE ROUND 28V 057862 INDICATING LIGHT AMBER ROUND 28V 056588...
  • Page 21 INCREDIBLE FRYING MACHINE™ - SERIES 2013 18 IFM CONTROL PANEL ASSEMBLY (REAR DRAIN) SAFE & EASY® FILTER - MODEL 2013 Control Panel Front Detail Area Cord Termination Detail ITEM DESCRIPTION SWITCH TOGGLE SEALED ON-OFF 059141 INDICATING LIGHT CLEAR ROUND 28V 057863 INDICATING LIGHT BLUE ROUND 28V 057862...
  • Page 22 IFM BURNER ASSEMBLY - MODEL 2013 0.56 Critical Dimensions for Proper Spark Ignitor Gap: 0.125±0.015 SPARK GAP 0.44 SPARK IGNITION ELECTRODE BURNER ORIFICE 90° ORIFICE HOLDER ITEM MODEL DESCRIPTION 14" BURNER REPLACEMENT KIT 061128 18" & 20" BURNER REPLACEMENT KIT 061129 SPARK ELECTRODE REPLACEMENT KIT NATURAL GAS...
  • Page 23 INCREDIBLE FRYING MACHINE™ - SERIES 2013 BASKET LIFT POWER SUPPLY BOX & BASKET LIFT ASSEMBLY (not shown to scale) Figure 15 Figure 14 Basket Lift Power Supply Box Basket Lift Assembly Top View Side View Housing Top View Bottom View NOTES: 1.

  • Page 24: Wiring Diagrams

     WIRING DIAGRAMS SINGLE BASKET LIFT POWER SUPPLY BOX WIRE COLOR CODES: COMPONENT CODES: - BLACK ACTUATOR BRIDGE RECTIFIER - BROWN RELAY 24VAC B/R - BLACK /RED TRANSFORMER (100VA) - BLUE NOTES: - GREEN - ORANGE 1. Wire Material: See wires specifi cation. - RED WH - WHITE 2.
  • Page 25 INCREDIBLE FRYING MACHINE™ - SERIES 2013 14 IFM FRONT DRAIN UNIT - MODEL 2013 1-800-KEATING...
  • Page 26 14 IFM REAR DRAIN UNIT - MODEL 2013 keatingofchicago.com...
  • Page 27 INCREDIBLE FRYING MACHINE™ - SERIES 2013 14 IFM REAR DRAIN SAFE & EASY® with BASKET LIFT - MODEL 2013 1-800-KEATING...
  • Page 28 18 & 20 IFM FRONT DRAIN UNITS with DUAL POINT SPARK MODULE - MODEL 2013 keatingofchicago.com...
  • Page 29 INCREDIBLE FRYING MACHINE™ - SERIES 2013 18 & 20 IFM REAR DRAIN SAFE & EASY®FILTER with DUAL POINT SPARK MODULE - MODEL 2013 1-800-KEATING...
  • Page 31 CUSTOM PASTA FILTER SYSTEM TOP-SIDE COOKER HOTPLATE I HAVE READ THE INSTALLATION AND OPERATING INSTRUCTIONS. SIGNED: DATE: KEATING OF CHICAGO, INC. 1-800-KEATING 8901 West 50th Street PHONE: 708-246-3000 McCook, IL 60525-6001 FAX: 708-246-3100 Serving Those Who Serve the Very Best...
