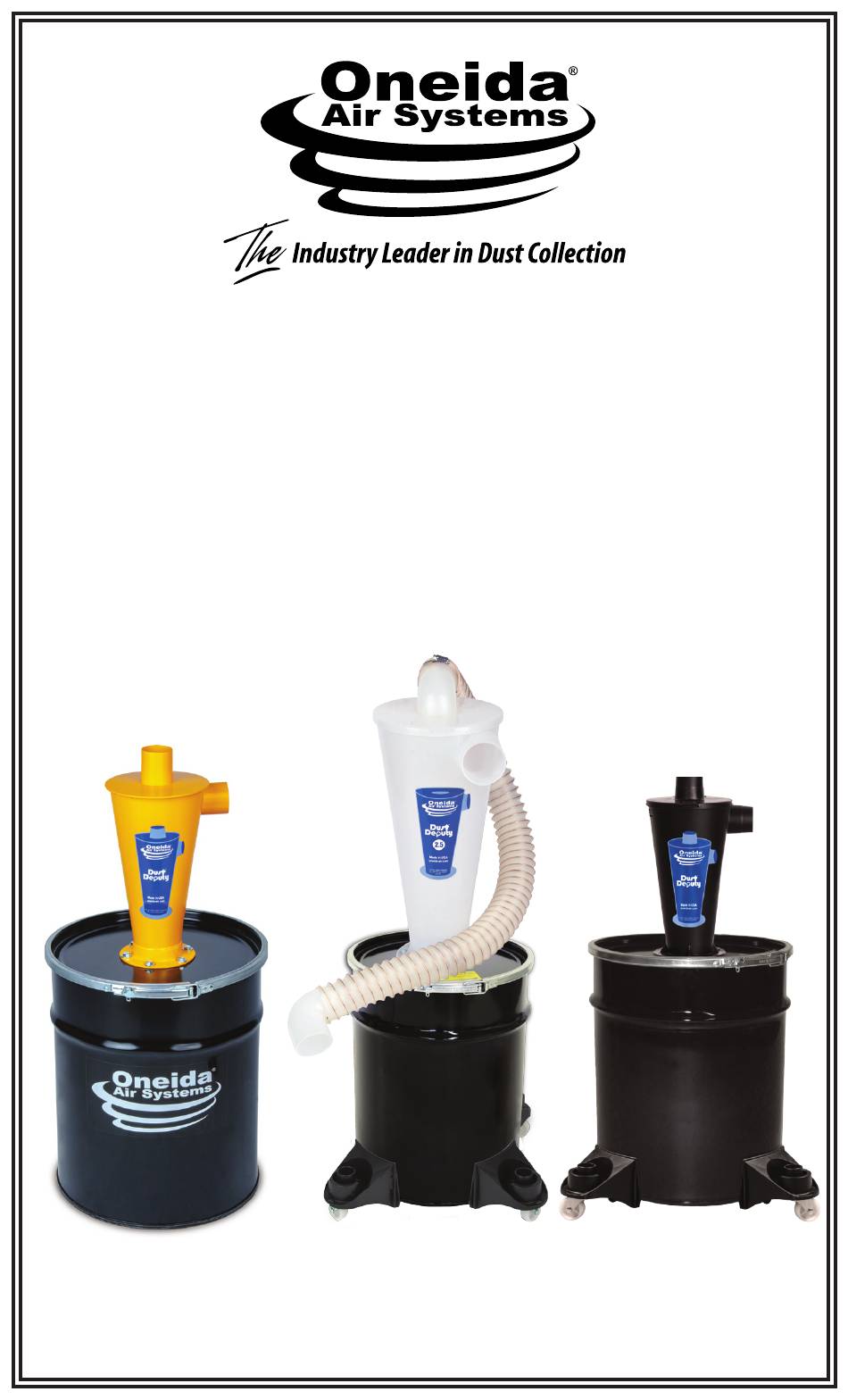

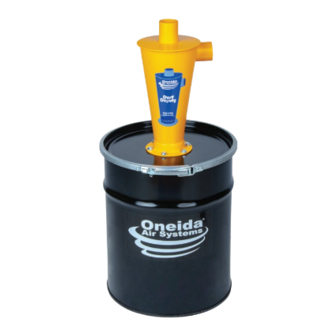

- Page 1 Heavy-Duty Dust Deputy Dust Deputy 2.5 Dust Deputy SD 10 Gallon Deluxe # AXD000002 # AXD000010SD # AXD250010 Patents: www.oneida-air.com/patents Appearance may vary slightly Rev: D 20240112LL Doc. # ZBM000050...
-
Page 2: System Start-Up Information
8. Can be used for collecting non-flammable liquids. 9. Dispose of waste in a FIRE SAFE AREA. Some duStS aRe highly flammable oR Ÿ exPloSive. leaRn/ know what you aRe dealing with. follow all local, State, fedeRal & nfPa codeS and guidelineS. Oneida Air Systems... - Page 3 Heavy-Duty Dust Deputy Dimensions Nominal dimensions shown. Dimensions subject to slight variations in manufacturing. 6-1/2" 165 mm Straight Inlet 13-11/16" and Outlet 348 mm 2" O.D. 1-7/8" I.D. 51 mm O.D. 48 mm I.D. 10" 8-1/4" 254 mm 210 mm 31-3/16"...
- Page 4 171 mm 13-1/4" 2" O.D. 337 mm 1-7/8" I.D. 51 mm O.D. 48 mm I.D. 9-5/8" 244 mm 8" 203 mm 2-1/2" 64 mm 30-15/16" 786 mm 27 -5/16" 693 mm 18-1/4" 464 mm 21-1/2" 547 mm Oneida Air Systems...
- Page 5 Dust Deputy 2.5 Dimensions Nominal dimensions shown. Dimensions subject to slight variations in manufacturing. 2-5/16" I.D. 2-1/2" O.D. 58 mm 64 mm 15-5/8" 2-5/16" I.D. 397 mm 58 mm 8-1/2" 13-3/4" 216 mm 349 mm 7-5/8" 194 mm 33-5/16" 846 mm 31-1/2"...
-
Page 6: System Contents
Note: Due to a variety of factors associated with the molding process, the base of the Dust Deputy 2.5 cyclone may appear warped rather than perfectly flat. This is normal and does not impact performance as long as the cyclone is installed according to these instructions. Oneida Air Systems... - Page 7 System Contents (Continued) Please unpack the parts carefully and confirm you have received each item listed here. oneida-air.com...
- Page 8 Sd (axd000010Sd AHA000004† 2.5" Vacuum Hose Elbow AHA990250† 2" to 1-1/2" Reducer, 2" to 1-1/4" Reducer, and Coupler included only with heavy-duty duSt dePuty (axd000002) AXD200225 2.0" ID to 2.25" OD Adapter AXD225225 2.25" ID Connector *Combined inside hardware package (AHX250010).
- Page 9 System Contents (Continued) Please unpack the parts carefully and confirm you have received each item listed here. oneida-air.com...
- Page 10 Gasket (B) and align all the holes. Secure Cyclone, Gasket, and Lid together using six Bolts (C1), six Washers (C2), and six Whiz-Lock Nuts (C3) as shown in [FIG. 1]. Note: Thoroughly tighten hardware to eliminate air leaks. FIG. 1 Oneida Air Systems...
- Page 11 Assembly Instructions (Continued) Insert the Casters (H) into the Caster Mounts (G). Apply pressure and twisting motion until Wheels snap into place [FIG. 2]. FIG. 2 Ensure that the surfaces on the Drum (E) and Caster Mounts (G) are clean and dry. Remove a square from the Double Sided Tape (F) and apply to the Caster Mount in the recessed location at each corner [FIG 3].
- Page 12 Flip the Drum (E) upside down and arrange the Caster assemblies evenly around the bottom edge [FIG. 4]. Note: We recommend arranging the Caster Assemblies at 90° increments from each other for the most stable setup. 90° FIG. 4 Oneida Air Systems...
- Page 13 Assembly Instructions (Continued) The Caster assemblies must be adhered to the Drum (E) with a single smooth motion so that the bottom edge of the Bucket fits within the recessed channel of the Caster Mount (G)[FIG. 5a]. Remove the backing paper from the Double Sided Tape (F) on the Caster assembly.
- Page 14 Attach the D ring (I2) to the vacuum with the Sheet Metal Screw. (I1) Then loop the Lanyard (I5) around the slot on the Caster Mount and through itself. Finally, clip the Lanyard to the D ring [FIG 6b] [FIG 6c]. FIG. 6a Oneida Air Systems...
- Page 15 Assembly Instructions (Continued) FIG. 6b FIG. 6c oneida-air.com...
- Page 16 Assembly Instructions (Continued) Put Cyclone and Lid assembly (A, D) on top of your Drum (E). Close the Drum using the provided clamp and seal it airtight [FIG. 7]. FIG. 7 Oneida Air Systems...
- Page 17 Dust Deputy 2.5 (AXD250010) proceed to step 9. If you purchased the Heavy-Duty Dust Deputy (AXD000002), additional adapters are provided to help connect to the Hose (J) and the Elbow (K) . Slide the Hose Adapter (O) over the outlet (top port) of the Cyclone (A).
- Page 18 Assembly Instructions (Continued) If you purchased the Heavy-Duty Dust Deputy (AXD000002), attach one Elbow (K) to the Hose Coupler (P) [FIG. 9a]. If you purchased the Dust Deputy SD (AXD000010SD) or the Dust Deputy 2.5 (AXD250010) attach one Elbow (K) to the outlet (top port) of the Cyclone (A).
- Page 19 Assembly Instructions (Continued) To wet/dry vacuum To Tool Dust Deputy SD (AXD000010SD) FIG. 9b To wet/dry vacuum To Tool Dust Deputy 2.5 (AXD250010) FIG. 9c oneida-air.com...
- Page 20 Note: Any air leak in the Lid (D) or Drum (E) will affect separation performance. Make sure to check your dust drum frequently so you do not overfill it. Leak Point (Outlet) Leak Point (Inlet) Leak Point (Cyclone/lid) Leak Point (Drum/lid) FIG. 10 Oneida Air Systems...
- Page 21 Optional Grounding Instructions Recommended for fine dust situations or electronically Ÿ sensitive applications. The Static Dissipative Cyclone (A) and the Elbows (N) are molded from an industrial static conductive resin, which preserves the grounding pathway for electronically sensitive applications and does not require the Metal Tape (K). Install the Metal Tape to the Elbow (O) [FIG 11a] and the Hose Adapters (P) [FIG 11b] so that all connections are attached by a continuous, conductive path.
- Page 22 Install the Metal Tape (K) to the Cyclone (A) so that the inlet, outlet, and flange are attached by a continuous, conductive path. The tape should wrap 1/4" around the edge of each opening [FIG 12]. FIG. 12 Oneida Air Systems...
- Page 23 Optional Grounding Instructions (Continued) For added grounding, attach a self-supplied wire with a ring terminal on one end and a washer tied to the other end when installing one of the bolts in Step 5 on Page 10. The wire must be long enough for the washer to lie on the floor [FIG 13].
-
Page 24: Troubleshooting
2. Use a hose clamp. 3. Wrap the inlet and outlet of the Dust Deputy with a layer of electrical tape to increase the friction fit. 4. Secure hose with a sheet metal screw. Oneida Air Systems... - Page 25 does the 2.5 have the same flange pattern as the original dust deputy? Yes! Both the original Dust Deputy cyclone and the new Dust Deputy 2.5 cyclone share the same bottom flange pattern. This makes upgrading existing cyclone installations quick and easy! You can find printable template files for download in the Documents tab found on the website of our product pages.
- Page 26 1" to 3" in diameter. Connecting 4" tools to the Dust Deputy cyclone's 2" ports will result in significant losses in airflow and suction power. Larger ports (4" and larger) will instead require one of our Super Dust Deputy cyclones. Oneida Air Systems...
- Page 27 2.5? Rather than worrying about what specs your vacuum needs (e.g. air watts, cfm, static lift, etc.), we at Oneida Air Systems have a much simpler approach - simply match the size of your vacuum's inlet to the size of the Dust Deputy cyclone's ports.
- Page 28 There are some outlets like Peachtree Woodworking that may have adapters that can better fit your tool, and there are also plumbing- style adapters at most hardware stores (look for Fernco) that might also work and be cheaper/more readily available. Oneida Air Systems...
- Page 29 Accessories 2" x 10' wire Reinforced vacuum hose #AXD400000 • Crush-resistant, flexible hose with a smooth- wall inner lining that minimize air resistance. 2.5" turnkey hose clamp #ACB360000 • Secures hose fitting in place to eliminate disconnects when pulling or flexing the hose. • Fits hoses and port sizes from 2"...
- Page 30 Tapered on one end for easy friction-fit hose connections. viper vacuum Scraper Paint Removal tool #AXS001160B • Ergonomic hand scraping tool with high- textured grip and reversible, tungsten-carbide blade. • Hollow handle fits 1-1/4" to 1-1/2" vacuum hoses. Oneida Air Systems...
-
Page 31: Warranty Information
– activate online at oneida-air.com/warranty Oneida Air Systems®, Inc. (OAS) warrants the Dust Deputy for a period of 1 year, to the original purchaser from the date of purchase, unless otherwise specified. Items not manufactured by Oneida Air Systems are limited to their own manufacturer’s warranties. All electrical items such as magnetic starters, remotes, sensors, pumps, bin sensors, bag grippers, etc. - Page 32 Regardless of where you purchased your Oneida Air Systems product, if you have any questions or issues with missing / damaged parts, please call Oneida Air Systems first to let us help resolve your problem. We fully stand behind the quality of our products and place the utmost value on the satisfaction of our customers.
