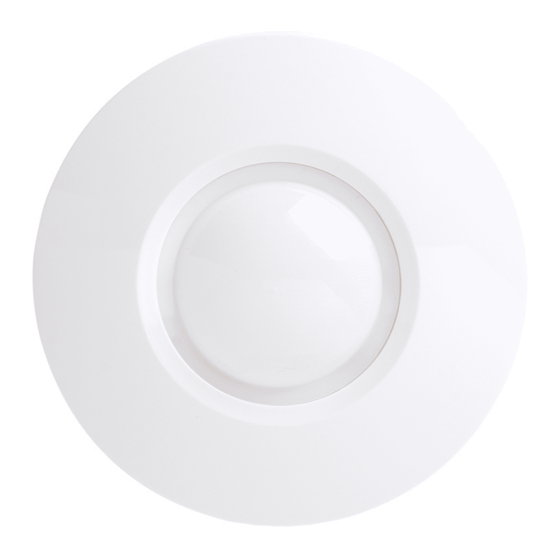

Texecom CAPTURE CD Manual

G2 motion detectors
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
CAPTURE® P15, Q20, D20, CQ, CD, LR50
G2 Motion Detectors
INS878EN-9

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CAPTURE CD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Texecom CAPTURE CD

Summary of Contents for Texecom CAPTURE CD

  • Page 1 CAPTURE® P15, Q20, D20, CQ, CD, LR50 G2 Motion Detectors INS878EN-9...
  • Page 2 • PCR01730 changes to D20 coverage pattern diagrams for Kiwa approvals. • Changed D15 to D20 throughout Changed coverage diagram for D20 (but not PET) • Changed Pet mode coverage and updated all drawings to reference D20 instead of D15 •...

  • Page 3: Table Of Contents

    2.0 Variants ..........................2.1 CAPTURE P15 ........................2.2 CAPTURE Q20 ........................2.3 CAPTURE D20 ........................2.4 CAPTURE CQ ........................2.5 CAPTURE CD ........................2.6 CAPTURE LR50 ........................3.0 Accessories ..........................3.1 Branding ..........................3.2 Optional wall or ceiling mount brackets ................

  • Page 4: Quick Installation

    1.0 Quick installation 1.1 Opening the device The devices are supplied in the unlocked position. If locked. Use a flat bladed terminal driver and turn the locking mechanism ¼ turn anti- clockwise. Slide the front down and towards you to remove. For ceiling mount devices remove the facia by turning it anti-clockwise, and then unlock as above.
  • Page 5 INS878EN-9 5/71...
  • Page 6 Ceiling facia removal INS878EN-9 6/71...
  • Page 7 INS878EN-9 7/71...

  • Page 8: Mounting And Cable Entry

    1.2 Mounting and cable entry Location Ensure you have the correct device for the intended application, and that it is sited correctly in the desired location. The field of view should be free from obstacles and any potential false alert causes. Devices should be mounted on stable internal surfaces and are NOT suitable for use externally.
  • Page 9 Ensure the devices field of view is not obstructed INS878EN-9 9/71...
  • Page 10 Install on a flat stable surface only INS878EN-9 10/71...
  • Page 11 Ensure surrounding structures are stable INS878EN-9 11/71...
  • Page 12 For internal use only Screws & Fixings A minimum of 2 opposing fixing holes should be used to ensure maximum stability. When corner mounting care should be taken to ensure the chassis is not twisted, if the corner is uneven then two fixings on the same side would be acceptable. Where removal from mounting detection is required you must ensure that the tamper fixing is opposite to at least one of the corner or wall fixings.
  • Page 13 passes around the post as shown. This helps avoid cable snagging when refitting the front chassis. NOTE: Do not use the screw fixing points to route cable. Corner mount Wall, ceiling & flat surface mount INS878EN-9 13/71...
  • Page 14 Cable routing INS878EN-9 14/71...
  • Page 15 INS878EN-9 15/71...
  • Page 16 Terminal block tilt INS878EN-9 16/71...
  • Page 17 INS878EN-9 17/71...

  • Page 18: Wiring And Eol Selection

    Premier Elite control panel. For other wiring types, please refer to the manufacturer’s instructions for your equipment. The device is defaulted to the Texecom EOL values. Use a terminal driver to move the switch to any other position.
  • Page 19 INS878EN-9 19/71...
  • Page 20 EOL wiring to a Premier Elite 24 & 64-W INS878EN-9 20/71...
  • Page 21 EOL wiring to a Premier Elite 48 & 640 INS878EN-9 21/71...
  • Page 22 RLED terminal The RLED (Remote LED) terminal can be used to control the LED for walk testing INS878EN-9 22/71...

  • Page 23: Mode Selection

    To use the RLED feature put switch 1 in the up position which will disable the LED. When an output is triggered 0V is applied to the RLED terminal which will enable the LED. On a Texecom control panel the output can be programmed as either Engineer Logon or Walktest.
  • Page 24 Pet Mode (P15, Q20 & D20) Non-Compliant When using Pet mode, switch 2 and the lens obscuration slider should both be placed in the UP position. P15 10mtr @ 90° up to 35kg pet immunity (The product is compliant with EN 50131-2-2 or EN 50131-2-4 and INCERT when in the G2 setting only.) Q20 12mtr @ 90°...
  • Page 25 Note: Never use CloakWise with PET mode. CloakWise™ D20 & CD CloakWise is a proprietary detection algorithm, unique to Texecom, that can distinguish the presence of an intruder even if the unauthorised person attempts to mask or ‘cloak’ their presence. Utilising advanced signal processing techniques to both microwave and PIR channels, the CloakWise technology can recognise cloaking attempts and detect accordingly.
  • Page 26 Low ceiling mount CQ & CD only Low mode lowers the sensitivity of the device and provides greater false alarm immunity. Thorough walk testing across the entire protected area should be carried out to ensure catch performance is as expected. Note: Never use CloakWise with LOW mode.
  • Page 27 CQ & CD Slider Leave in the default position INS878EN-9 27/71...
  • Page 28 Do not use LR50 only MID/MAX INS878EN-9 28/71...

  • Page 29: Testing, Commissioning & Led Indications

    Moving the switch to the MID position will reduce the detection range by approximately half. LR50 Slider Should be left in the default position, moving it will block the creep zones. If this position is selected, the device should be thoroughly walk tested. 1.5 Testing, commissioning &...
  • Page 30 D20 Microwave Coverage CD Microwave Coverage INS878EN-9 30/71...

  • Page 31: Variants

    Resistance & voltage readings Resistance and voltage readings should be recorded at the time of installation. Voltage readings should be taken at the device Resistance reading should be taken at the CIE or ACE where the circuit is terminated. 2.0 Variants 2.1 CAPTURE P15 INS878EN-9 31/71...
  • Page 32 INS878EN-9 32/71...
  • Page 33 G2 Coverage INS878EN-9 33/71...
  • Page 34 Pet coverage INS878EN-9 34/71...
  • Page 35 Pet mode (The product is compliant with EN 50131-2-2 or EN 50131-2-4 and INCERT when in the G2 setting only.) INS878EN-9 35/71...
  • Page 36 INS878EN-9 36/71...

  • Page 37: Capture Q20

    2.2 CAPTURE Q20 INS878EN-9 37/71...
  • Page 38 INS878EN-9 38/71...
  • Page 39 G2 Coverage INS878EN-9 39/71...
  • Page 40 INS878EN-9 40/71...
  • Page 41 Pet coverage Pet mode (The product is compliant with EN 50131-2-2 or EN 50131-2-4 and INCERT when in the G2 setting only.) INS878EN-9 41/71...
  • Page 42 INS878EN-9 42/71...

  • Page 43: Capture D20

    2.3 CAPTURE D20 INS878EN-9 43/71...
  • Page 44 INS878EN-9 44/71...
  • Page 45 G2 coverage INS878EN-9 45/71...
  • Page 46 INS878EN-9 46/71...
  • Page 47 INS878EN-9 47/71...
  • Page 48 Pet coverage Pet mode (The product is compliant with EN 50131-2-2 or EN 50131-2-4 and INCERT when in the G2 setting only.) INS878EN-9 48/71...
  • Page 49 INS878EN-9 49/71...
  • Page 50 INS878EN-9 50/71...

  • Page 51: Capture Cq

    2.4 CAPTURE CQ INS878EN-9 51/71...
  • Page 52 INS878EN-9 52/71...
  • Page 53 INS878EN-9 53/71...

  • Page 54: Capture Cd

    DO NOT USE 2.5 CAPTURE CD INS878EN-9 54/71...
  • Page 55 INS878EN-9 55/71...
  • Page 56 INS878EN-9 56/71...
  • Page 57 INS878EN-9 57/71...

  • Page 58: Capture Lr50

    Microwave DO NOT USE 2.6 CAPTURE LR50 The LR50 is not approved INCERT INS878EN-9 58/71...
  • Page 59 INS878EN-9 59/71...

  • Page 60: Accessories

    3.0 Accessories 3.1 Branding Branding is available for wall mount devices from our website CLICK HERE consists of a printed insert and a clear cover which fits over the front of the device and holds the insert in place. Note: The cover should be removed before sliding the front of the device off for servicing or adjustment.
  • Page 61 INS878EN-9 61/71...
  • Page 62 INS878EN-9 62/71...
  • Page 63 INS878EN-9 63/71...

  • Page 64: Optional Wall Or Ceiling Mount Brackets

    3.2 Optional wall or ceiling mount brackets Part Numbers Pack of 10 brackets AFU-0004 Screws & Fixings To ensure maximum stability 2 screws should be used for either mounting option. Dependent on the mounting substrate, suitable fixings may be required. The size and type will depend on the choice of fixing screw.
  • Page 65 INS878EN-9 65/71...
  • Page 66 Wall mount installation INS878EN-9 66/71...
  • Page 67 INS878EN-9 67/71...
  • Page 68 INS878EN-9 68/71...

  • Page 69: Specifications

    4.0 Specifications Specification P15, Q20, D20, CQ, CD EN50131-2-2 (P15, Q20, CQ) EN50131-2-4 (D20, Alarm System CD), EN50131-1, PD6662:2017 Grade 2 Class II AKBA0000 (P15) AKCA0000 (Q20) AKDA0000 (D20) Product Type AKFA0000 (CQ) AKGA0000 (CD) AKWA0000 (LR50) Operating 9-15Vdc (12V + - 25%) Voltage Maximum P15, Q20, CQ –...

  • Page 70: Legal Information

    Ceiling Mount: 125mm Diameter, Depth 43mm. 5.0 Legal information 5.1 Supplier Texecom Ltd, Haslingden, Lancashire, BB4 4PW, UK. Made in England 5.2 WEEE Directive 2012/19/EU (WEEE Directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. To recycle, return this product to your local supplier upon the purchase of equivalent new equipment, or dispose of it at designated collection points.

  • Page 71: Maintenance

    Limited lifetime warranty. As the Capture P15, Q20, D20, CQ, CD is not a complete alarm system, but only a part thereof, Texecom cannot accept responsibility or liability for any damages whatsoever based on a claim that the Capture P15, Q20, D20, CQ, CD failed to function correctly.
