Texecom Prestige AMDT Plus Installation Instructions

1

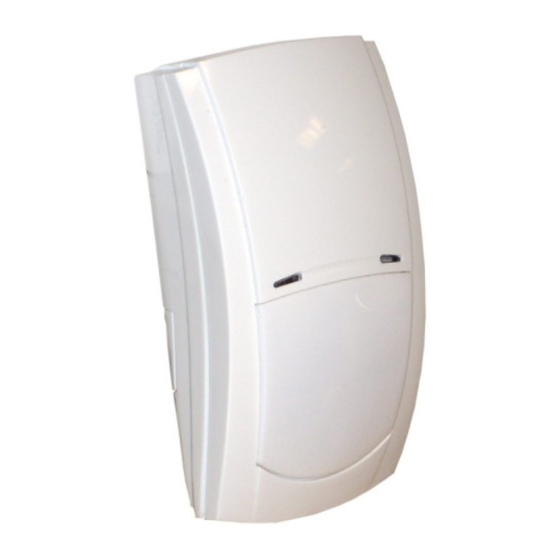

The Prestige AMDT Plus is a grade 3 anti-masking digital dual technology detector.
Grade 3 Anti-Masking Dual Technology The combination of active IR and microwave proximity obstruction detection provides
unparalleled anti-masking reliability. Rear tamper protection, fault monitoring and Triple
End-Of-Line (T-EOL) signalling provide compliance with EN 50131-2-4.
I N S TA L L AT I O N I N S T R U C T I O N S
Outstanding features include:
• 15m Volumetric PIR and Microwave Detection
• Active IR Anti-Masking
• Triple-End-Of-Line (T-EOL) Signalling
• Digital Microprocessor Technology
• Wall Tamper Detection
• Remote Self-Test Feature
www.texe.com
Ask your distributor today for the Texecom full colour Product Guide.
QUALITY ASSURANCE 4
MADE IN
ENGLAND
C e r t i f i c a t e N u m b e r : F M 3 5 2 8 5
WARRANTY
10 year replacement warranty.
The Prestige AMDT Plus is designed to detect the movement of an intruder and
activate an alarm control panel. As the Prestige AMDT Plus is not a complete
alarm system, but only a part thereof, Texecom cannot accept responsibility or
liability for any damages whatsoever based on a claim that the Prestige AMDT
Plus failed to function correctly.
Due to our policy of continuous improvement Texecom reserves the right to change
specification without prior notice. All specifications are measured at 20ºC (68ºF).
© 2006 Texecom Ltd. Document Ref: PAMDT+/EU/1.0
The Prestige AMDT Plus is protected by UK & International Registered Designs.
Registered Design No's: 3004997, 3004260 & 3004261. Prestige is a Trademark of Texecom Ltd.
DECLARATION OF CONFORMITY 7
The Prestige AMDT Plus is designed to be connected to a single zone on control
panels which feature Triple End-Of-Line (T-EOL) compatibility. Alarm, Tamper, Fault
and Masking are signalled on one pair of wires. To aid installation the resistor values
This declaration is valid for the following product:
can be selected via the T-EOL plug-on board. All the connections are normally closed.
Device Type: Dual Technology Detector - DTD007-x
Masking is signalled by the alarm and fault relays opening simultaneously.
Product Name: Prestige DT/AMDT Plus
Equipment Classification: Short Range Device, Class 2
Notified Body Number: 0891
This is to confirm that this product meets all essential protection requirements relating to:
R&TTE Directive: 1999/05/EC
The assessment of this product has been based on the following standards:
EN 55022 : 1998 Emission Standard for Information Technology Equipment.
EN 50130-4 : 1996 Immunity Standard for Fire Intruder & Social Alarm Systems.
BS EN 60950-1 : 2002 Low Voltage Devices – Electrical Safety
ETSI EN 300 440-1 : 2001 Radio standard for short range devices (1GHz – 40GHz)
ETSI EN 301 489-3 : 2002 EMC standard for short range devices (9kHz – 40GHz)
On behalf of the manufacturer:
Texecom Ltd., 559 Wilbraham Road, Manchester, M21 0AE
This declaration is submitted by:
R J Austen, Managing Director
9th May 2006

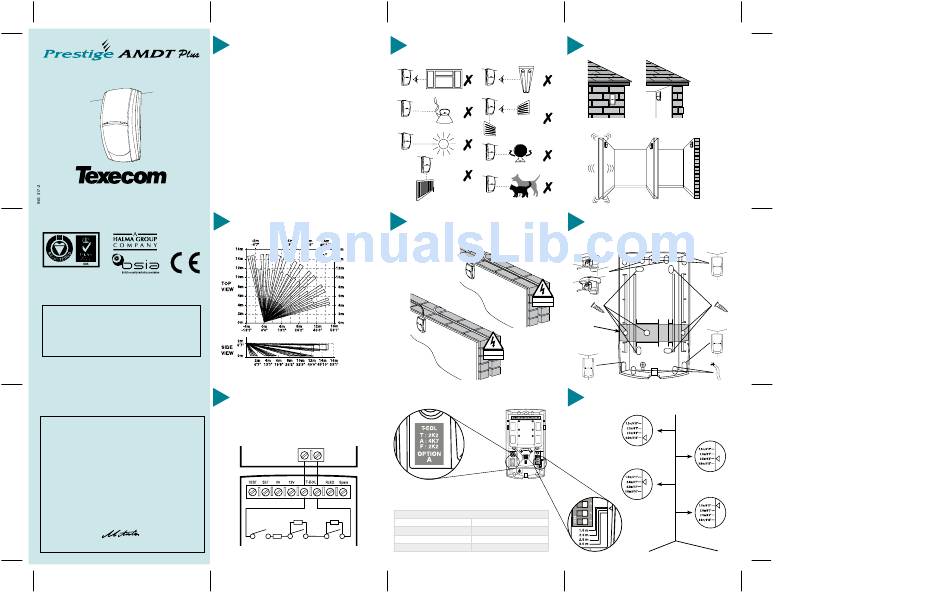

INTRODUCTION
2 CHOOSING A LOCATION
Avoid common false alarm sources
COVERAGE PATTERN 5 WIRING
Volumetric Do not run cable parallel to mains wiring
See Mounting Height Diagram (Section 8)
TRIPLE END-OF-LINE (T-EOL)
Use the Option A T-EOL board with Texecom's Premier range of
control panels.
EOL ZONE
on control panel
PANEL
PIR
A range of other T-EOL values are available separately.
For use with the following Premier software versions (or above)
A
F
Premier 24: V7
Premier 48: V7
T
Premier 88/168: V7
TAMPER ALARM FAULT
Premier 640: V7
Selectable T-EOL Resistors
3 MOUNTING
For indoor use only
✗
Mount on a stable surface
✗
6 DETECTOR KNOCKOUTS
Rear tamper pull-out needs to be secured to
the mounting surface to meet Grade 3
requirements of TS50131-2-4
✗
230V
110V
Rear tamper
pull-out
✓
Fix both the detector
AND the rear tamper
pull-out to the wall.
230V
110V
8 MOUNTING HEIGHT & SETTINGS
Premier 412/816: V10
Premier 832: V3
Keypads: V7
Expanders: V7
✓
✓
✓
3.0m/9'10"
2.5m/8'2"
2.0m/6'7"
1.5m/4'11"
