Texecom Premier Elite Impaq Plus-W Instruction Manual

Instruction Manual

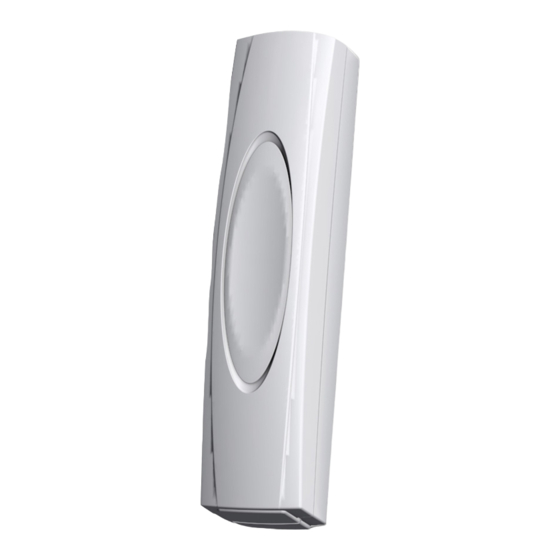

Premier Elite Impaq Plus-W
INTRODUCTION
• For wireless connectivity, detailed programming and system set-up
instructions please refer to the compatible RICOCHET™ technology
enabled Premier wireless expander instructions.
• Featuring RICOCHET™ wireless technology the Impaq Plus-W is
designed for professional security installations.

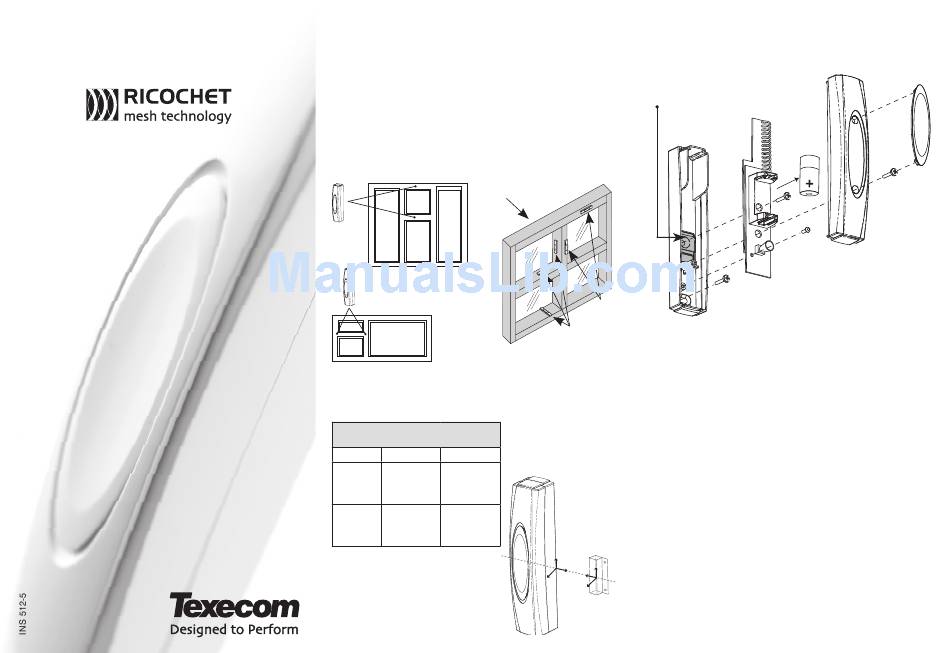

MOUNTING POSITIONS
Fig.1 Fig.2
Expected
Impact
Direction
MOUNTING
WITH MAGNET
Magnets can be installed either side
of the unit.
Material Approach Removal
Non-
X = 18mm X = 20mm
Ferrous
Y = 10mm Y = 12mm
+/- 4mm
Z = 22mm Z = 24mm
Ferrous
X = 8mm X = 9mm
+/- 3mm
Y = 8mm Y = 9mm
Z = 16mm Z = 18mm
ASSEMBLY
For rear tamper - fix both the detector AND the rear tamper insert to
the mounting surface. Activation of rear tamper will damage product.
Rear Tamper Insert
Most
Sensitive
Less
Sensitive
SENSITIVITY SET-UP
The Impaq Plus-W can be installed in any orientation but for maximum
sensitivity position as shown in Fig.2. Once mounted the sensitivity
should be carefully calibrated using range jumper and the sensitivity
adjustment.
1. When the unit is first powered the LED will light green for
approximately 10 seconds while the unit self-calibrates.
2. Enable walktest LED functionality using wireless monitor/Wintex. To
Fig.3
set the sensitivity turn the sensitivity adjustment to minimum
(anti-clockwise) and firmly tap the middle of the area to be protected. If
the LED lights red or orange, remove the "Range Select" jumper to
select the "low sensitivity" range. Gradually increase the sensitivity by
turning the sensitivity adjustment clockwise. After each adjustment,
Y
firmly tap the area and observe the LED colour. A red LED indicates that
Y
X
the sensitivity is correct. If the LED turns green, the sensitivity is too low
X
Z
and needs increasing. If however the LED turns orange, the sensitivity
Z
is too high and needs reducing.
3. Replace the cover and tighten the fixing screw. Press the cover into
the lid and confirm the desired impact response.
