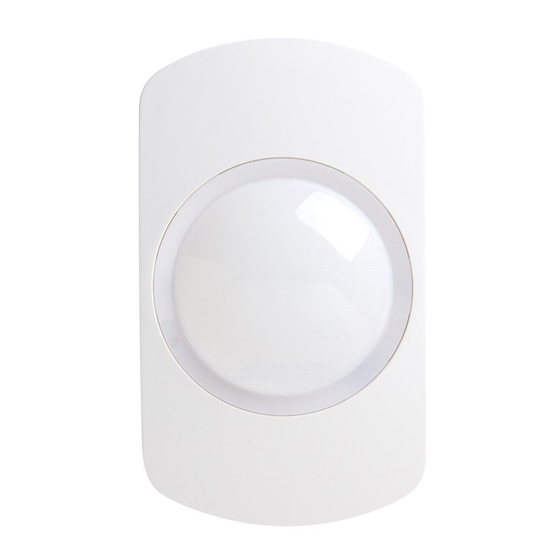

Texecom CAPTURE D20-W Manual

Texecom CAPTURE D20-W Manual

G2 wireless motion detectors
Hide thumbs Also See for CAPTURE D20-W:

Advertisement

CAPTURE® P15-W, Q20-W, D20-W, CQ-W,
CD-W
G2 Wireless Motion Detectors
INS879EN-6

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CAPTURE D20-W and is the answer not in the manual?

Questions and answers

Summary of Contents for Texecom CAPTURE D20-W

  • Page 1 CAPTURE® P15-W, Q20-W, D20-W, CQ-W, CD-W G2 Wireless Motion Detectors INS879EN-6...
  • Page 2 01-01-1970 • PCR1473 - Kiwa changes to descriptions of pet modes. Details added confirming non compliance with relevant standards. • PCR01383 Updated walk test diagrams following request from Kiwa certification engineers. • PCR01383 changes to pet coverage patterns and compliance statement for pet. •...
  • Page 3: Table Of Contents

    1.4 Closing the device ......................1.5 Testing commissioning and LED indications ..............2.0 Variants ..........................2.1 CAPTURE P15-W ........................ 2.2 CAPTURE Q20-W ........................ 2.3 CAPTURE D20-W ........................ 2.4 CAPTURE CQ-W ........................2.5 CAPTURE CD-W ........................3.0 Accessories ..........................3.1 Branding ..........................
  • Page 4: Quick Installation

    1.0 Quick installation 1.1 Opening the device The devices are supplied in the unlocked position. If locked; Use a flat bladed terminal driver and turn the locking mechanism ¼ turn anti-clockwise. Slide the front down and towards you to remove. For ceiling mount devices remove the facia by turning it anti-clockwise, and then unlock as above.
  • Page 5 INS879EN-6 5/71...
  • Page 6 Ceiling facia removal INS879EN-6 6/71...
  • Page 7 INS879EN-6 7/71...
  • Page 8: Mounting & Learning

    1.2 Mounting & Learning Location Ensure you have the correct device for the intended application, and that it is sited correctly in the desired location. The field of view should be free from obstacles and any potential false alert causes. Devices should be mounted on stable internal surfaces and are NOT suitable for use externally.
  • Page 9 INS879EN-6 9/71...
  • Page 10 Ensure the devices field of view is not obstructed INS879EN-6 10/71...
  • Page 11 Install on a flat stable surface only INS879EN-6 11/71...
  • Page 12 Ensure surrounding structures are stable INS879EN-6 12/71...
  • Page 13 For internal use only Screws & Fixings A minimum of 2 opposing fixing holes should be used to ensure maximum stability. When corner mounting care should be taken to ensure the chassis is not twisted, if the corner is uneven then two fixings on the same side would be acceptable. Where removal from mounting detection is required you must ensure that the tamper fixing is opposite to at least one of the corner or wall fixings.
  • Page 14 Learning The device should be learned before placing in its final location. To learn the device to the system: Select an empty zone slot for the device and put the system into learn mode. To power up insert the battery. The LED will flash pink while it communicates to the receiver.
  • Page 15 Wall, ceiling & flat surface mount INS879EN-6 15/71...
  • Page 16: Mode Selection

    1.3 Mode selection G2 all models (Q20-W shown) This is the default state for optimum catch performance and false activation immunity. Switch 1 should be to the left and the lens obscuration slider should be in the down position. P15-W 15m @ 90° compliant to EN50131-2-2, INCERT and PD6662 Q20-W 20m @ 90°...
  • Page 17 Pet Mode (P15-W, Q20-W & D20-W) NON-COMPLIANT When using Pet mode, switch 1 should be to the right and the lens obscuration slider should both be placed in the UP position. P15-W 10mtr @ 90° up to 35kg pet immunity ( not compliant with INCERT EN50131-2-2 and EN50131-2-4 ) Q20-W 12mtr @ 90°...
  • Page 18 INCERT EN50131-2-2 and EN50131-2-4 ) D20-W 12mtr @ 85° up to 20Kg pet immunity ( not compliant with INCERT EN50131-2-2 and EN50131-2-4 ) Note: Never use CloakWise with PET mode. NOTE: when pet mode is selected, it will be transmitted to the device within the first 3 minutes of power up.
  • Page 19 CloakWise™ D20-W & CD-W CloakWise is a proprietary detection algorithm, unique to Texecom, that can distinguish the presence of an intruder even if the unauthorised person attempts to mask or ‘cloak’ their presence. Utilising advanced signal processing techniques to both microwave and PIR channels, the CloakWise technology can recognise cloaking attempts and detect accordingly.
  • Page 20 immunity. Thorough walk testing across the entire protected area should be carried out to ensure catch performance is as expected. Note: Never use CloakWise with LOW mode. CQ-W and CD-W Slider Leave in the default position INS879EN-6 20/71...
  • Page 21 Do not use INS879EN-6 21/71...
  • Page 22: Closing The Device

    1.4 Closing the device INS879EN-6 22/71...
  • Page 23 INS879EN-6 23/71...
  • Page 24: Testing Commissioning And Led Indications

    Closing the device LED indications When closing the devices the LED will flash as follows:- Pink - trying to connect Green - connected Red - connection failed When the device is closed and has succesfully connected to the system it will be in walktest mode for 10 minutes.
  • Page 25 Devices are supplied with the microwave adjustment potentiometer set at the mid- point. The microwave should be adjusted according the area to be protected, and great care should be taken to ensure the microwave cannot “see” beyond protected area. LED indication of the microwave pickup allows for accurate setting of the detection area.
  • Page 26 CD-W Microwave Coverage INS879EN-6 26/71...
  • Page 27: Variants

    2.0 Variants 2.1 CAPTURE P15-W INS879EN-6 27/71...
  • Page 28 INS879EN-6 28/71...
  • Page 29 G2 Coverage INS879EN-6 29/71...
  • Page 30 INS879EN-6 30/71...
  • Page 31 Pet Coverage (non-compliant with INCERT or EN50131-2-2 or INS879EN-6 31/71...
  • Page 32 EN50131-2-4) INS879EN-6 32/71...
  • Page 33 INS879EN-6 33/71...
  • Page 34 INS879EN-6 34/71...
  • Page 35: Capture Q20-W

    2.2 CAPTURE Q20-W INS879EN-6 35/71...
  • Page 36 INS879EN-6 36/71...
  • Page 37 G2 Coverage INS879EN-6 37/71...
  • Page 38 INS879EN-6 38/71...
  • Page 39 INS879EN-6 39/71...
  • Page 40 Pet Coverage (non-compliant with INCERT or EN50131-2-2 or EN50131-2-4) INS879EN-6 40/71...
  • Page 41 INS879EN-6 41/71...
  • Page 42 INS879EN-6 42/71...
  • Page 43: Capture D20-W

    2.3 CAPTURE D20-W INS879EN-6 43/71...
  • Page 44 INS879EN-6 44/71...
  • Page 45 G2 coverage INS879EN-6 45/71...
  • Page 46 INS879EN-6 46/71...
  • Page 47 Pet coverage (non-compliant with INCERT or EN50131-2-2 or EN50131-2-4) INS879EN-6 47/71...
  • Page 48 INS879EN-6 48/71...
  • Page 49: Capture Cq-W

    2.4 CAPTURE CQ-W INS879EN-6 49/71...
  • Page 50 INS879EN-6 50/71...
  • Page 51 INS879EN-6 51/71...
  • Page 52 INS879EN-6 52/71...
  • Page 53: Capture Cd-W

    DO NOT USE 2.5 CAPTURE CD-W INS879EN-6 53/71...
  • Page 54 INS879EN-6 54/71...
  • Page 55 INS879EN-6 55/71...
  • Page 56 INS879EN-6 56/71...
  • Page 57: Accessories

    Microwave DO NOT USE 3.0 Accessories INS879EN-6 57/71...
  • Page 58: Branding

    3.1 Branding Branding is available for wall mount devices from our website CLICK HERE consists of a printed insert and a clear cover which fits over the front of the device and holds the insert in place. Note: The cover should be removed before sliding the front of the device off for servicing or adjustment.
  • Page 59 INS879EN-6 59/71...
  • Page 60 INS879EN-6 60/71...
  • Page 61 INS879EN-6 61/71...
  • Page 62: Optional Wall Or Ceiling Brackets

    3.2 Optional wall or ceiling brackets Part Numbers Pack of 10 brackets AFU-0004 (not compliant with INCERT EN50131-2-2 and EN50131-2-4) Screws & Fixings To ensure maximum stability 2 screws should be used for either mounting option. Dependent on the mounting substrate, suitable fixings may be required. The size and type will depend on the choice of fixing screw.
  • Page 63 INS879EN-6 63/71...
  • Page 64 Wall mount installation INS879EN-6 64/71...
  • Page 65 INS879EN-6 65/71...
  • Page 66 INS879EN-6 66/71...
  • Page 67: Specifications

    4.0 Specifications P15-W, Q20-W, D20-W, CQ-W, CD- Specifications EN50131-2-2 (P15-W, Q20-W, CQ-W), EN50131-2-4 (D20-W, CD-W), EN50131-1, PD6662:2017 Grade 2 Class II P15-W, Q20-W, D20-W, CQ-W, CD-W 868.2 – 868.4MHz (GDAA-1000, GDBA-1000, GDDA-1000, GDCA-1000, GDEA-1000) Product Type & Frequency 866.2 – 866.4MHz (GDAA-3000, Band GDBA-3000, GDDA-3000, GDCA-3000, GDEA-3000)
  • Page 68 Transmitter Duty Cycle <1% Max RF Power 10mW Low Voltage Signal 2.85V Operating Voltage P15-W, Q20-W, CQ-W = 18mA D20-W, Maximum Current CD-W = 38mA P15-W, Q20-W, CQ-W = 21uA Quiescent Current D20-W, CD-W = 22uA Relative Humidity 0-95% non-condensing Operating Temperature -10°C to 55°...
  • Page 69: Legal Information

    When replacing the battery in the product, care should be taken to only use a battery with a similar or greater capacity. 5.0 Legal information 5.1 Supplier Texecom Ltd, Haslingden, Lancashire, BB4 4PW, UK. Made in England 5.2 WEEE Directive 2012/19/EU (WEEE Directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union.
  • Page 70: Maintenance

    Lifetime warranty. (excludes battery which is 24 months) As the CAPTURE P15-W, Q20-W, D20-W, CQ-W, CD-W is not a complete alarm system, but only a part thereof, Texecom cannot accept responsibility or liability for any damages whatsoever based on a claim that the CAPTURE P15-W, Q20-W, D20-W, CQ-W, CD- W failed to function correctly.
  • Page 71 Do not charge Always observe local regulaions when disposing of a battery Detector will transmit low battery warning when battery neeeds replacing Do not heat Do not short circuit Do not dissasemble Replace with battery type CR123 INS879EN-6 71/71...
