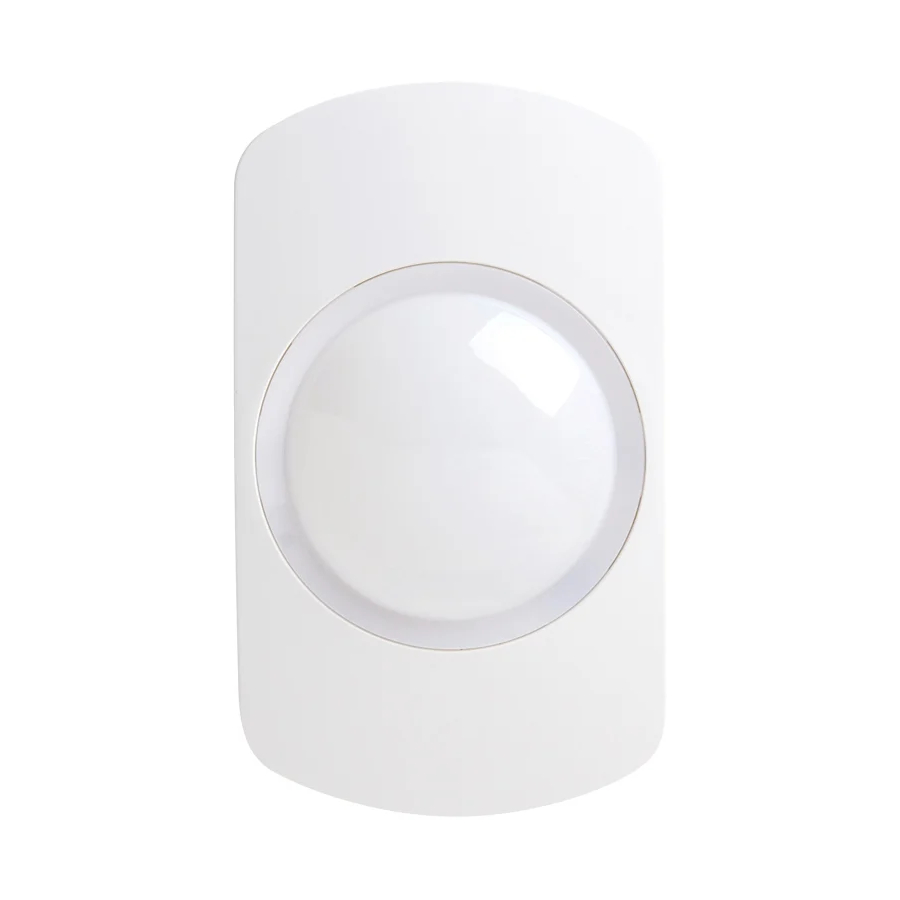

CAPTURE®
P15-W, Q20-W, D15-W, CQ-W,
CD-W
G2 Motion Detectors
INS879EN-2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Capture P15-W and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Texecom Capture P15-W

Summary of Contents for Texecom Capture P15-W

  • Page 1 CAPTURE® P15-W, Q20-W, D15-W, CQ-W, CD-W G2 Motion Detectors INS879EN-2...
  • Page 2 • Manual created 09-10-2020 • Changes made PCR01383...
  • Page 3 ......................1.3 Mode selection ........................1.4 Closing the device ......................1.5 Testing comissioning and LED indications ................. 2.0 Variants ..........................2.1 CAPTURE P15-W ........................ 2.2 CAPTURE Q20-W ........................ 2.3 CAPTURE D20-W ........................ 2.4 CAPTURE CQ-W ........................2.5 CAPTURE CD-W ........................
  • Page 4 1.0 Quick installation 1.1 Opening the device The devices are supplied in the unlocked position. If locked; Use a flat bladed terminal driver and turn the locking mechanism ¼ turn anti-clockwise. Slide the front down and towards you to remove. For ceiling mount devices remove the facia by turning it anti-clockwise, and then unlock as above.
  • Page 5 INS879EN-2 5/68...
  • Page 6 Ceiling facia removal INS879EN-2 6/68...
  • Page 7 INS879EN-2 7/68...
  • Page 8 1.2 Mounting & Learning Location Ensure you have the correct device for the intended application, and that it is sited correctly in the desired location. The field of view should be free from obstacles and any potential false alert causes. Devices should be mounted on stable internal surfaces and are NOT suitable for use externally.
  • Page 9 INS879EN-2 9/68...
  • Page 10 Ensure the devices field of view is not obstructed INS879EN-2 10/68...
  • Page 11 Install on a flat stable surface only INS879EN-2 11/68...
  • Page 12 Ensure surrounding structures are stable INS879EN-2 12/68...
  • Page 13 For internal use only Screws & Fixings A minimum of 2 opposing fixing holes should be used to ensure maximum stability. When corner mounting care should be taken to ensure the chassis is not twisted, if the corner is uneven then two fixings on the same side would be acceptable. Where removal from mounting detection is required you must ensure that the tamper fixing is opposite to at least one of the corner or wall fixings.
  • Page 14 Learning The device should be learned before placing in its final location. To learn the device to the system: Select an empty zone slot for the device and put the system into learn mode. To power up insert the battery. The LED will flash pink while it communicates to the receiver.
  • Page 15 Wall, ceiling & flat surface mount INS879EN-2 15/68...
  • Page 16 1.3 Mode selection G2 all models (Q20-W shown) This is the default state for optimum catch performance and false activation immunity. Switch 2 and the lens obscuration slider should be in the down position. P15-W 15m @ 90° compliant to EN50131-2-2, INCERT and PD6662 Q20-W 20m @ 90°...
  • Page 17 Pet Mode (P15-W, Q20-W & D20-W) When using Pet mode, switch 2 and the lens obscuration slider should both be placed in the UP position. P15-W 10mtr @ 90° up to 35kg Q20-W 12mtr @ 90° up to 20Kg pet immunity compliant to PD6662 & EN50131-2-2 INS879EN-2 17/68...
  • Page 18 Note: Never use CloakWise with PET mode. CloakWise™ D20-W & CD-W CloakWise is a proprietary detection algorithm, unique to Texecom, that can distinguish the presence of an intruder even if the unauthorised person attempts to mask or ‘cloak’ their presence. Utilising advanced signal processing techniques to both microwave and PIR channels, the CloakWise technology can recognise cloaking attempts and detect accordingly.
  • Page 19 Note: Never use CloakWise with PET or LOW mode Low mode ceiling mount CQ-W & CD-W only Low mode lowers the sensitivity of the device and provides greater false alarm immunity. Thorough walk testing across the entire protected area should be carried out to ensure catch performance is as expected.
  • Page 20 CQ-W and CD-W Slider Leave in the default position INS879EN-2 20/68...
  • Page 21 Do not use INS879EN-2 21/68...
  • Page 22 1.4 Closing the device INS879EN-2 22/68...
  • Page 23 INS879EN-2 23/68...
  • Page 24 Closing the device LED indications When closing the devices the LED will flash as follows:- Pink - trying to connect Green - connected Red - connection failed When the device is closed and has succesfully connected to the system it will be in walktest mode for 10 minutes.
  • Page 25 Devices are supplied with the microwave adjustment potentiometer set at the mid- point. The microwave should be adjusted according the area to be protected, and great care should be taken to ensure the microwave cannot “see” beyond protected area. LED indication of the microwave pickup allows for accurate setting of the detection area.
  • Page 26 CD-W Microwave Coverage INS879EN-2 26/68...
  • Page 27 2.0 Variants 2.1 CAPTURE P15-W INS879EN-2 27/68...
  • Page 28 INS879EN-2 28/68...
  • Page 29 G2 Coverage INS879EN-2 29/68...
  • Page 30 INS879EN-2 30/68...
  • Page 31 Pet Coverage INS879EN-2 31/68...
  • Page 32 INS879EN-2 32/68...
  • Page 33 INS879EN-2 33/68...
  • Page 34 INS879EN-2 34/68...
  • Page 35 2.2 CAPTURE Q20-W INS879EN-2 35/68...
  • Page 36 INS879EN-2 36/68...
  • Page 37 G2 Coverage INS879EN-2 37/68...
  • Page 38 INS879EN-2 38/68...
  • Page 39 Pet Coverage INS879EN-2 39/68...
  • Page 40 INS879EN-2 40/68...
  • Page 41 INS879EN-2 41/68...
  • Page 42 2.3 CAPTURE D20-W INS879EN-2 42/68...
  • Page 43 INS879EN-2 43/68...
  • Page 44 G2 coverage INS879EN-2 44/68...
  • Page 45 Pet coverage INS879EN-2 45/68...
  • Page 46 INS879EN-2 46/68...
  • Page 47 INS879EN-2 47/68...
  • Page 48 2.4 CAPTURE CQ-W INS879EN-2 48/68...
  • Page 49 INS879EN-2 49/68...
  • Page 50 INS879EN-2 50/68...
  • Page 51 DO NOT USE 2.5 CAPTURE CD-W INS879EN-2 51/68...
  • Page 52 INS879EN-2 52/68...
  • Page 53 INS879EN-2 53/68...
  • Page 54 Microwave DO NOT USE 3.0 Accessories INS879EN-2 54/68...
  • Page 55 3.1 Branding Branding is available for wall mount devices from our website CLICK HERE consists of a printed insert and a clear cover which fits over the front of the device and holds the insert in place. Note: The cover should be removed before sliding the front of the device off for servicing or adjustment.
  • Page 56 INS879EN-2 56/68...
  • Page 57 INS879EN-2 57/68...
  • Page 58 INS879EN-2 58/68...
  • Page 59 3.2 Optional wall or ceiling brackets Part Numbers Pack of 10 brackets AFU-0004 (not compliant with EN50131-2-2 and EN50131-2-4) Screws & Fixings To ensure maximum stability 2 screws should be used for either mounting option. Dependent on the mounting substrate, suitable fixings may be required. The size and type will depend on the choice of fixing screw.
  • Page 60 INS879EN-2 60/68...
  • Page 61 Wall mount installation INS879EN-2 61/68...
  • Page 62 INS879EN-2 62/68...
  • Page 63 INS879EN-2 63/68...
  • Page 64 4.0 Specifications P15-W, Q20-W, D20-W, CQ-W, CD- Specifications EN50131-2-2 (P15-W, Q20-W, CQ-W), EN50131-2-4 (D20-W, CD-W), EN50131-1, PD6662:2017 Grade 2 Class II P15-W, Q20-W, D20-W, CQ-W, CD-W 868.2 – 868.4MHz (GDAA-1000, GDBA-1000, GDDA-1000, GDCA-1000, GDEA-1000) Product Type & Frequency 866.2 – 866.4MHz (GDAA-3000, Band GDBA-3000, GDDA-3000, GDCA-3000, GDEA-3000)
  • Page 65 Transmitter Duty Cycle <1% Max RF Power 10mW Low Voltage Signal 2.8V Operating Voltage P15-W, Q20-W, CQ-W = 18mA D20-W, Maximum Current CD-W = 38mA P15-W, Q20-W, CQ-W = 15uA Quiescent Current D20-W, CD-W = 16uA Relative Humidity 0-95% non-condensing Operating Temperature -10°C to 55°...
  • Page 66 End of Life Voltage 2.20V 5.0 Legal information 5.1 Supplier Texecom Ltd, Haslingden, Lancashire, BB4 4PW, UK. Made in England 5.2 WEEE Directive 2012/19/EU (WEEE Directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. To recycle, return this product to your local supplier upon the purchase of equivalent new equipment, or dispose of it at designated collection points.
  • Page 67 Q20-W, D20-W, CQ-W, CD-W is not a complete alarm system, but only a part thereof, Texecom cannot accept responsibility or liability for any damages whatsoever based on a claim that the CAPTURE P15-W, Q20-W, D20-W, CQ-W, CD- W failed to function correctly. Due to our policy of continuous improvement Texecom reserves the right to change specification without prior notice.
  • Page 68 INS879EN-2 68/68...
